Produkte von Timberline

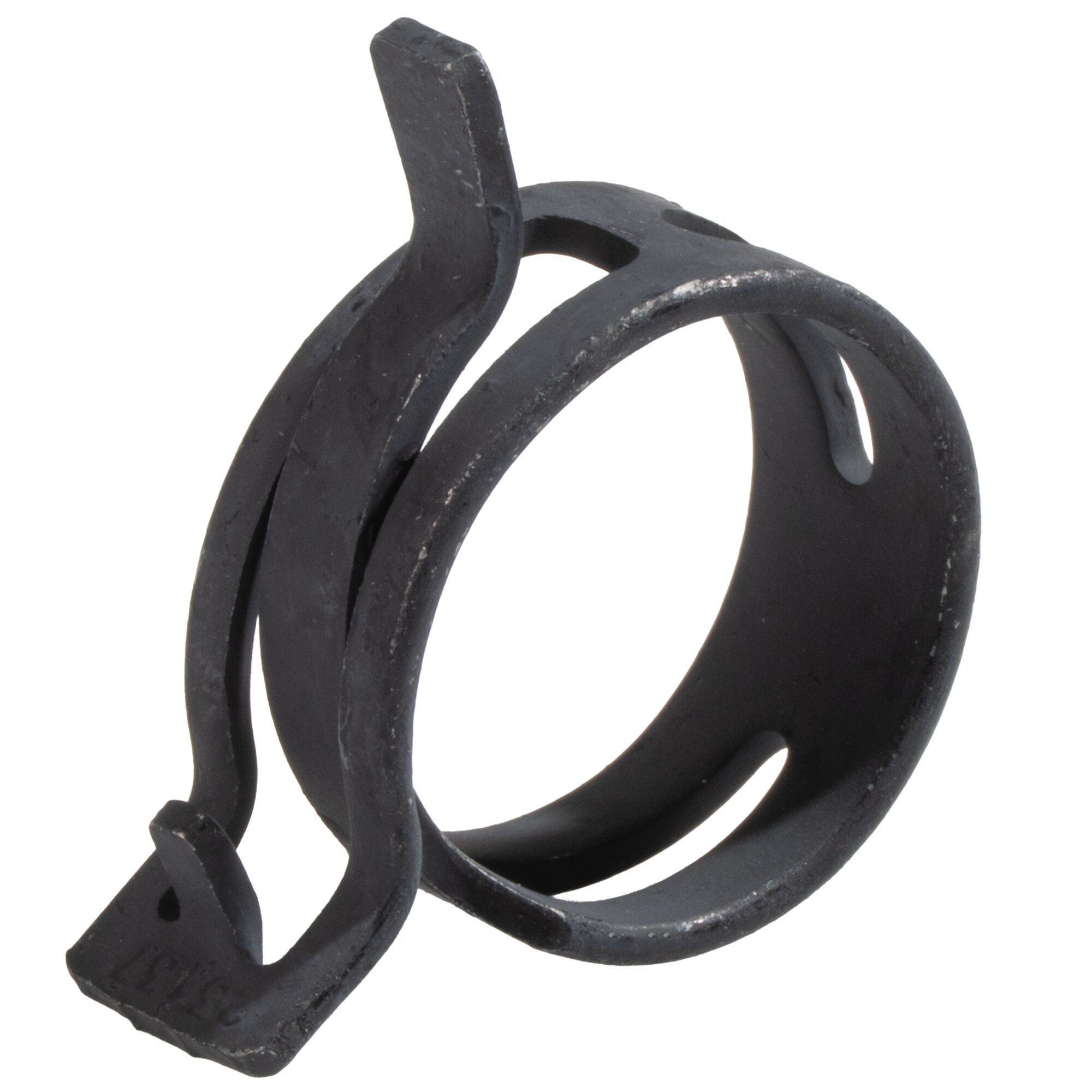

The 27 mm spring band clamp is a reliable hose fastener for Timberline heaters – offering a strong clamping force and a secure hold even with fluctuating temperatures. Suitable for hoses with a diameter of up to 27 mm.

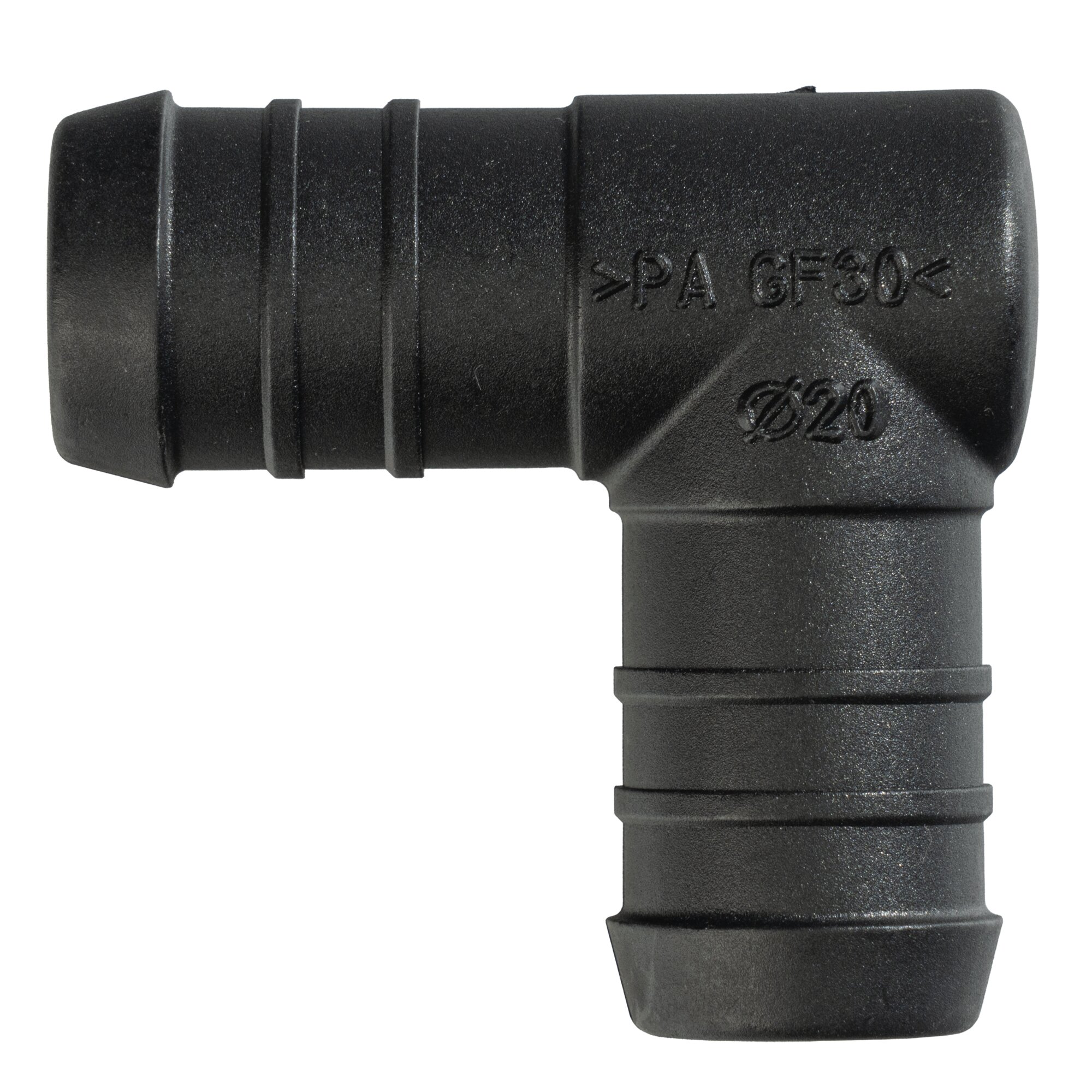

Robust Timberline elbow connector with a 20 mm outer diameter – suitable for Timberline heaters. For a secure connection.

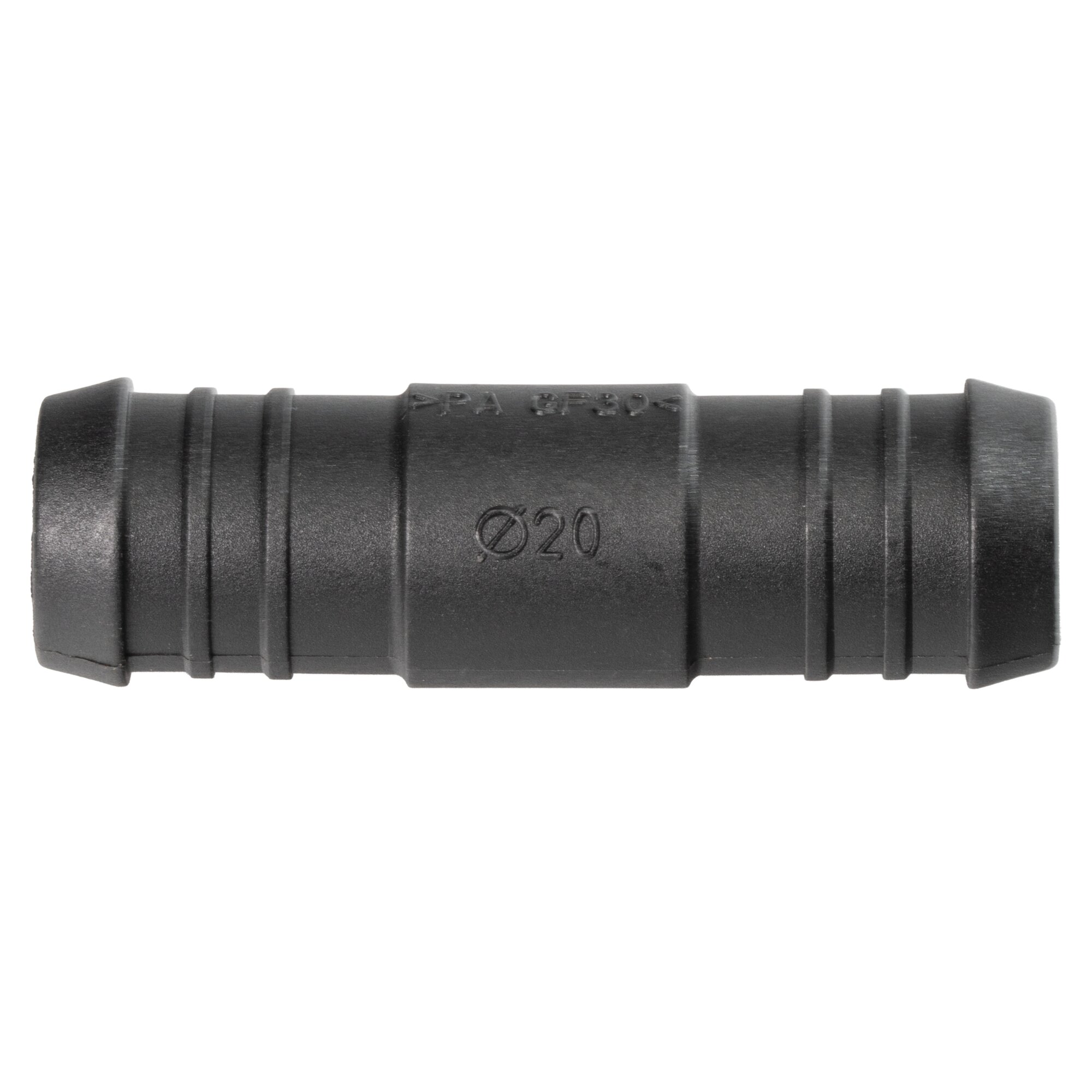

The 20 mm hose connector is a connecting element for Timberline heaters. Ideal for secure hose lines.

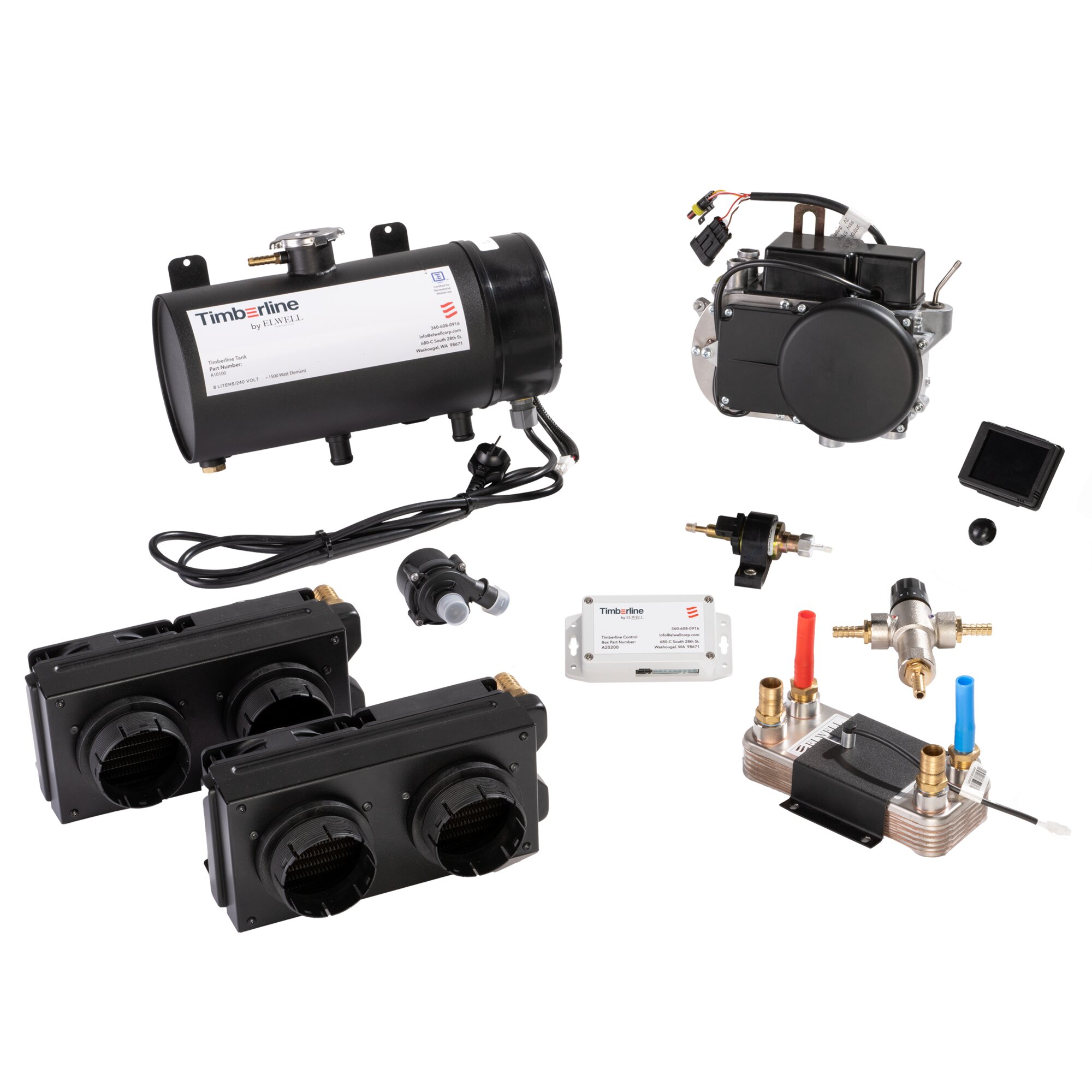

Timberline combines space heating and hot water preparation in a compact unit, providing reliable comfort for motorhomes and vans – all year round and in all conditions.
Technical features:
Two-in-one system: heating and hot water preparation in a single unit
No side wall cut-out required: flexible and space-saving installation
Continuous hot water preparation: instant hot water available at any time
Even heat distribution: comfortable temperatures throughout the vehicle
Operation at low temperatures: reliable even well below 0 °C
Altitude performance: functions up to 5000 m above sea level
Efficiency and control:
Energy consumption: < 4.5 A when using heating and hot water combined
Operation: intuitive touchscreen with clear menu navigation
CAN bus capable: integration into the onboard network possible
Operating modes:
Diesel and electric operation
Optional heat exchanger: engine preheating for safe starting in frost
Switchable summer/winter operation
Advantages at a glance:
Compact, low-maintenance system
High energy efficiency
Suitable for year-round use
Ideal for motorhomes and vans
Scope of delivery:
5 kW burner with intake hose, exhaust and bracket
Diesel pump with bracket, connections and cable
Control unit/touch panel
Timberline tank with 230 V 1.5 kW electric heating element
Circulation pump
Hot water heat exchanger incl. bracket and thermostat
System hoses including connectors and clamps
Control box with cable harness
Two boosters

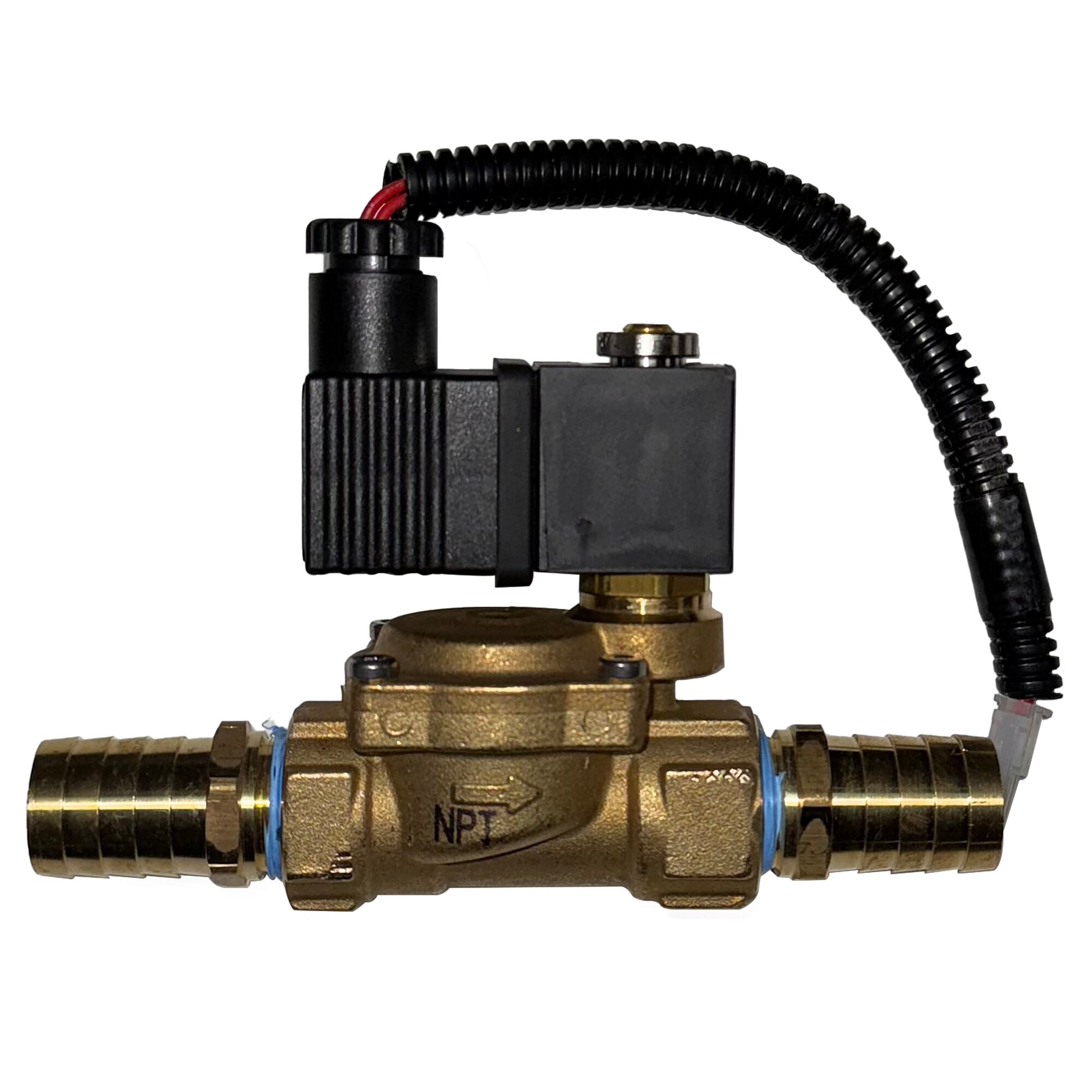

Magnetic valve suitable for the Modular Heating System 1.0. For switching from winter to summer operation.
Maße Länge:
2000 mm

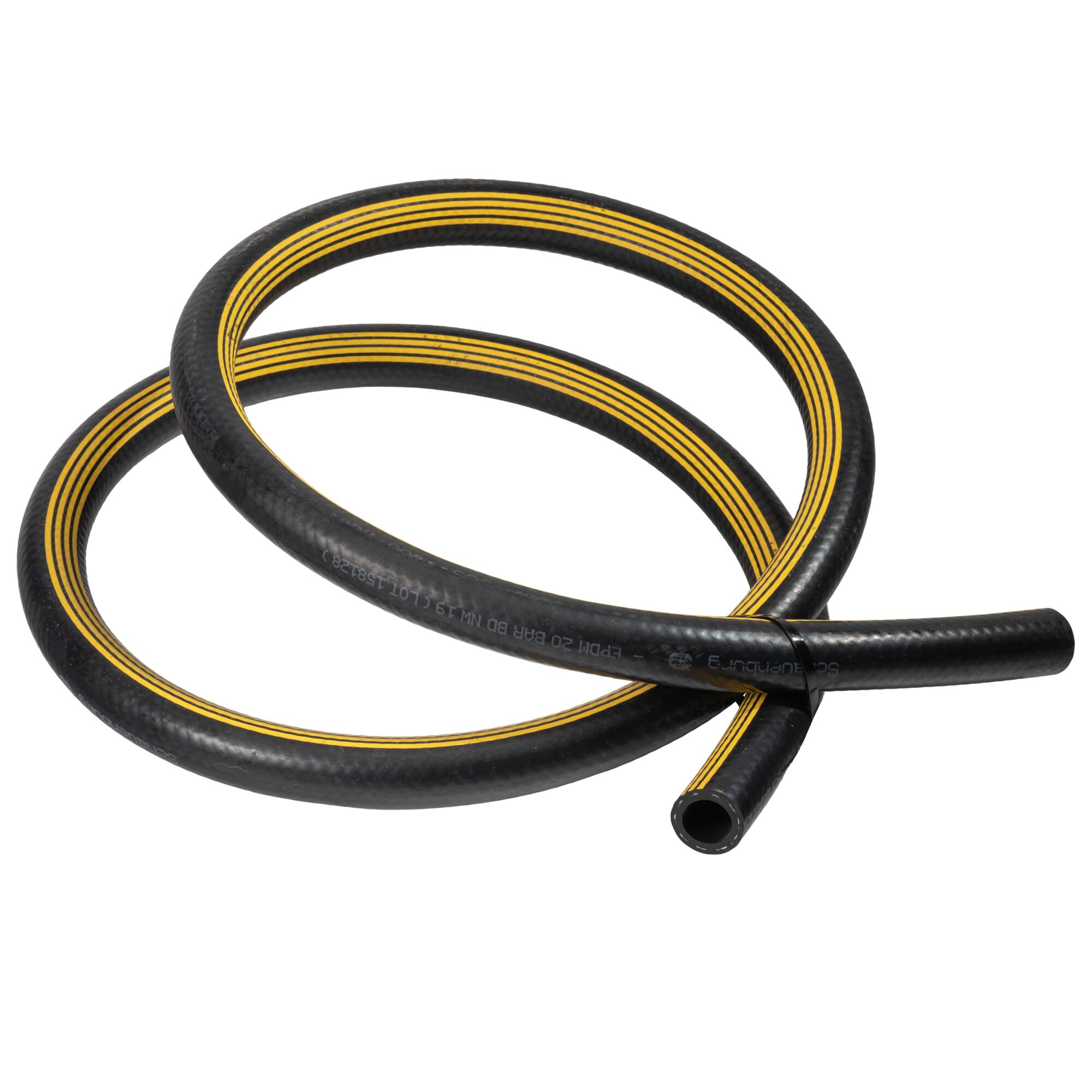

Coolant hose made of fabric-reinforced rubber, in various sizes for Timberline heaters. With an inner diameter of 20 mm and an outer diameter of 26.5 mm.
Valve for mixing service water up to the set temperature (temperature range 30 – 48 °C).

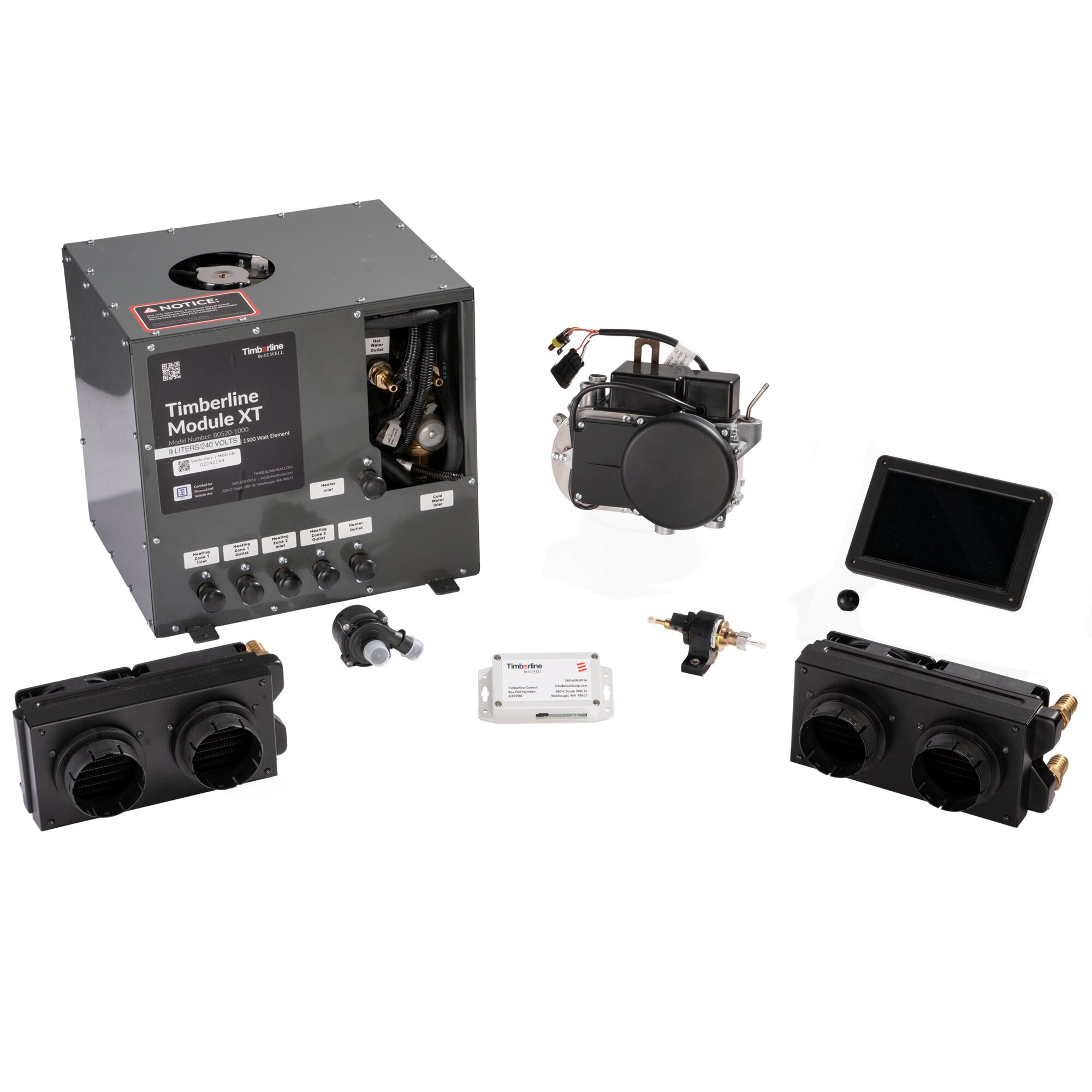

One of the biggest changes in Timberline 2.0 is the single-module installation of the system. This module features intelligent energy management that prioritises electricity for both heating and hot water. Timberline 2.0 has a larger footprint but allows for even easier installation, as it contains all the main components of the system in one place.
Scope of delivery:
5 kW burner
2 boosters
Control unit/touch panel
Integrated expansion vessel
230 V 1500 W electric heating element
Level switch
Integrated hot water heat exchanger
Pumps for the heating circuits

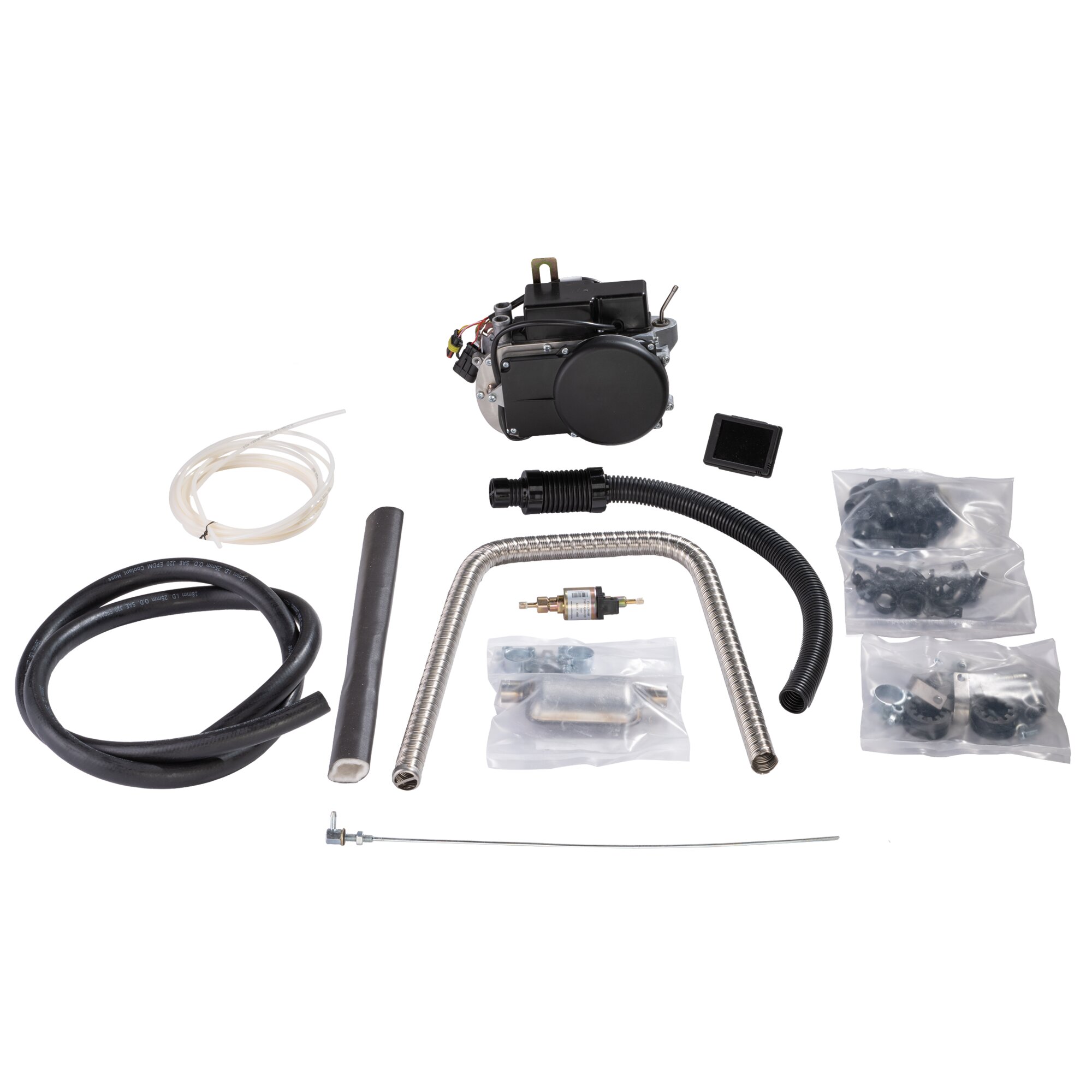

The Timberline Plus is a standalone diesel heating system with a burner and pump. It replaces or supplements existing heating systems and is connected directly to existing convectors and pipes. Control is conveniently managed via the touch control panel.
Scope of delivery: 5 kW burner with intake hose, exhaust, bracket; diesel pump with bracket, fittings and pipe; touch panel. Please check before purchase whether your heating system is suitable for an extension.
