For fresh and waste water tanks with O-ring seal. Nut and cable about 10 cm long with coupling. Can be used with all Calira switching/control panels with 4/5 measurement points such as Bord Control 506, Panel 334 and similar ones. Suitable for tanks up to an external height of 380 mm.
Variante:
Tankhöhe 12 – 24 cm
Measures the tank fill level capacitively, 0 – 2.3 V output signal, continuous measurement. Frost-resistant electronics (IP67), suitable for underground tanks. Insensitive to dirt, unaffected by overpressure.
Rubber measuring probe for waste water and waste tanks, with screw and washer from V2A, M5 thread, hole diameter of 9.5 mm for tank mounting.
For level measurement in 5 levels for fresh and waste water tanks. Unsuitable for fuel tanks. Suitable for tanks up to 380 mm external height. The level indicator is operated externally via a button, e.g. via Panel or Bord Control.
Variante:
Tankhöhe 15 – 50 cm
Measures the tank fill level capacitively, 0 – 2.3 V output signal, continuous measurement. Frost-resistant electronics (IP67), suitable for underground tanks. Insensitive to dirt, unaffected by overpressure.
The VOTRONIC waste tank level indicator provides precise level monitoring with a 3-colour LED bar (10 LEDs). It displays intermediate levels, supports safe planning of emptying stops and prevents overfilling. Additionally, it ensures reliable black water monitoring.
Installation dimensions W x H x D: 30 x 63 x 15 mm
For the installation of the SuperSense sensor from the outside through a 42 mm hole – without having to access the inside of the tank.

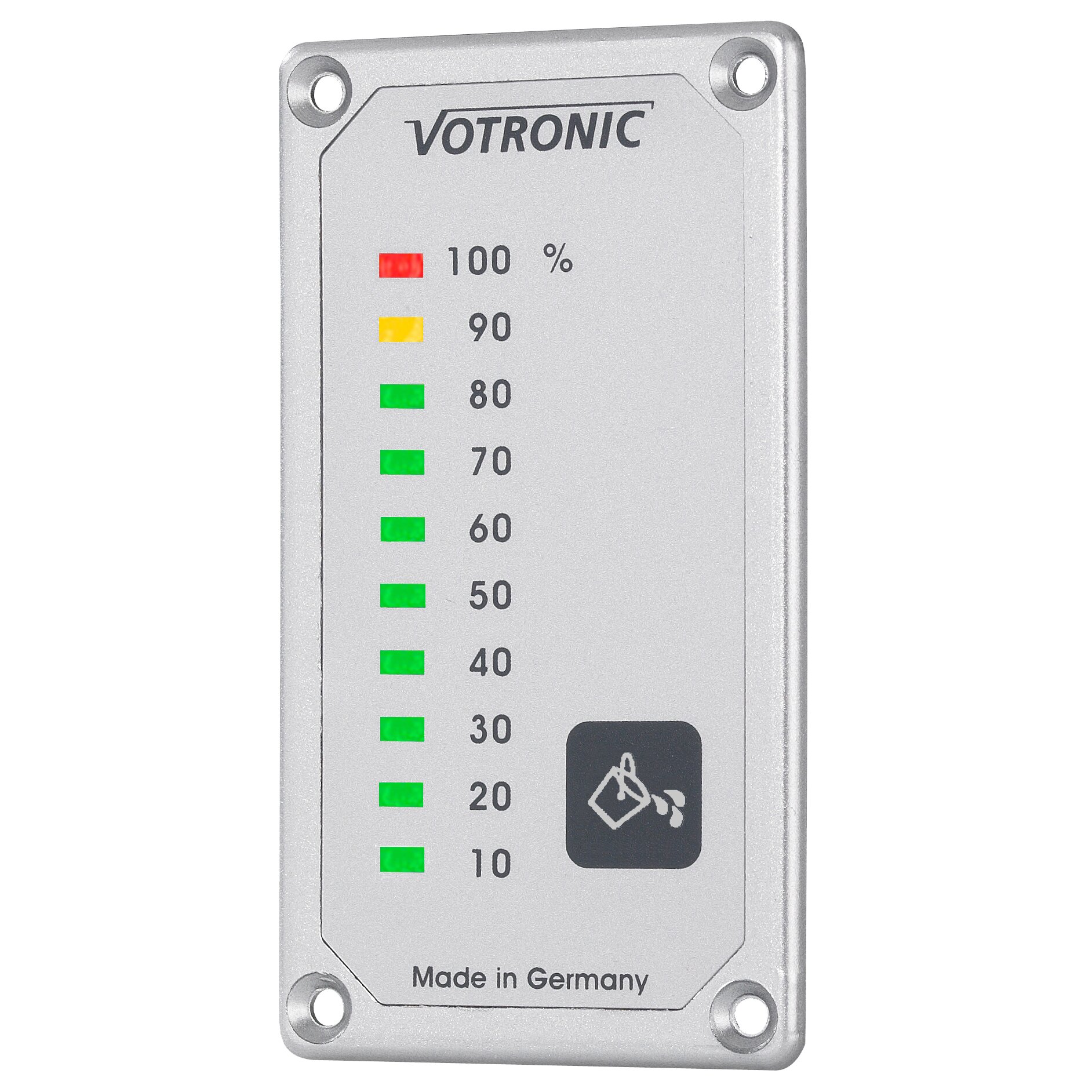

The VOTRONIC waste water tank level indicator allows for precise and convenient level monitoring. An illuminated bar with 10 LEDs displays the level in three colours, also showing intermediate levels. The indicator shows the current fill level, ensuring reliable monitoring of the waste water system.Installation dimensions W x H x D: 30 x 63 x 15 mm
