Manually adjustable, portable satellite antenna with tripod. Maxview Precision was especially developed for intuitive operation. Attention was directed to the assembly and disassembly as well as the adjustment of the pre-installed antenna. The installed sat finder simplifies the finding of satellites. One leg of the tripod is tagged with a south-direction mark that only needs to be turned to the south. The rotation limit on the tripod only permits a search angle of approx. 30°, in this segment is the desired satellite. The tripod is equipped with a level indicator, thus safe standing on uneven grounds is possible. The included 10 m coax cable is equipped with multi-strand core – hence, it is very flexible and less likely to tangle. Includes 2 carrying bags for storage. To secure the hinged LNB arm when transporting, the Precision is equipped with a magnetic LNB-arm lock.Simple Assembly:Direct the marked tripod leg towards southMount the dishAdjust elevationSelect a satellite on the receiverScan for satellitesDimensions and weight:Precision 55: W 100 x H 156 cm / 6.1 kgPrecision 65: W 100 x H 164 cm / 6.6 kgPrecision 75: W 100 x H 172 cm / 7 kgScope of delivery:Satellite antenna with satellite tripod, universal LNB with low noise factor, transportation bags for tripod and antenna, 10 m coaxial connection cable.In Switzerland and the Netherlands, the system requires a duo LNB. For this version, this equipment is available as a special item.

Based on the easy to use Maxview Precision, the handling has been simplified again. The new satellite identification module is connected between receiver and antenna and additionally to the audio output of the receiver or TV set. Integrated into the antenna beside the sat-finder, an identification-LED shows when the selected satellite is detected. Maxview-Precision-ID works with any receiver featuring an audio output.Scope of delivery:As for Precision Sat-Kit, additionally with Sat-ID module for connection between receiver and antenna.

Mobile digital satellite system with extensive accessories. It is kept in a sturdy transport and storage case. The entire set consists of an offset dish, 41 x 38 cm, with detachable LNB arm and universal LNB, 10 m coaxial cable with F connectors. The suction foot, which is also included in delivery, guarantees stable and firm installation on any even surface. Extensive equipment for wall and table installation is included in delivery if it is not possible to find an even surface. A mast holder for mounting to the satellite tripod is included. Dimensions case W 45 x H 47 x D 12 cm, weight 3.9 kg.

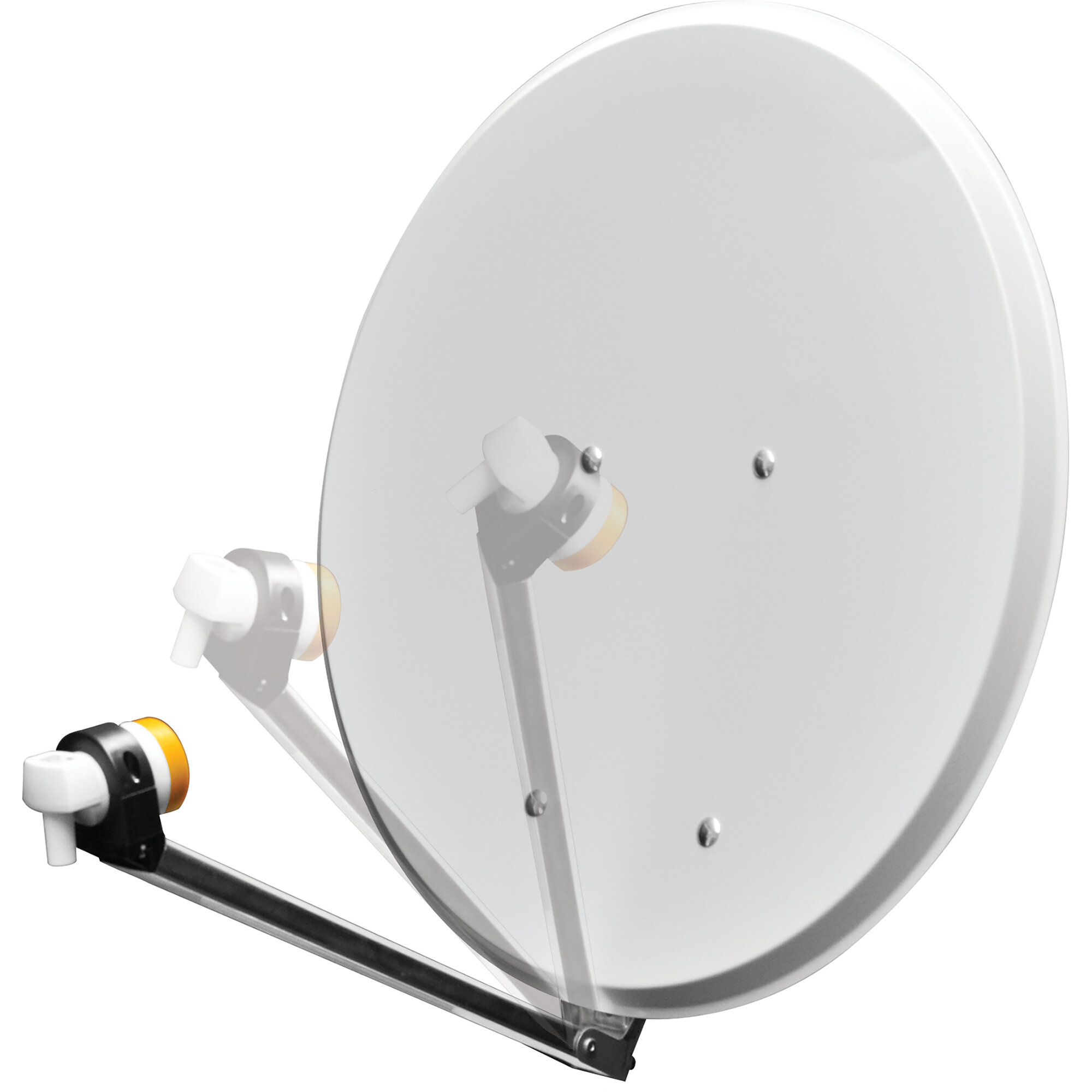

All-in-one set consisting of satellite dish (65 cm diameter) with a folding LNB arm, satellite tripod with a rotating mast end, HD receiver and Easy Find LNB with an integrated satellite finder with colour LCD (colour change Red – Yellow – Green). Kept in a high-quality, robust carrying bag.

ø 57 cm, aluminium coated dish with universal mast bracket, exact scale for easy positioning. The LNB are is detachable by loosening 2 nuts; with universal LNB and 10 m coaxial connection cable, weight 3.1 kg.

Based on the easy to use Maxview Precision, the handling has been simplified again. The new satellite identification module is connected between receiver and antenna and additionally to the audio output of the receiver or TV set. Integrated into the antenna beside the sat-finder, an identification-LED shows when the selected satellite is detected. Maxview-Precision-ID works with any receiver featuring an audio output.Scope of delivery:As for Precision Sat-Kit, additionally with Sat-ID module for connection between receiver and antenna.

Manually adjustable, portable satellite antenna with tripod. Maxview Precision was especially developed for intuitive operation. Attention was directed to the assembly and disassembly as well as the adjustment of the pre-installed antenna. The installed sat finder simplifies the finding of satellites. One leg of the tripod is tagged with a south-direction mark that only needs to be turned to the south. The rotation limit on the tripod only permits a search angle of approx. 30°, in this segment is the desired satellite. The tripod is equipped with a level indicator, thus safe standing on uneven grounds is possible. The included 10 m coax cable is equipped with multi-strand core – hence, it is very flexible and less likely to tangle. Includes 2 carrying bags for storage. To secure the hinged LNB arm when transporting, the Precision is equipped with a magnetic LNB-arm lock.Simple Assembly:Direct the marked tripod leg towards southMount the dishAdjust elevationSelect a satellite on the receiverScan for satellitesDimensions and weight:Precision 55: W 100 x H 156 cm / 6.1 kgPrecision 65: W 100 x H 164 cm / 6.6 kgPrecision 75: W 100 x H 172 cm / 7 kgScope of delivery:Satellite antenna with satellite tripod, universal LNB with low noise factor, transportation bags for tripod and antenna, 10 m coaxial connection cable.In Switzerland and the Netherlands, the system requires a duo LNB. For this version, this equipment is available as a special item.

With this antenna set a low-priced and space-saving set was created as an alternative to the fully automatic satellite system. Perfect, if you have no satellite reception directly at the vehicle, e.g. if you are shaded by trees and you want to place the system in some distance to the vehicle. The interaction of the supplied components with the revised "CAPcontrol" app (Android and iOS) is optimally coordinated. As soon as all components are set up and connected, the antenna is aligned in 60 seconds.Functionality:The heart of the antenna set is the CAP converter, which is connected between the flat antenna and the TV set. Together with the USB WLAN adapter UFZ 131, these two components activate functions never seen before.Language wizard during setting11 satellites presetAfter installation of the "CAPcontrol" app on your smartphone/tablet the simple alignment can start Scope of delivery:Flat antenna BAS 66 (with twin LNB), tripod, adapter joint, CAP converter (dimensions W 22 x D 17 x H 3.5 cm), USB-WLAN adapter UFZ 131, 15 m coaxial cable, inclinometer HDZ 66 and carrying bags for tripod and antenna.The app "CAPcontrol" (available for Android and iOS) in connection with the CAP converter and the USB WiFi adapter UFZ 132 gives acoustic and visual direction how the satellite antenna has to be aligned: first, the right elevation is adjusted ("Elevation", steps 1 – 3), then the inclination ("Azimut", steps 4 – 5).

The offset parabolic antenna KEA 650 consists of a powder-coated mirror (ø 65 cm) made of aluminium and is equipped with a foldable LNB support arm also made of aluminium. Mast and locking clamps made of galvanised sheet steel are completely pre-assembled at the rear. Weight 4.5 kg, LNB is not included in delivery.

The antenna set for manual satellite reception consists of flat antenna, satellite tripod, adapter joint, 15 m coaxial cable and carrying bag. The adjustment and satellite search is done with the help of a compass and spirit level app (depending on the smartphone and operating system, appropriate apps are already installed). Dimensions flat antenna W 50 x D 50 x H 12.5 cm, weight 6.5 kg

The offset parabolic antenna KEA 650 consists of a powder-coated mirror (ø 65 cm) made of aluminium and is equipped with a foldable LNB support arm also made of aluminium. Mast and locking clamps made of galvanised sheet steel are completely pre-assembled at the rear. Weight 4.5 kg, LNB is not included in delivery.

With the precisely formed sat mirror with a diameter of 65 cm, even at the edge of the footprint, perfect pictures can be received. To space-saving storage, the LNB arm is simply folded up. To adjust the mirror, no tools are needed, as wing screws have been used everywhere. Complete delivery with universal-LNB, 10 m connection cable, map and adjusting aid; weight: approx. 4.1 kg.

Version without receiver and Easy Find LNB, but with Sat-Finder and Sat-Compass.

Incl. receiver HD stick 310 V3 with 12 V connection cable. Also available separately (item no. 72 388, catalogue page 856).Technical data:Power supply 12 / 230 V, 4000 channels, video text, 2 USB ports, HD receiver, which thanks to its compact form (dimensions W 10.8 x H 1.8 x D 6.5 cm, weight 68 g) can be placed flexibly, e.g. behind a TV; with external display for channel display.
