Installation Kit Power Management with Cable

Efficient energy supply for on the go

The Clesana power management system enables quick and easy electrical installation and ensures even greater autonomy in mobile use. This innovative solution combines the functions of a relay and a DC/DC charger, ensuring that the Clesana C1 is optimally supplied.

Thanks to the pre-assembled cables, the connection between the Clesana C1 and a support battery can be established effortlessly. The control input regulates the current flow to the Clesana C1, while the power management supplies the support battery with 2 A charging current in standby mode. Control is achieved via a 12 V permanent positive cable, ensuring reduced power consumption. Should the RV battery fail, the Clesana C1 remains operational via the support battery.

Manufactured in Germany, the Clesana power management system impresses with the highest quality and reliability.

Advantages:

• Easy electrical installation through pre-assembled cables
• Autonomous power supply for greater independence
• Efficient energy management with optimised charging function

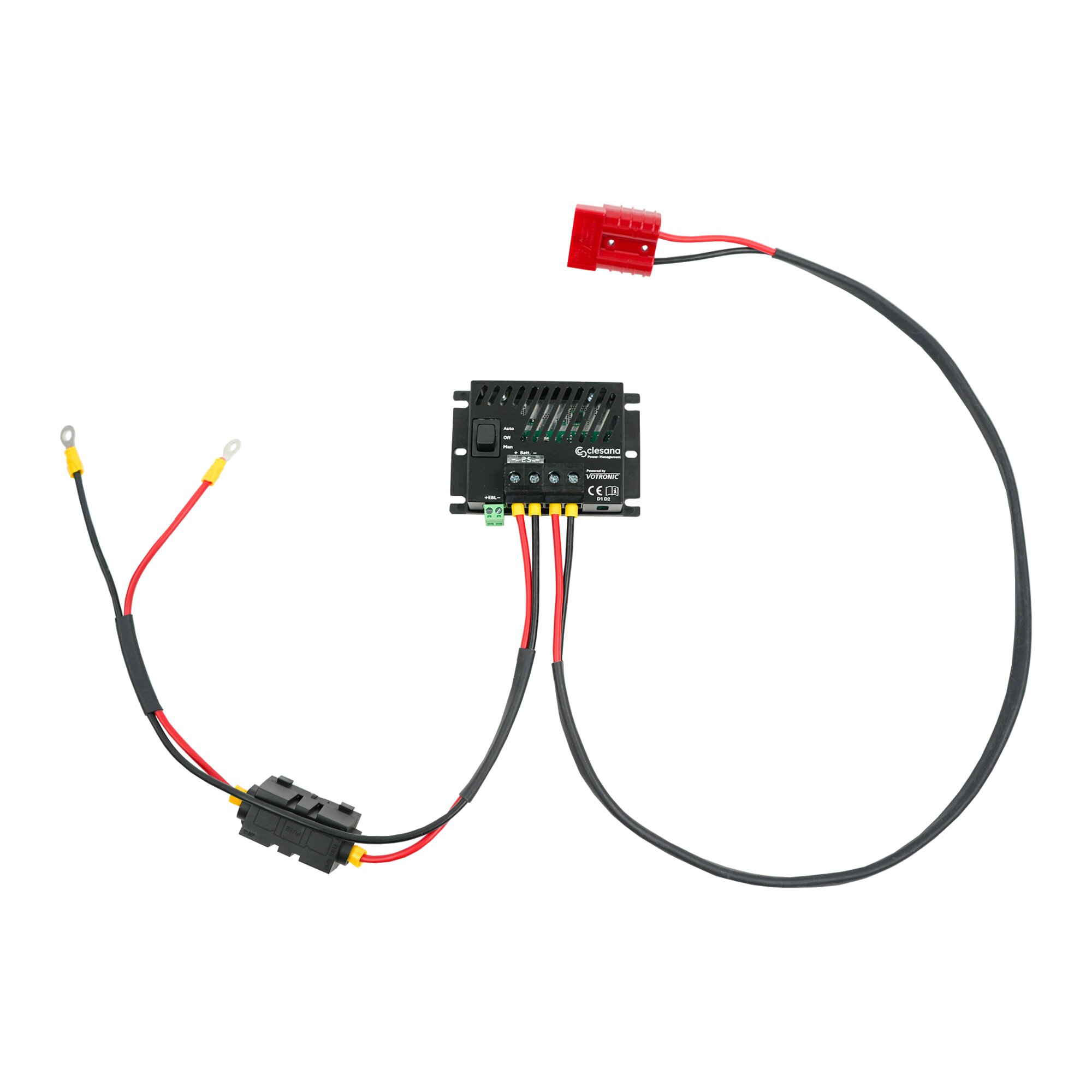

Scope of delivery:

• Clesana power management by Votronic

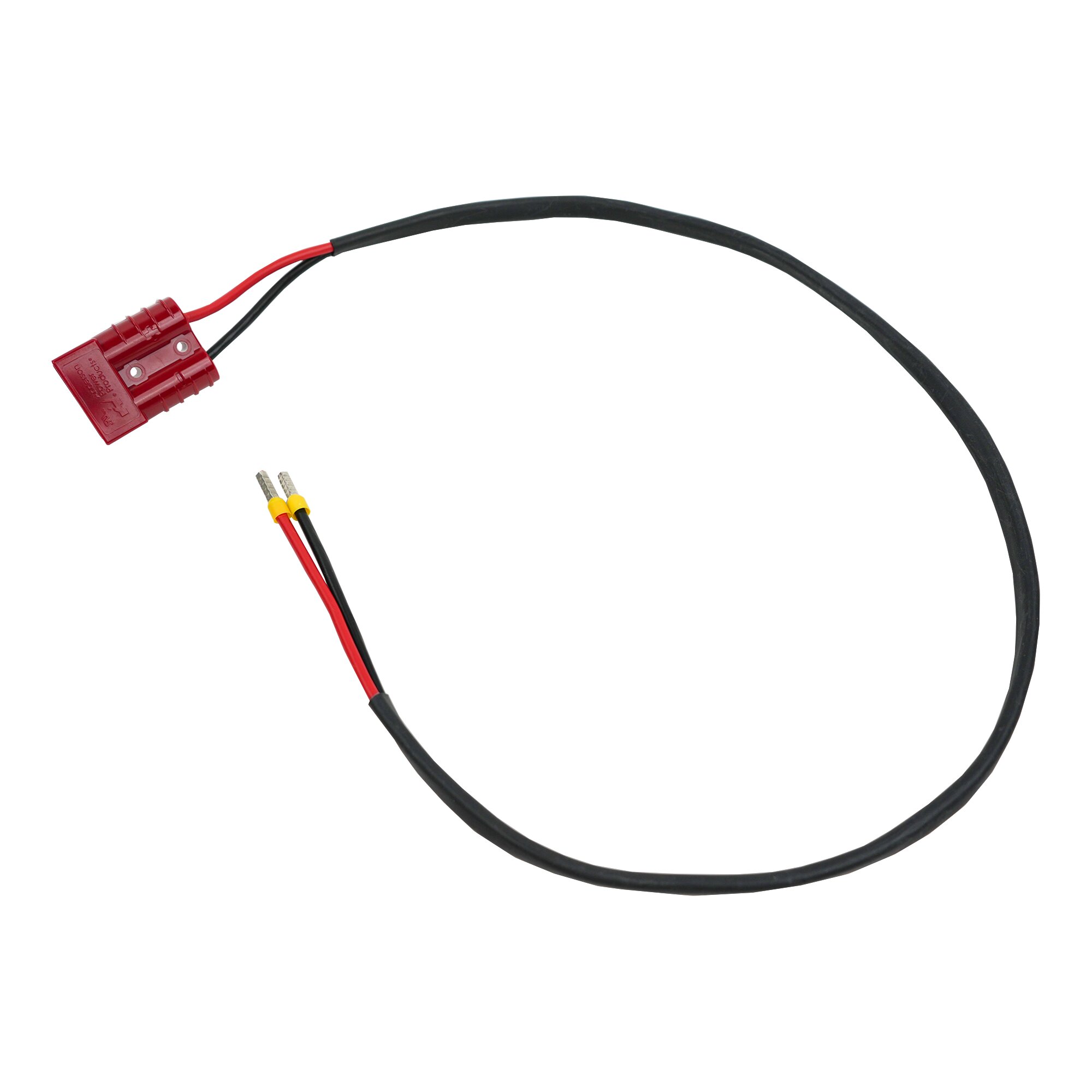

• Cable set power management to Clesana C1

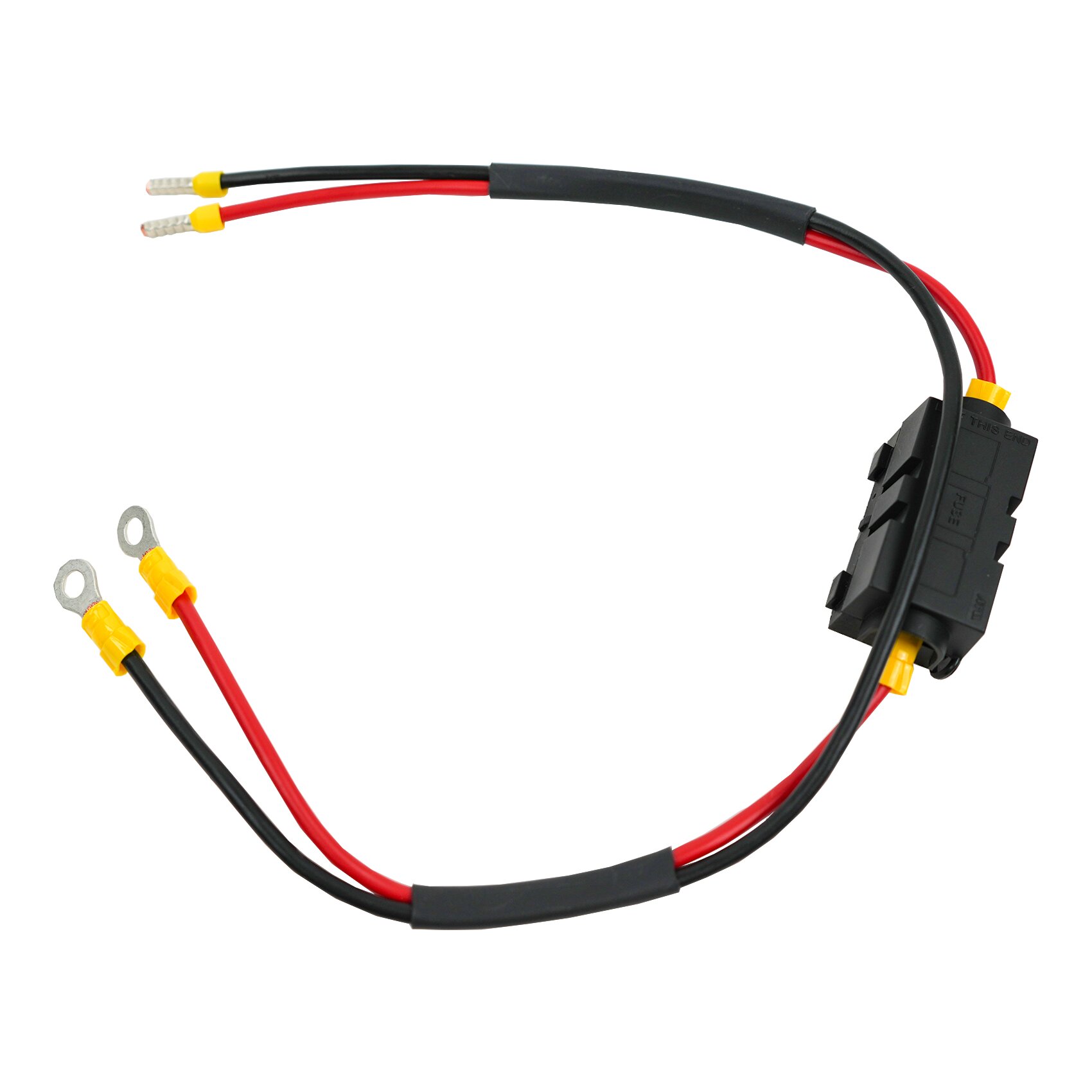

• Cable set power management to support battery

Not included in the scope of delivery: support battery
