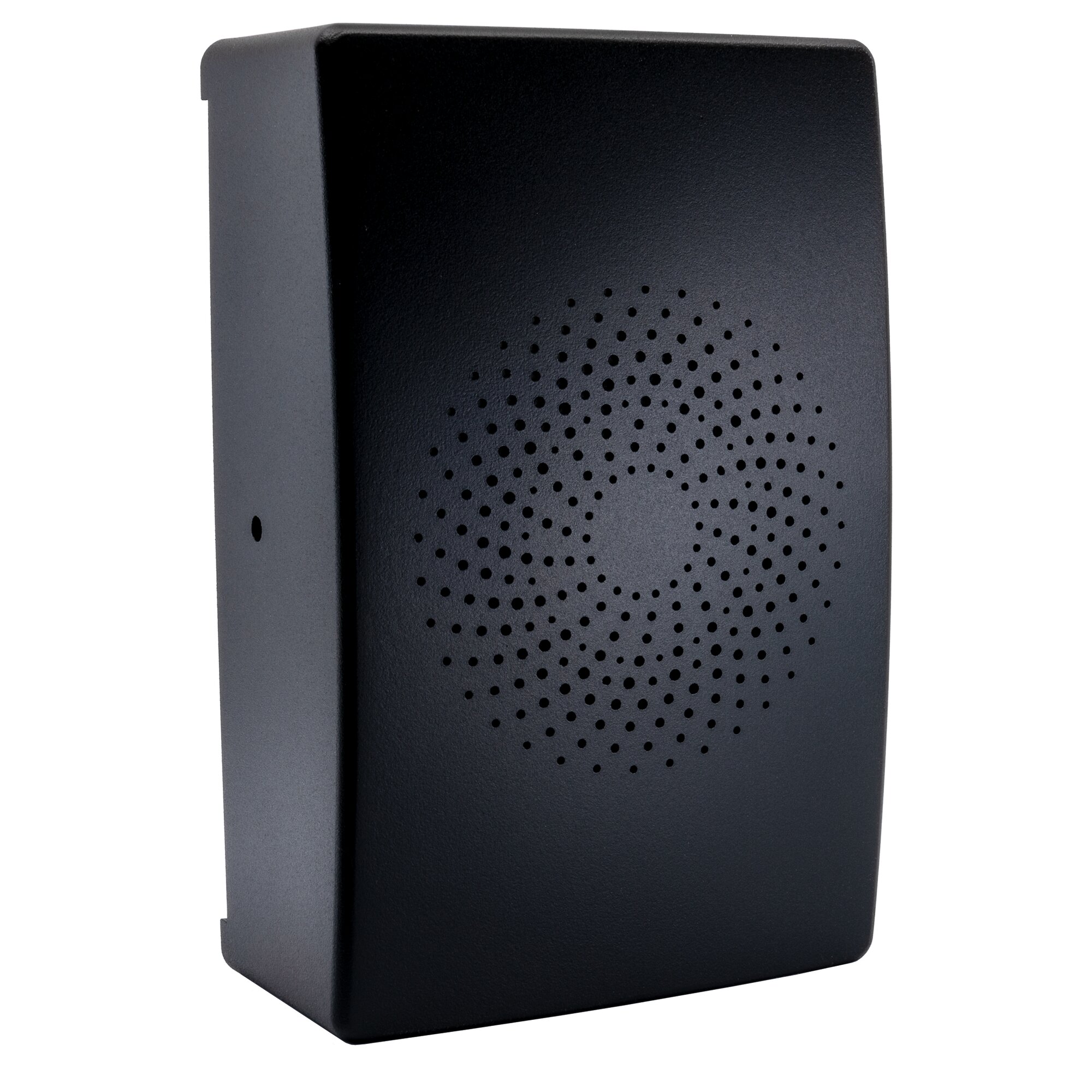

Gas Detection System G.A.S.-pro III, knockout gas/liquid gas

The G.A.S.-pro III is available in 2 basic setups: one with an integrated liquid/knockout gas sensor and one with an integrated CO detector. Both versions can be combined with an additional gas or CO detector. The equipment is technically unique in the field of vehicle gas warning devices: its power consumption is reduced to a minimum of 26 mA with a liquid gas/knockout gas sensor and to just 9 mA with a CO gas sensor. The internal siren sounds at a penetrating 94 dB, while an integrated humidity sensor optimises the already precise measurement in the event of high humidity in the vehicle or breathing air in the immediate vicinity of the sensor. Precise temperature adjustment is mandatory. In addition, an alcohol filter function eliminates false alarms caused by alcohol in the air. Thanks to the integrated radio unit, the G.A.S.-pro III communicates with the WiPro III alarm system without additional wiring.

G.A.S.-pro III at a glance

• Gas detection according to DIN EN 50194-2
• Gas detection according to DIN EN 50291-2 (CO version)
• CI-Bus compatible
• Detects propane and butane, narcotic gases or carbon monoxide (depending on the version)
• Permanent compensation of temperature and humidity
• Regular self-test to check functionality
• Auto Sense input
• LED display for both sensors


Technical data

Current consumption: 9 mA (CO)/26 mA (liquid/knockout gas); sensor inputs: 1 internal, 1 external; sensitivity: 50 ppm (CO) 700/1400 ppm (butane); sound pressure: 94 dB (internal siren); temperature range: -20 °C – +60 °C
