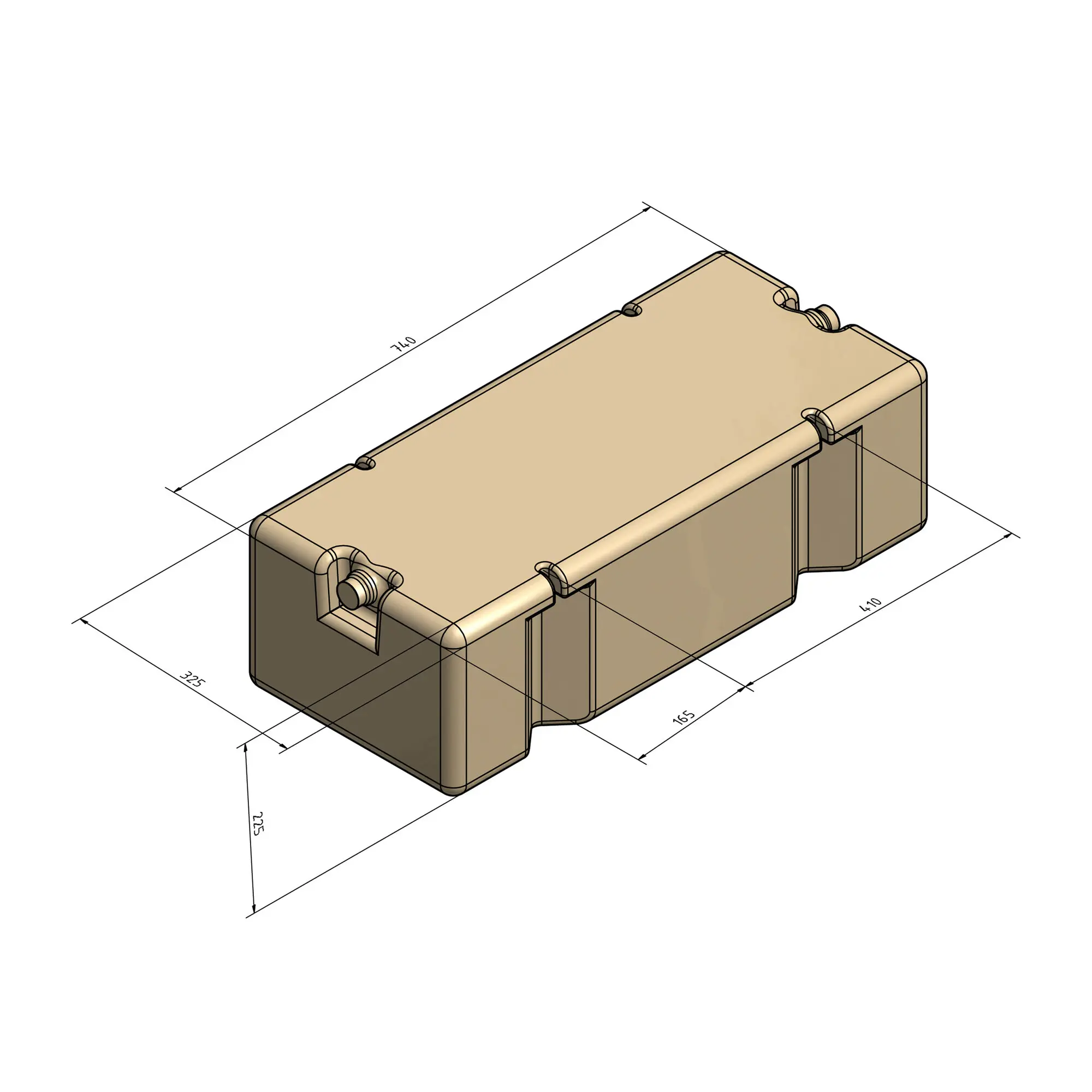

Fresh Water Tank 40

Four mounting reinforcements, cleaning opening ø 15.0 cm. Two filling nozzles ø 40 mm.

Nozzle ø 40 mm.

Installation kit for a fresh water tank display for all canister types and fixed tanks with DIN 96 opening. Consisting of a rod tank probe with cuttable rods that can be adjusted to the correct tank or canister height, a 12 m connection cable and a level indicator that can be installed in the vehicle wherever you want it. Installation and operating instructions are included. All parts are delivered ready for connection, no further assembly is necessary.Filling level displayOperating voltage: 12 V DC (9 V – 16 V)Current consumption: off: 0 mA; on: 35 mA, 12 VInstallation dimension/depth (W x H): 29/14 x 62 mmWater level sensorTank opening: 80 mmRod length: max. 370 mm (can be adjusted to tank height)Cable length: 12 m

Suitable for use as a waste water tank: fits under any caravan or motorhome (suitable sewage connection 300/010-6).Suitable for use as a fresh water tank: fits into any boot. Incl. pull-out transport handle (can be extended up to 810 mm). Easy to fill due to 3/4" AG filler neck. Easy to empty and clean due to large opening (ø 80 mm) DIN 96. Easy to use with submersible pump (suitable lid with pump connection consisting of 300/081 and 300/082). Any DIN 96 lid can be used.

Ideal for camping and leisure. Can be carried along in any storage space. With pull-out transport handle (up to 810 mm long). Easy to lift thanks to folding manoeuvring handle. Easy to fill and empty (DIN 96). Incl. DIN 96 wrench. Easy to connect to the waste water system via hose.
