Central Light Control NODE Ambient MultiWhite

As the "brain" of the REVOTION system, the control unit wirelessly connects up to 25 modules (NODES) and up to three end devices locally – just one power connection is sufficient. It is suitable for 12 V and 24 V systems and serves as a hub/bridge (once per vehicle). With an integrated SIM card, all functions can be accessed via LTE-M. Without an internet connection, control is possible locally via Bluetooth. The built-in GPS allows for precise tracking and position monitoring.

For switching devices up to 20 A on and off. With fuse, measuring shunt and control via app/display. A physical switch can also be connected. One device per NODE. Suitable for 12 V and 24 V.

Measures the fill levels of the tanks in your vehicle and displays them continuously in per cent. Up to two tank sensors can be connected per NODE Level. Compatible with 12 V and 24 V systems.

Measures temperatures in devices, outdoors or underwater. Up to two waterproof sensors can be used per NODE. Monitoring via app. Easy to set up. For 12 V and 24 V systems.

For LEDs (RGB, RGB-W, White) with intuitive control. One light zone per NODE Ambient, can be combined with more NODE Ambients. Easy installation and app configuration, 5 A fuse, for 12 V and 24 V.

The battery computer for precise monitoring of batteries calculates the charge level and monitors current flows from consumers and generators. With 5 freely selectable, combinable channels (60 A each, max. 200 A in total), each of which measures the current individually. You receive notifications or warnings when limits are exceeded or undershot and the battery is empty or the charging process is complete. One NODE Battery per battery (bank). Suitable for 12 V and 24 V systems.

The temperature sensor for the NODE Temp can simply be connected to the WAGO terminals of the NODE Temp (3 contact points for connecting the sensor cables: V+, Temp and GND).

Interface for the integration of CI-Bus, CAN-Bus and UART devices. Easy installation. It integrates e.g. heating or air conditioning into the REVOTION system. Nominal voltage: 6 – 36 V;

Digital switch for controlling movable devices such as height-adjustable beds, awnings or steps via an app or physical switch. Switching current up to 20 A (short-term) or 10 A (continuous operation).

The measuring shunt for high currents up to 500 A allows for the integration of, for example, inverters into the system, independent of the manufacturer and compatible with various types of batteries. The battery computer monitors precisely and is ideal for applications over 3 kW. It can be linked with additional NODE Batteries. If limits are exceeded, the system warns via push notification of a low battery. It also informs, for example, that the charging process is complete.

Connection cable between Truma CP+ CI and the NODE Connect. The power cable of the CP+ is connected to the adapter cable, so that the NODE is supplied with power directly and no additional cables are required.

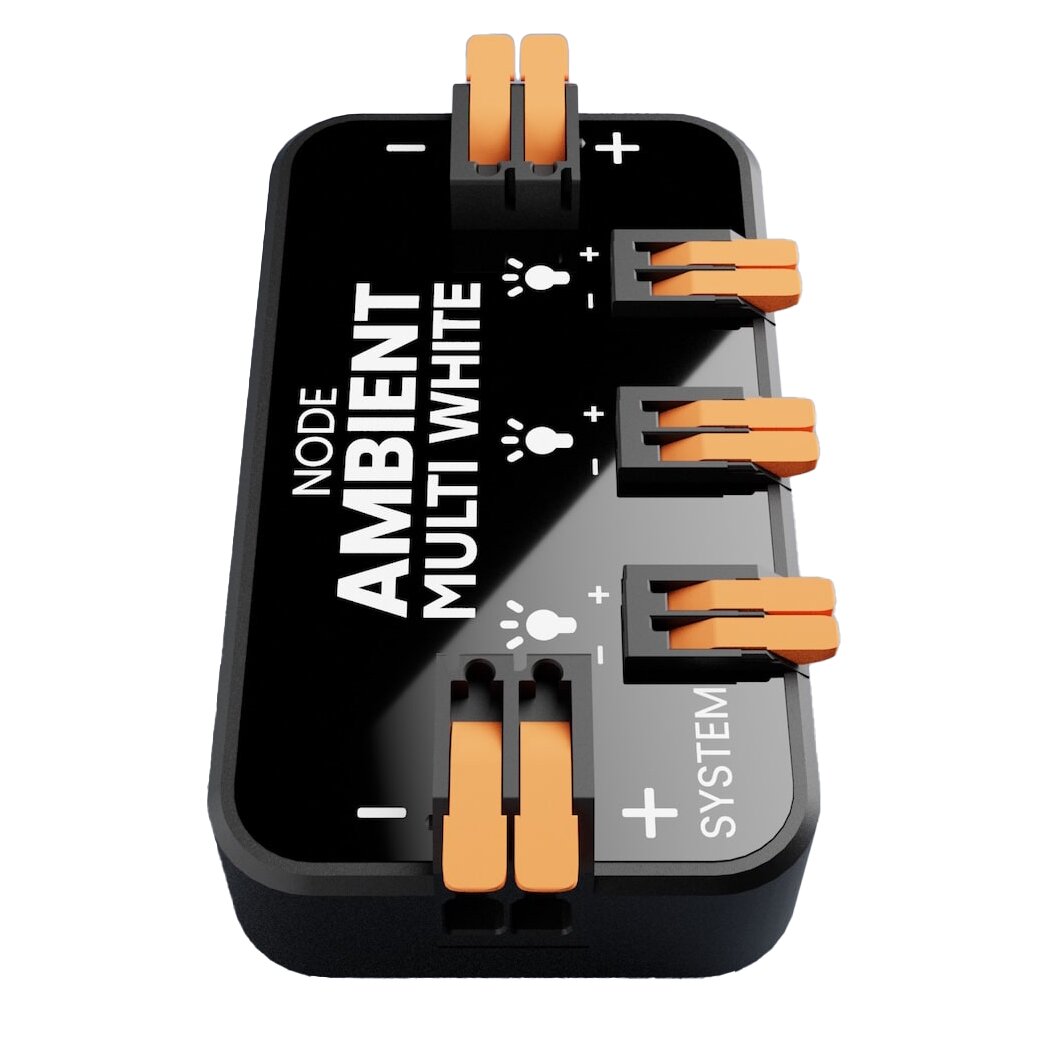

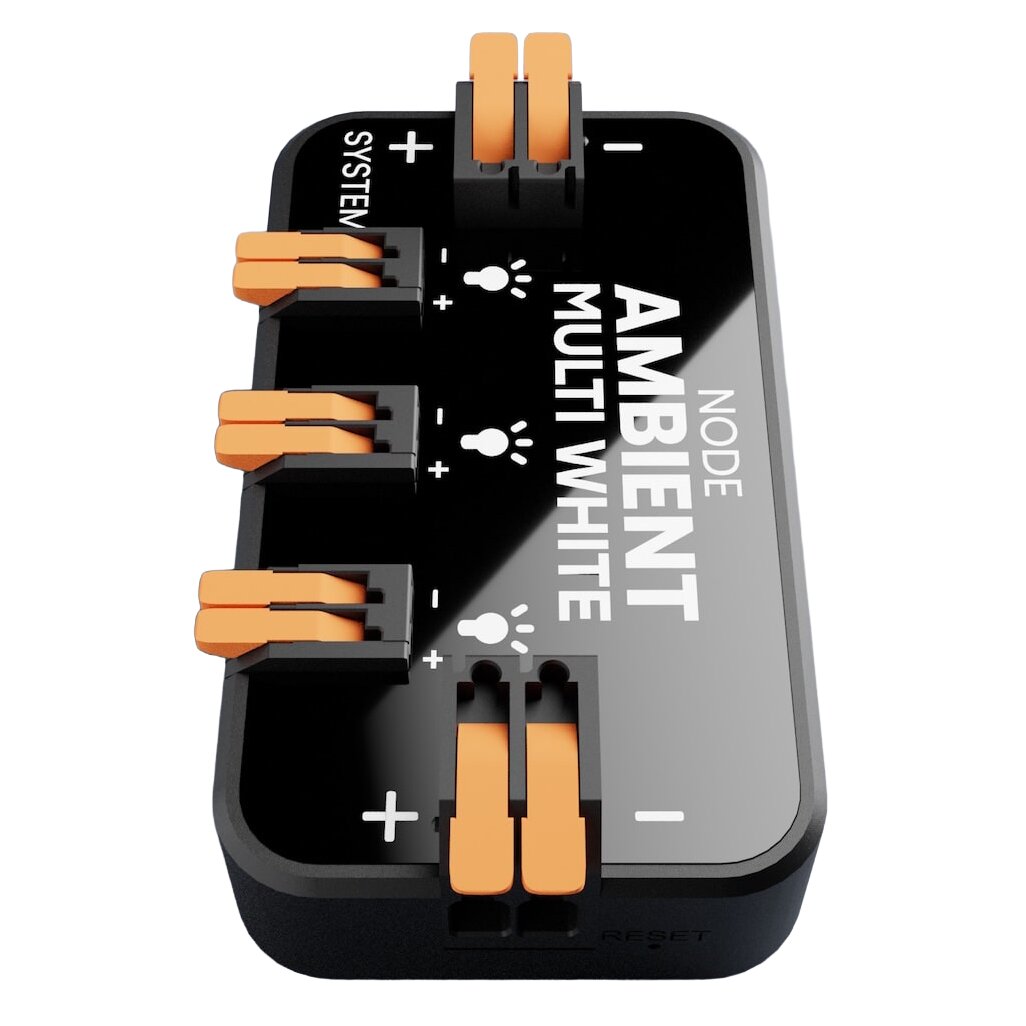

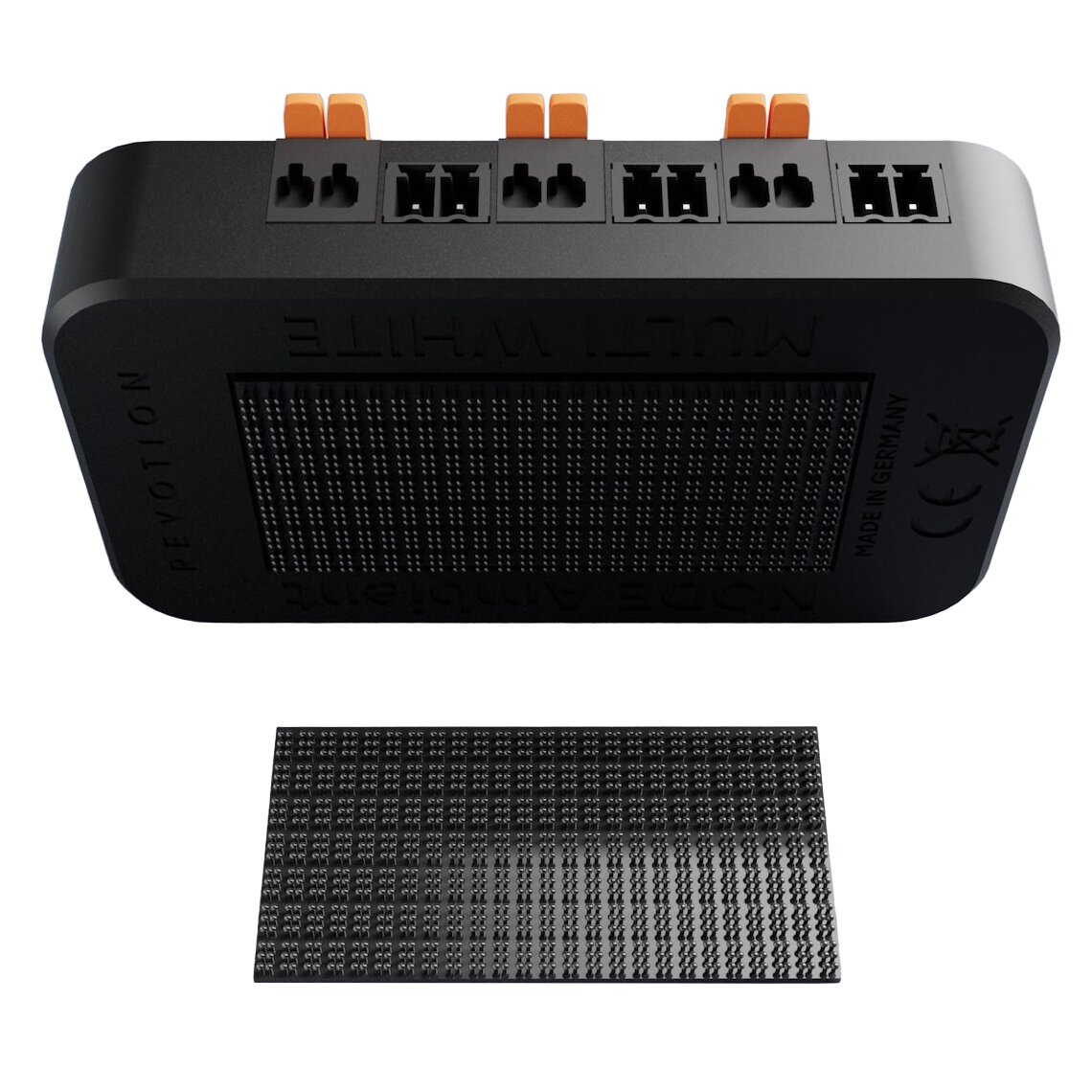

With the NODE Ambient MultiWhite, you can dim up to three monochromatic lighting zones separately – simply via the positive wire. Ideal for retrofitting and intuitively controlled with a dimmer slider that can be labelled.
