Electronic Block with Control Display
€629.95*
Order by 15.12.2025 11:00 o'clock and you will likely receive your delivery on 17.12.2025.
Product number: FRA322134
Delivery time: 1-3 days
- Free shipping
- Shipping within 24h
- 30 days money back guarantee
- Purchase comfortable on account
The classic. The electronic block EBL 211 contains a battery charger module, coordinates the complete 12 V circuit and assumes further control and regulation functions. Connection material is included. The LT 453 control panel and the complete connection material are included in the set as well.

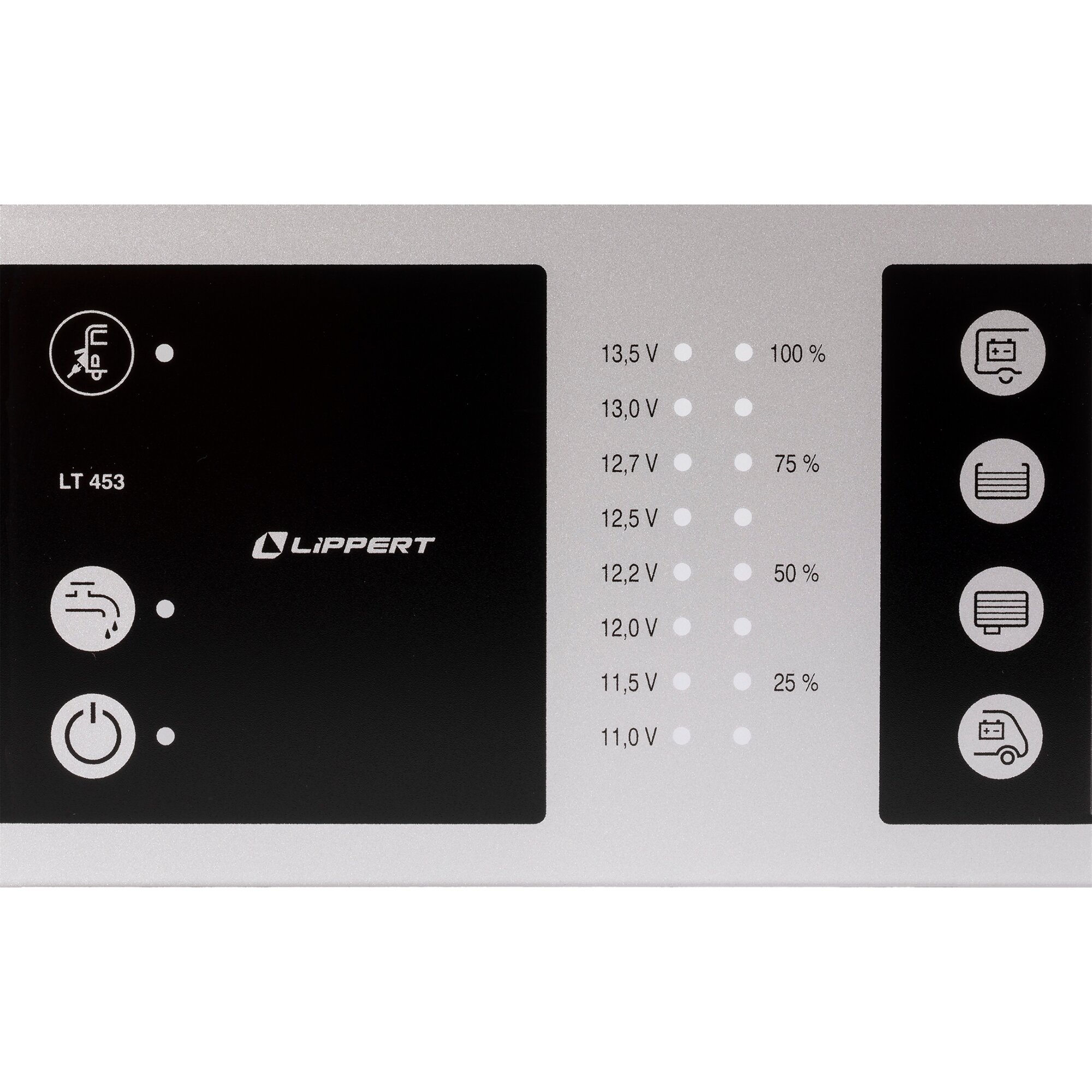

System control display LT 453
- LED display
- Voltage indicator with 8 levels for living area and starter battery
- Visual battery alarm when battery voltage is very low
- Tank level display with 4 levels for two water tanks
- 12 V main switch with switch-on control
- 230 V mains control
- Pump switch with switch-on control
Dimensions (W x D x H): 180 x 25 x 112 mm

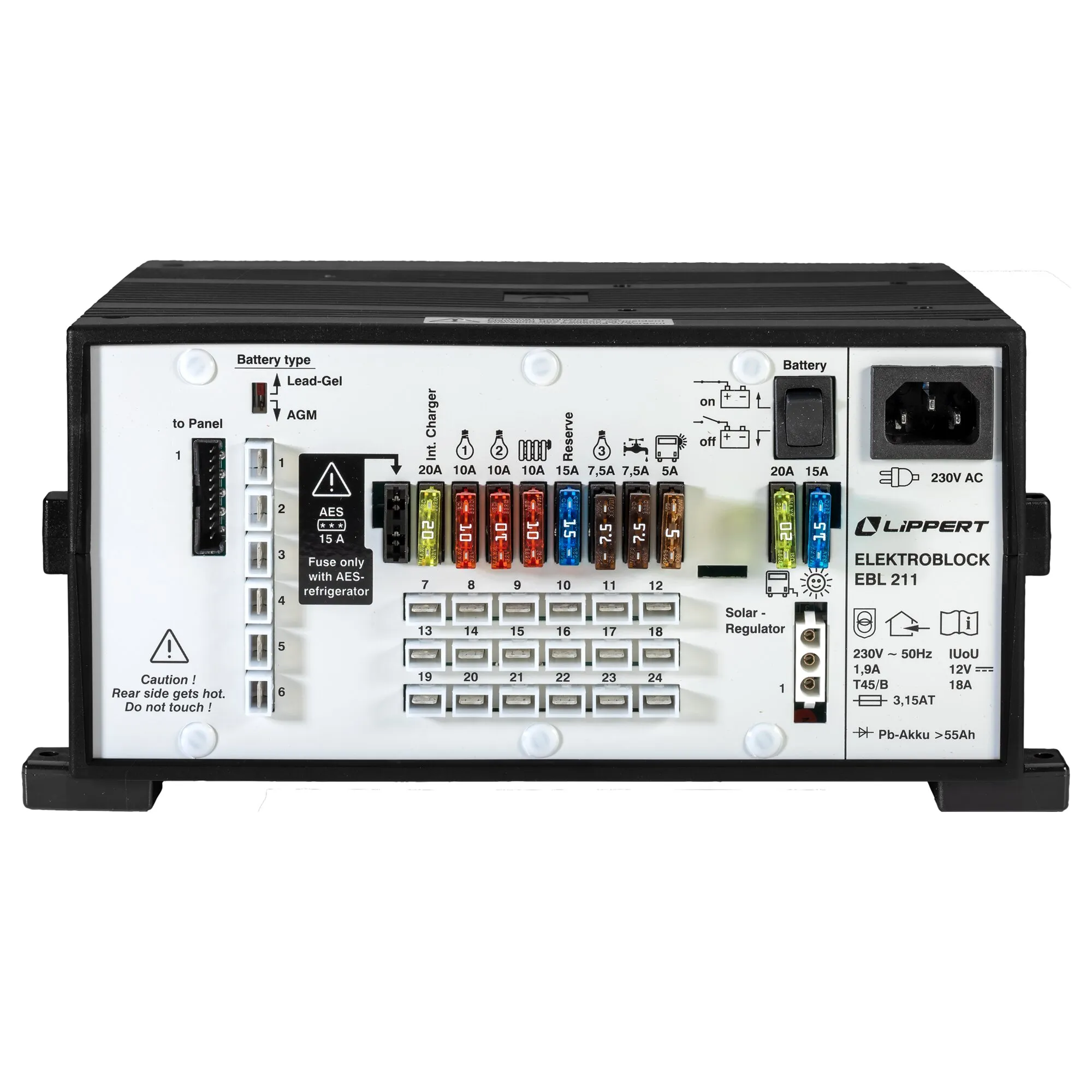

Electronic block EBL 211
- Bistable 12 V main switch relay and battery monitor module
- Charging module: characteristic curve IUoU, charging current 18 A for 6-cell lead-gel and AGM batteries
- Battery disconnector for winter shutdown
- Connection for solar charge controller LR(M) 1218
Dimensions (W x D x H): 275 x 170 x 130 mm
Weight 1.9 kg
Properties
| Herstellernummer: | 9990321 |
|---|---|
| Maße Breite: | 275 mm |
| Maße Höhe: | 130 mm |
| Maße Tiefe: | 170 mm |
| Nennspannung: | 12 V |
| Nennstrom: | 18 A |
| Nettogewicht: | 1,9 kg |
| Typ: | EBL211 + LT453 |
Data according to manufacturer. Errors and changes reserved.
