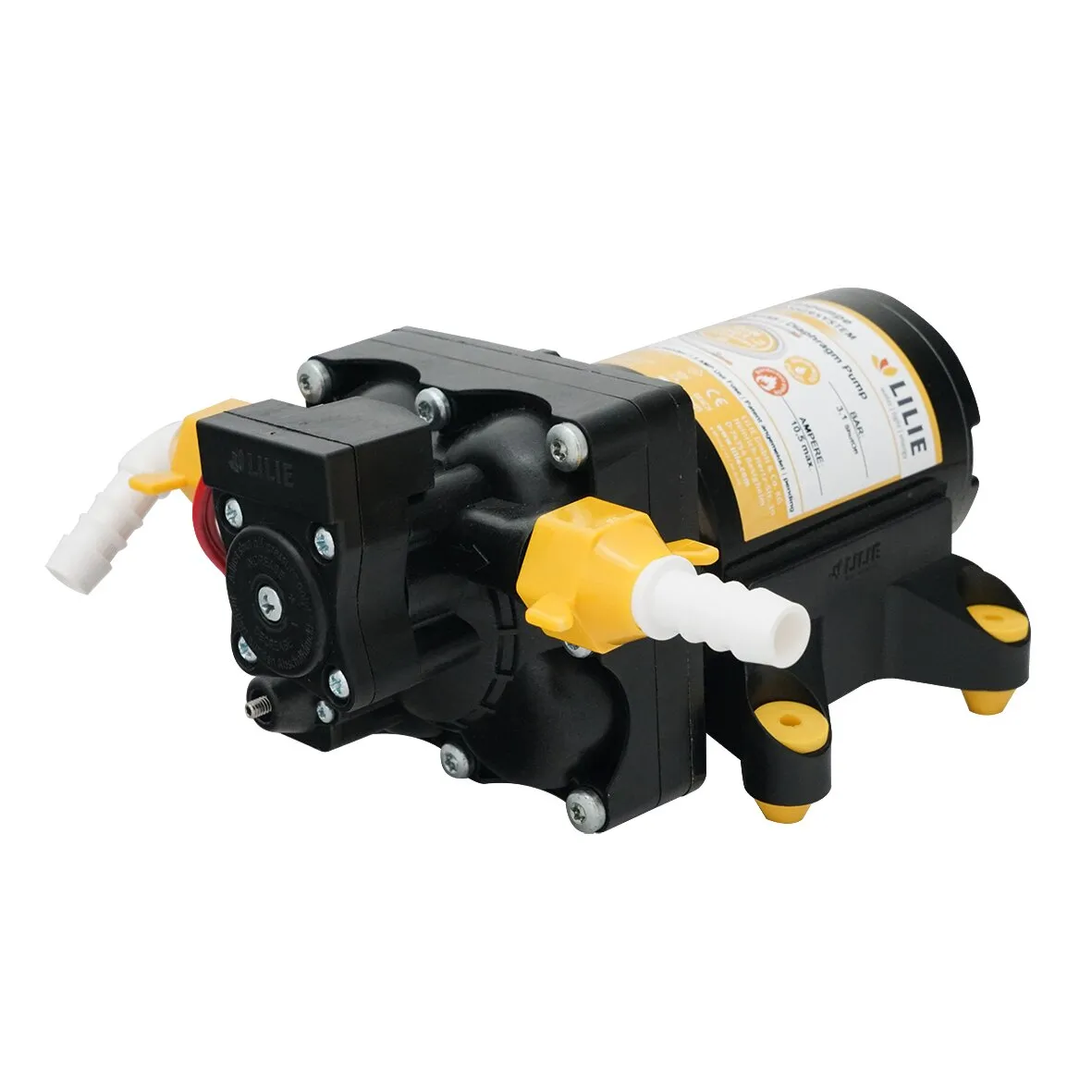

Diaphragm Pump SOFTSERIE® Drinking Water System WeißGELB®, 3.1 bar | 14.4 l/min
€219.00*
Order by tomorrow 11:00 o'clock and you will likely receive your delivery on 18.12.2025.
Product number: FRA303181
Delivery time: 1-3 days
- Free shipping
- Shipping within 24h
- 30 days money back guarantee
- Purchase comfortable on account
The tried-and-tested diaphragm pumps in the LILIE SOFTSERIE® have a smooth-running motor and an integrated bypass control as the centrepiece. They can also prime themselves dry and run dry for short periods. The motors have a high level of efficiency and a very low power consumption. Multiple tests of every single pump produced ensure 100% functionality. The bypass guarantees a constant flow of water even with low water withdrawal. You no longer have to deal with a pulsating water flow!
Properties
| Anschluss Wasser: | ½" AG |
|---|---|
| Druck: | 3,1 bar |
| Förderhöhe: | 3,1 m |
| Fördermenge: | 14,4 l/min |
| Herstellernummer: | LP4155 |
| Kabellänge: | 0,5 m |
| Maße Breite: | 125 mm |
| Maße Höhe: | 110 mm |
| Maße Länge: | 205 mm |
| Nennleistung: | 96 W |
| Nennspannung: | 12 V |
| Nennstrom: | 8 A |
| Nettogewicht: | 2,02 kg |
| Typ: | LP4155 |
| Variante: | 3,1 bar | 14,4 l/min |
| Zusatzinformation: | Speziell für Filteranlagen!Zapfstellen: 6 |
Data according to manufacturer. Errors and changes reserved.
