Corner Steady ADS 460

Support plates prevent slipping or sinking of lifting supports, axle stands, caravan support legs, motorcycle stands and tent poles on slippery or soft surfaces. UV-resistant and weatherproof. Scope of delivery: 4 support plates, 1 transport bag.

Installation The floor area where the plastic profile section will be fitted must be clear of, for example, pipes and other components. Vehicles with outer mud flap require a drilling hole. Four plastic profile sections are sawn to length as required, and then, using wood screws, fastened to the floor of the vehicle to act as a guide for the crank handle. No bending down The AL-KO Comfort Kit allows you to operate your corner steadies from a standing position via a universal joint. No kneeling The universal joint locator, i.e. the plastic guide tube, can be seen from a standing position. You do not have to kneel down to find the hexagon socket locator or operate the corner steady with the crank. Scope of delivery 2 plastic profiles, 400 mm long 2 plastic profiles, 200 mm long 1 universal joint, long 1 universal joint, short Installation instructions Retrofittable to caravans with AL-KO chassis.

Prevent sinking or slipping of axle stands, caravan support legs, lifting supports or tent poles on soft or slippery surfaces. Very sturdy. Made of indestructible, UV-resistant polypropylene, integrated handle for easy use. For storage, the four support plates are put together and fixed with a retaining strap.

Reinforced base plates prevent the crank supports from sinking in. ø: 20 cm.

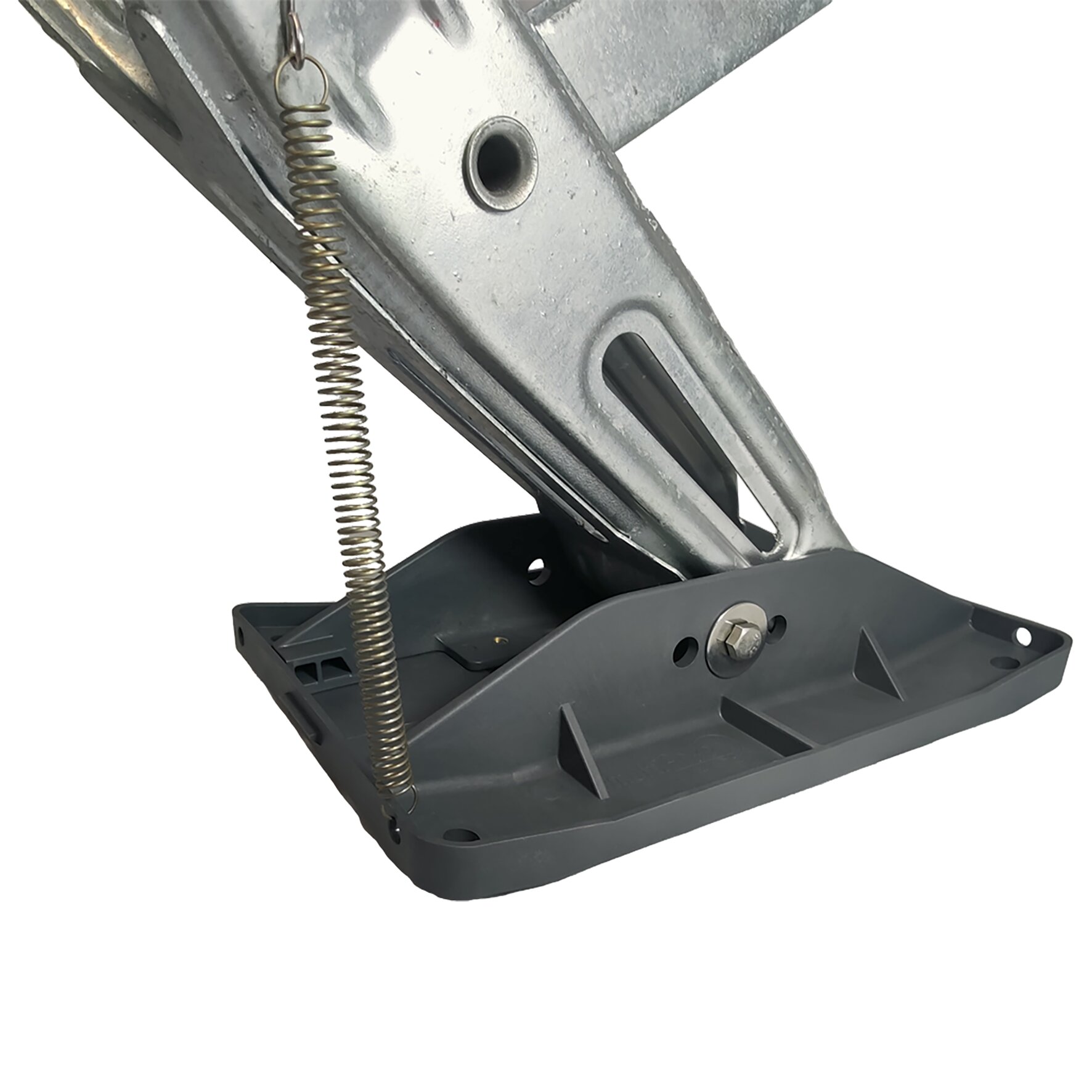

Secure standWith its large footprint of 200 x 180 mm with transverse ribs, AL-KO big foot™ prevents the supports from slipping off or sinking in. It ensures that your caravan stands securely. Max. load of the support leg: 1250 kg.Compact designInterlocking attachment via springs of the AL-KO big foot™ to the support when driving.FunctionalityWhen in contact with the ground, slots guide the support so that it slides directly onto the AL-KO big foot™, i.e. the support does not have to push the AL-KO big foot™.InstallationBig foot™ can be attached to all AL-KO Stabilform and Premium plug-in supports. From model year 2001, the corresponding mounting holes are already included on the Stabilform supports. Up to model year 2000, the mounting holes have to be drilled in accordance with the operating instructions.Retrofittable for caravans with AL-KO chassis and Stabilform support.Scope of deliveryFour AL-KO big foot™ incl. mounting material and instructions.

For all common crank supports, even heavy extendible ones. Quick and easy assembly. Permanent installation for quick and stable parking. Protects the crank support from sinking into unpaved ground.

The Multianker base enlarges the contact surface of the caravan supports. It prevents the supports from sinking in or slipping away on soft ground and ensures that the caravan stands absolutely securely.
