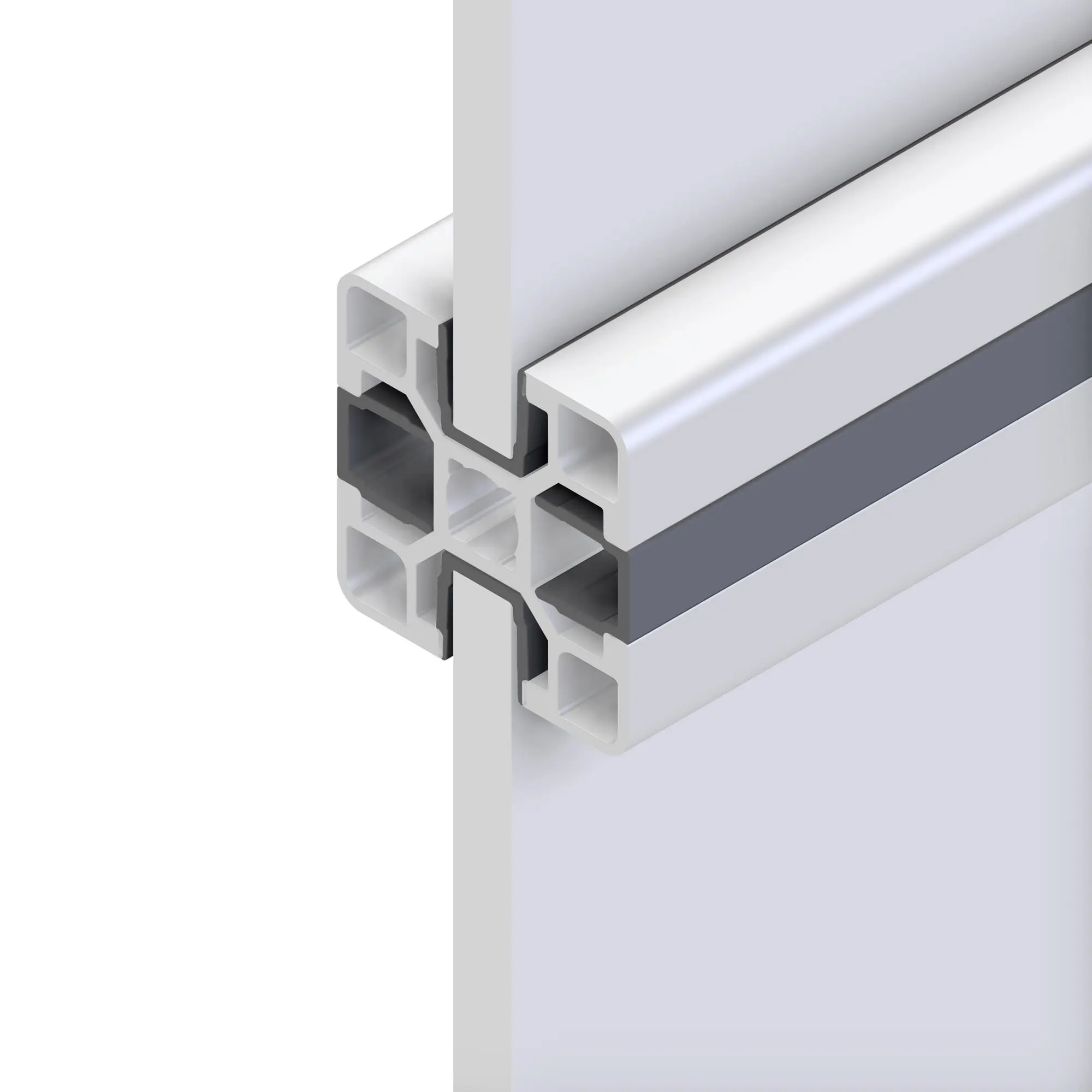

Using the edging / cover profile, a wide variety of materials such as wood, plastic and glass can be elegantly edged. It features fluting that ensures secure and stable fastening of the edged panels.

MiniTec's modular system offers a reliable, flexible and cost-effective solution for vehicle conversions. The aluminium profiles are lightweight, versatile and are characterised by their special adaptability. Profile series 30 is also characterised by its reduced dimensions and low weight. It is ideal for applications requiring particularly lightweight profiles. Thanks to the standardised grid dimension of 30 mm, the profiles can be easily combined with each other. This enables easy customisation and expansion of the construction. Conversion is even easier with the clever connectors and the comprehensive range of accessories. The patented MiniTec profile connector (item no. 52 111) enables almost machining-free profile connections.

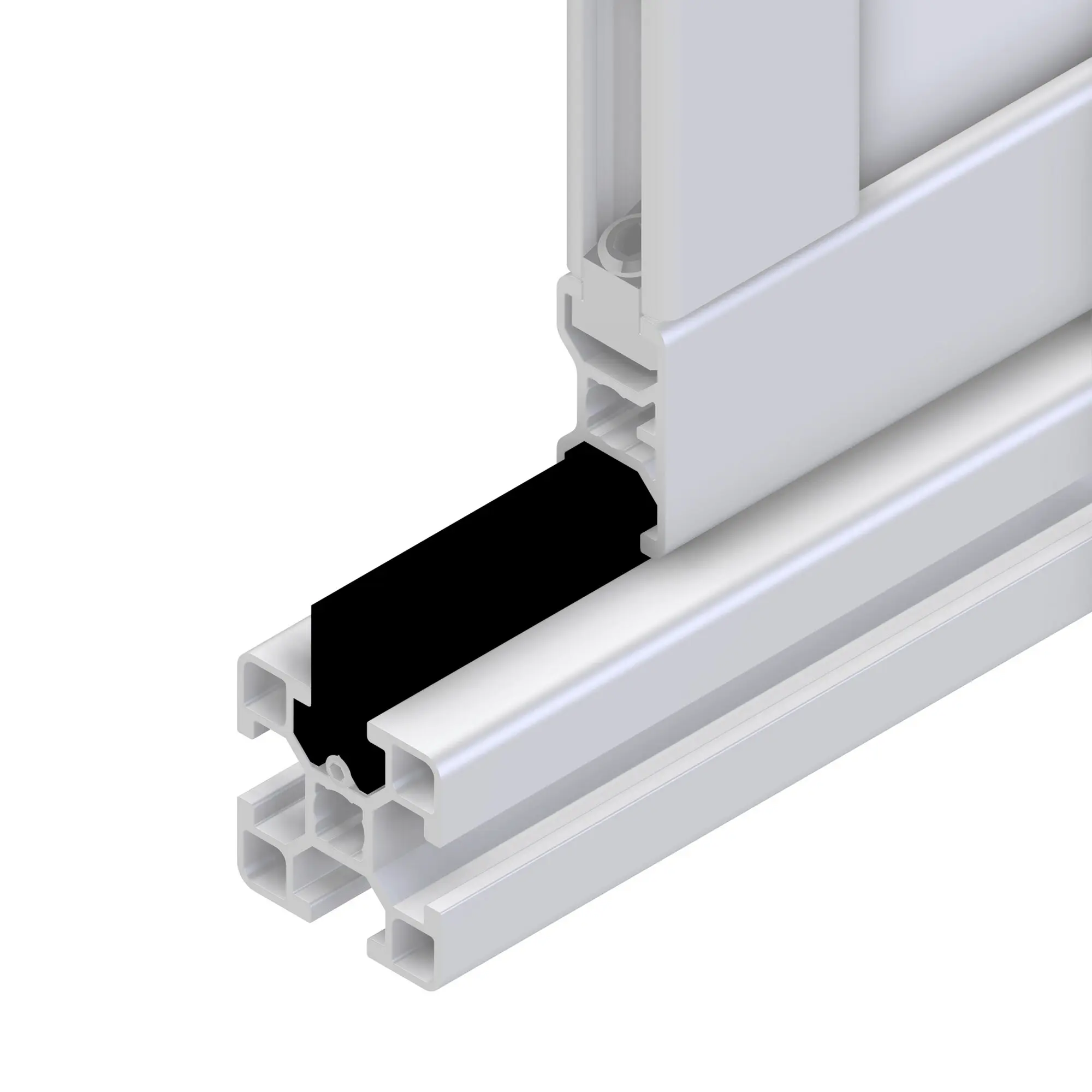

Particularly wear-resistant, impact-resistant and scratch-proof. Used for guiding sliding doors, pull-outs and fixtures.

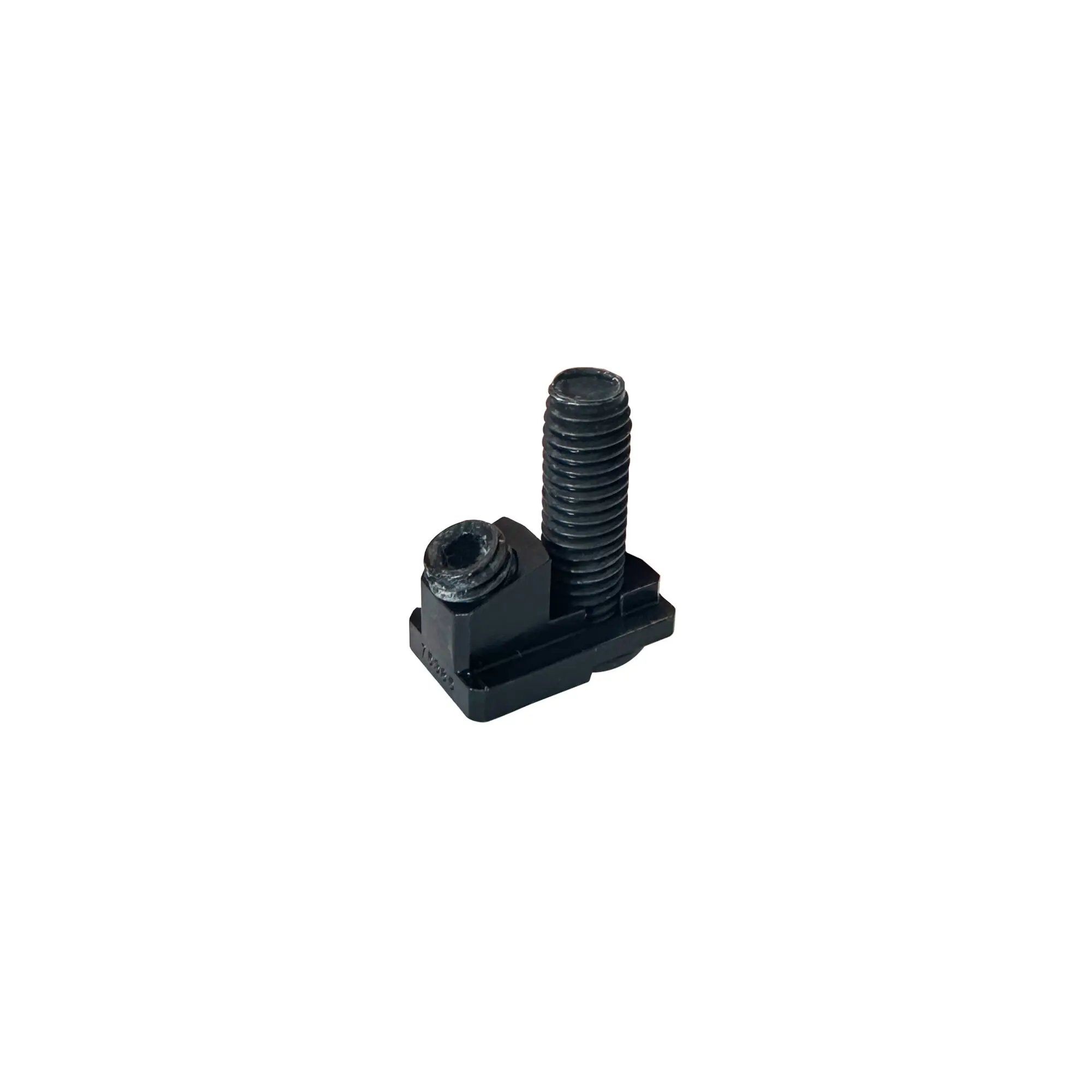

Galvanised steel profile connector for non-positive connection, also suitable for cross connections. Assembly:Screw connector into profile at the end using Torx key T 40Tighten threaded bolt M8 with key SW 4Recommended tightening torque:  12 Nm

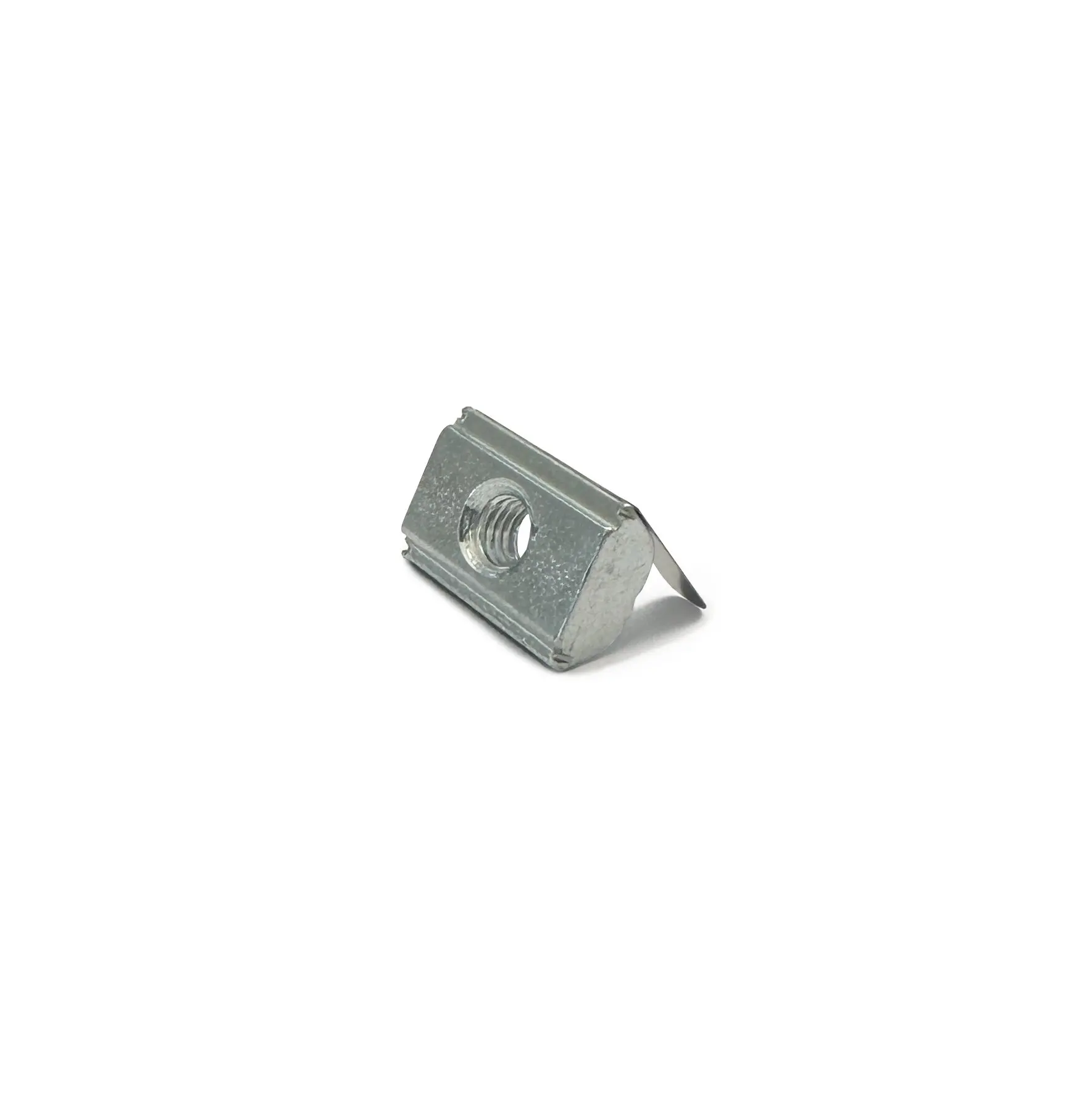

Sliding nut made of galvanised steel with spring sheet, holding the nut in place. Sliding nuts can be swivelled into the Series 30 profiles at any point. Thread (d) : M 5

Sliding nut made of galvanised steel with spring sheet, holding the nut in place. Sliding nuts can be swivelled into the Series 30 profiles at any point. Thread (d) : M 8

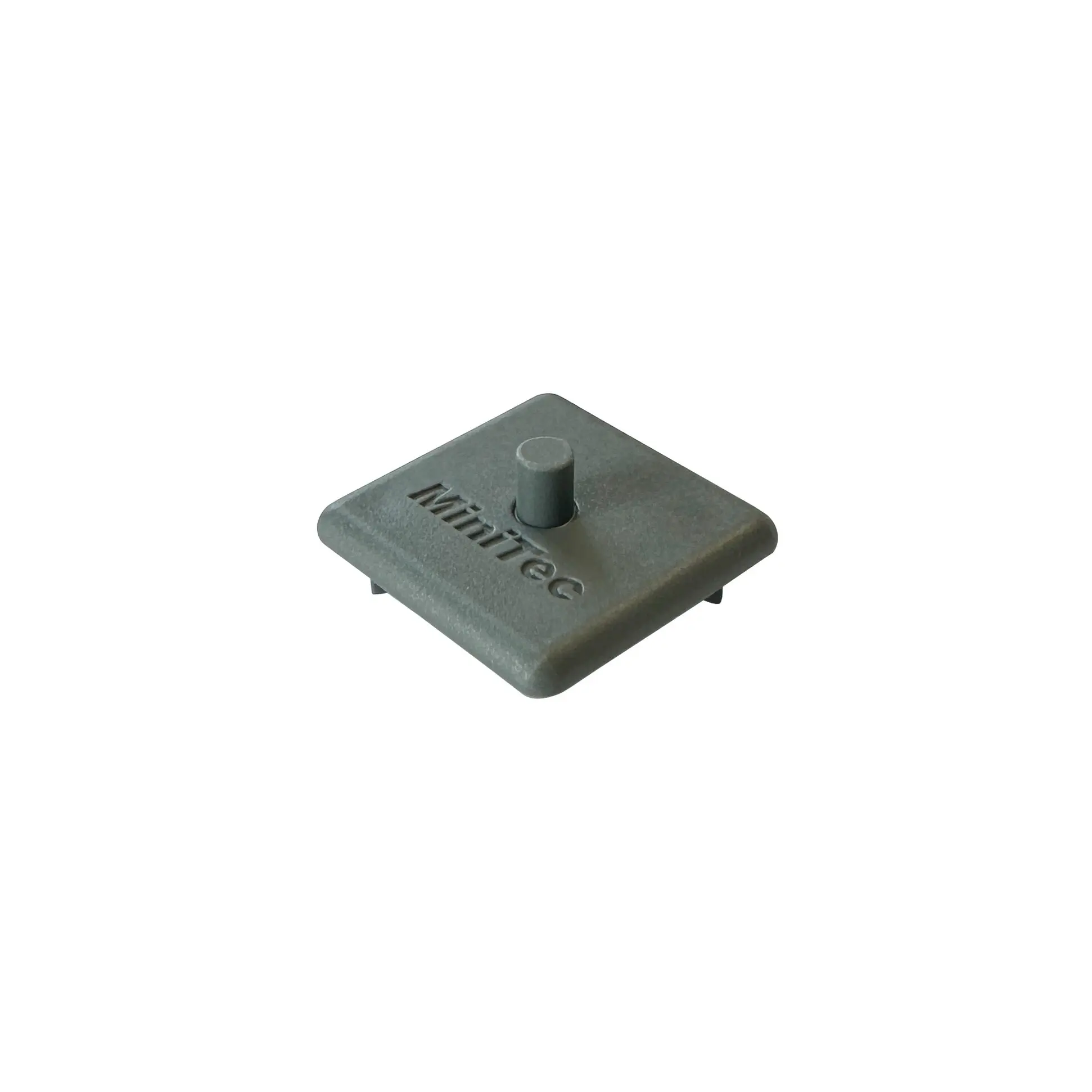

For covering the end faces of Series 30 and 45 profile ends.

Sliding nut made of galvanised steel with spring sheet, holding the nut in place. Sliding nuts can be swivelled into the Series 30 profiles at any point. Thread (d) : M 6

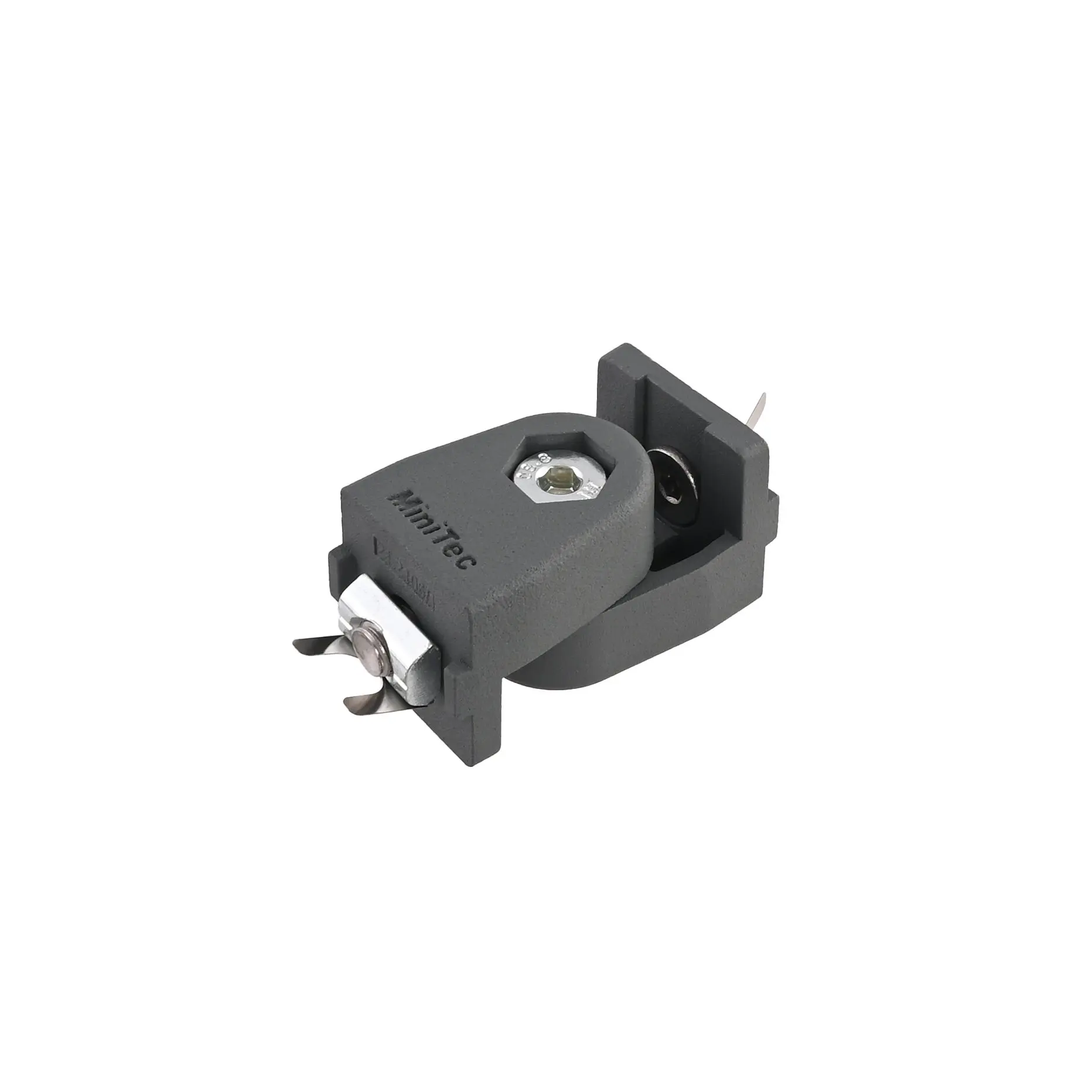

Grey anti-twist joint with fixing material made of galvanised steel. Used to connect profiles at any angle and for retrofitting stiffeners in existing frames. Assembly: Attach first half of the joint to the front of the profile strutAttach second half of the joint to the frameScrew both parts together at the hinge point

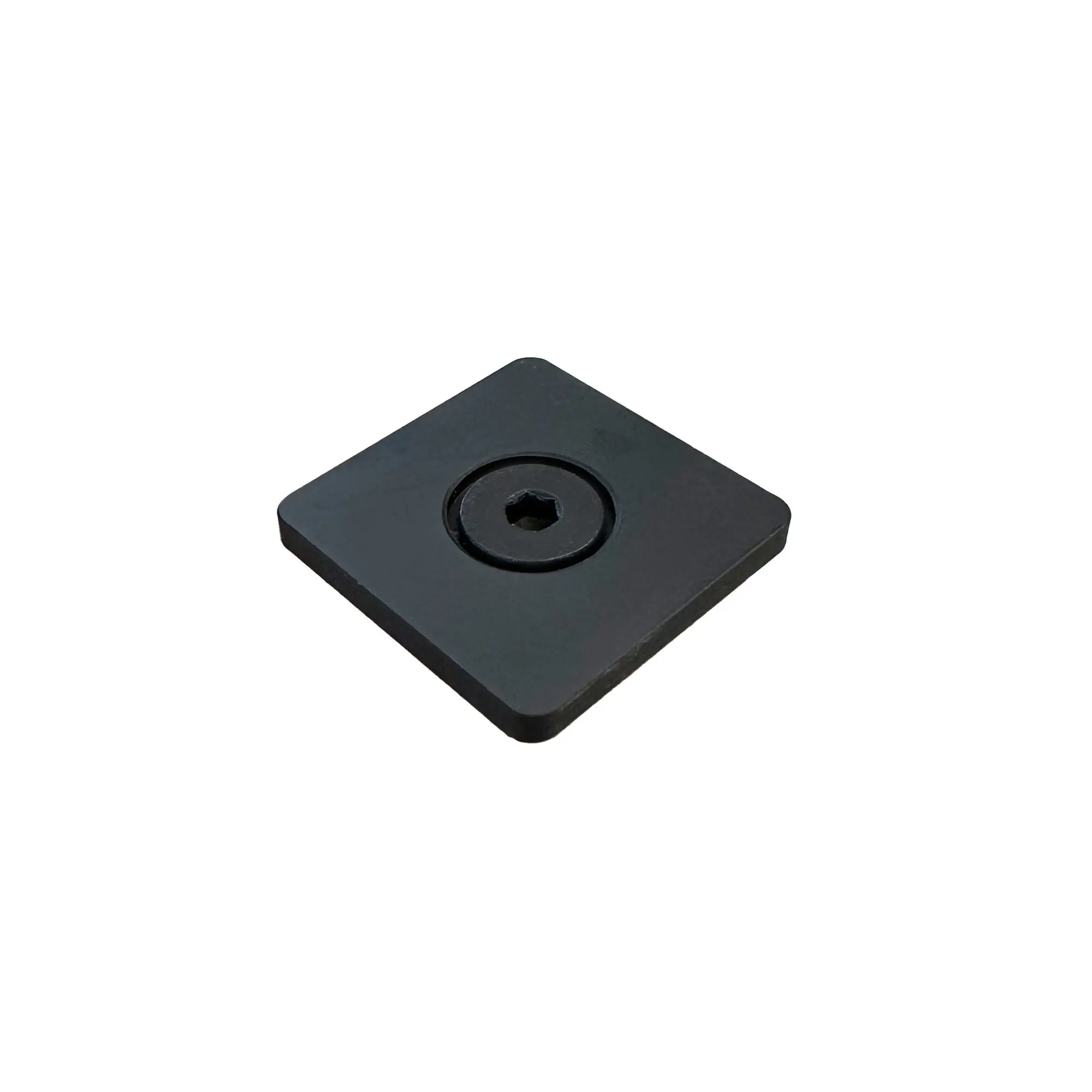

Cover cap made of black anodised aluminium for covering the front faces of Series 30 profiles.

Mounting bracket with fixing material made of galvanised steel. With break-off groove centring. Used to reinforce profile connections.

Plastic folding hinge with low-rust cylindrical pin and fastening material made of galvanised steel. Suitable for profile series 30, allowing profiles to be connected at any angle. Load capacity up to 300 N.

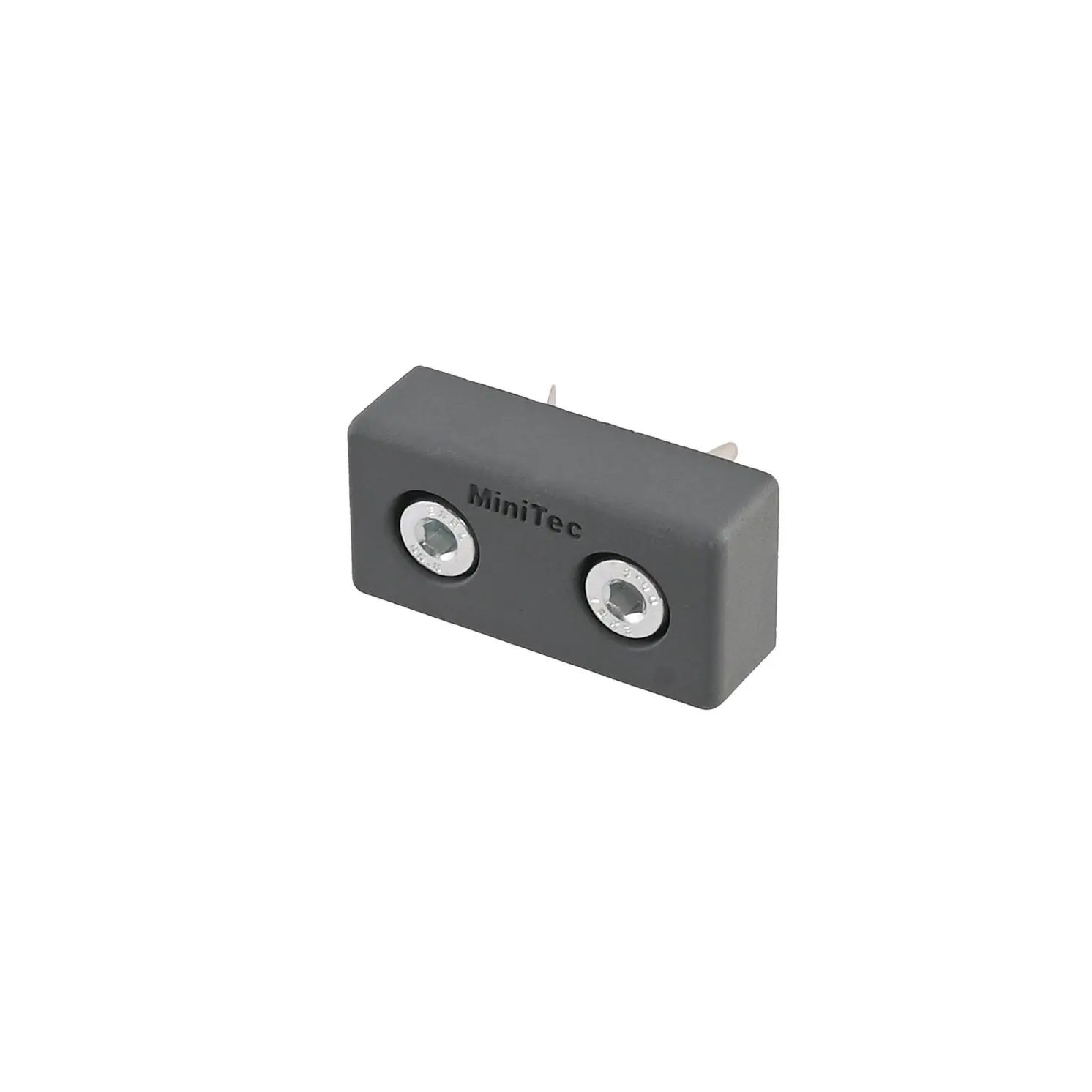

Grey connection plate with fixing material made of galvanised steel. Used for gap-free connection of profiles or pre-assembled assemblies.
