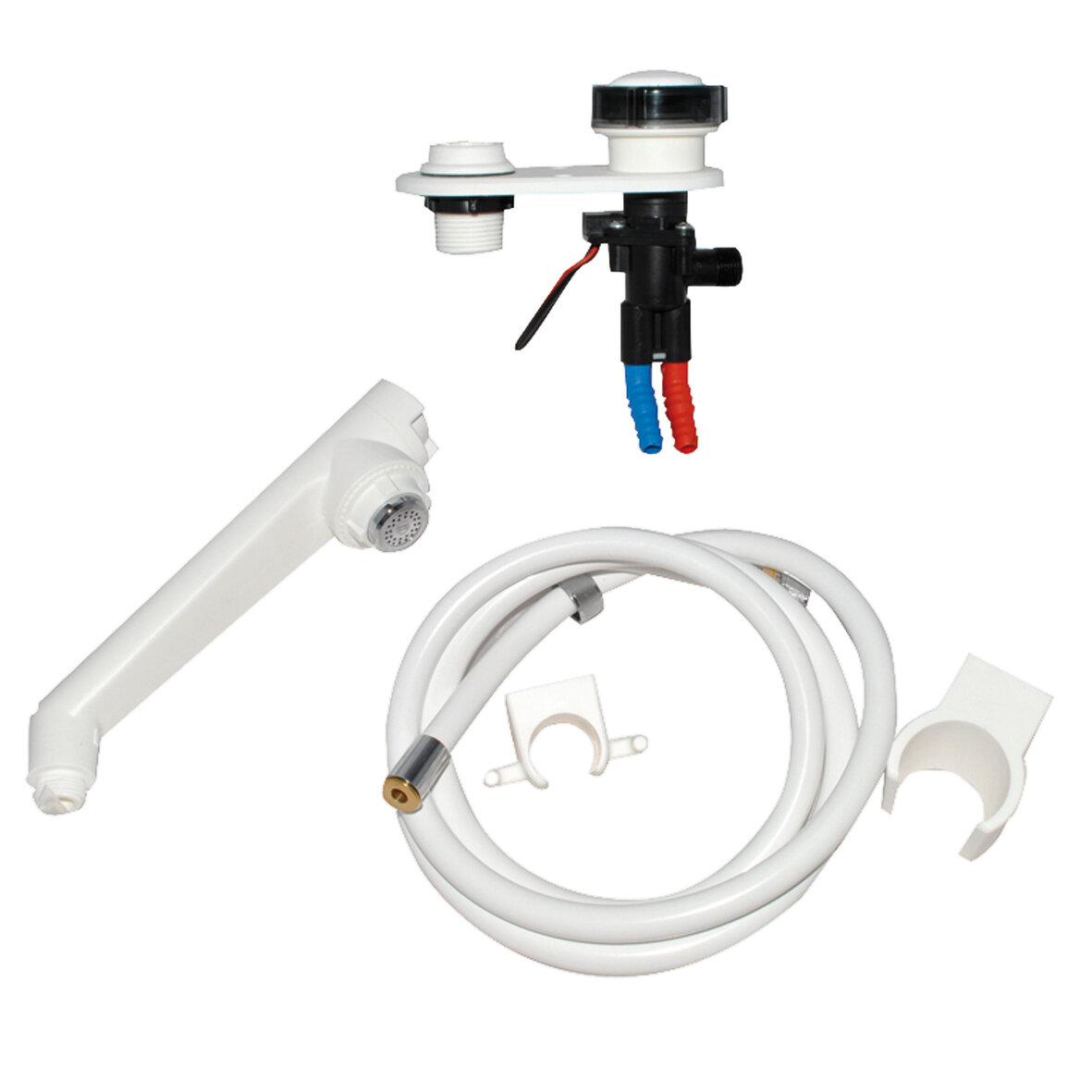

Shower set with wall bracket and shower hose (1.5 m). ø 3/8".

T-connection.

Consists of automatic under-counter pre-mixer, shower with jet spray, 150 cm hose, wall bracket with a towel hook and ceiling bracket. Pressure- and temperature-resistant. Switching capacity: 6 A at 12 V. Thread: 18 mm for plate thicknesses up to 19 mm. When using the mounting plate, the plate thickness is irrelevant.

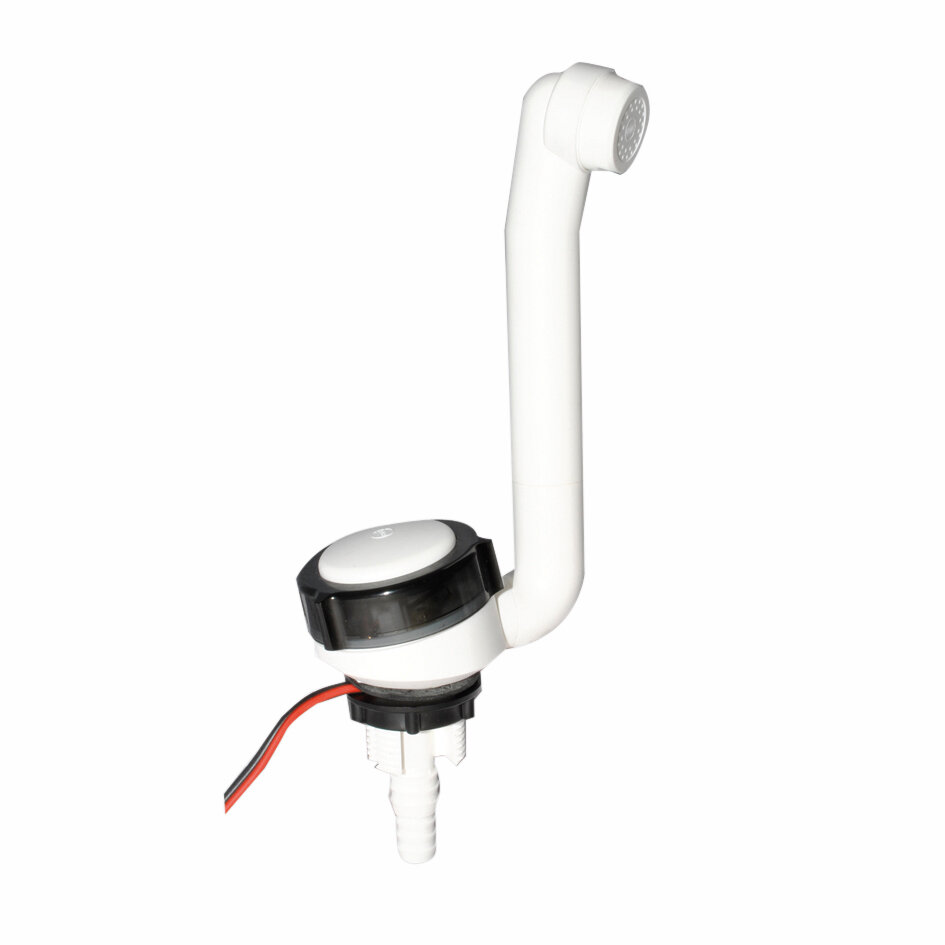

Rotatable and swivelling outlet pipe, thread diameter ø 28 mm for panel thickness up to 19 mm, switching capacity 6 A at 12 V. Hose connection rotatable at 45°, 8/10 mm.

With sight glass for the inlet port of pressure pumps. The easy-to-clean filter is screwable and guarantees a smooth operation of the water supply due to its 0.1 mm fine mesh. For hoses with a 10 or 12 mm inner diameter.

Ensures even water flow in automatic pressure pumps and prevents them from being switched on and off several times during low water withdrawal. Safety-approved for 5 bar overpressure at 60 °C according to TÜV-SW-005-93. With venting screw for draining the system and stable fastening straps on the housing.Dimensions: T-Connection ø 10/12.5 mm. Tank H 300 x W 90 mm; tank with brackets H 300 x W 100 mm; hole spacing 120 mm. Hose tail W 80 x H 38 mm.
