Router Set Kathrein CAR 4G, black

"The Compact One"Incl. control unit CAP converterGPS receiver for quick alignment of the antenna in about 1 minuteWith flat antenna BAS 66Compact constructionTwin LNBWeight 14.5 kg, installation height 21 cm

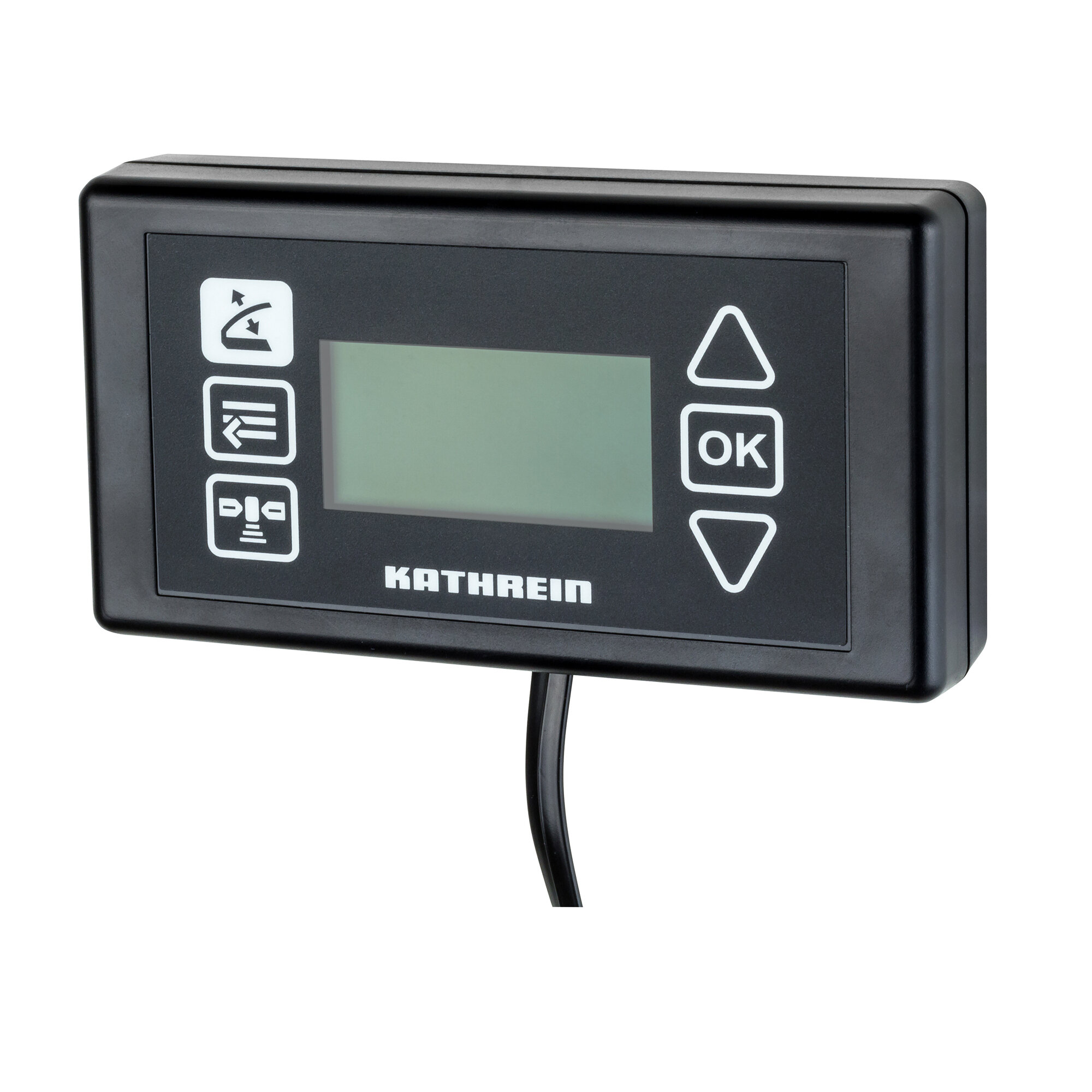

The desired satellite can be selected via LC display and push buttons. Lowering to parking position and other functions are available. Dimensions W 12.5 x D 2.5 x H 6.8 cm.

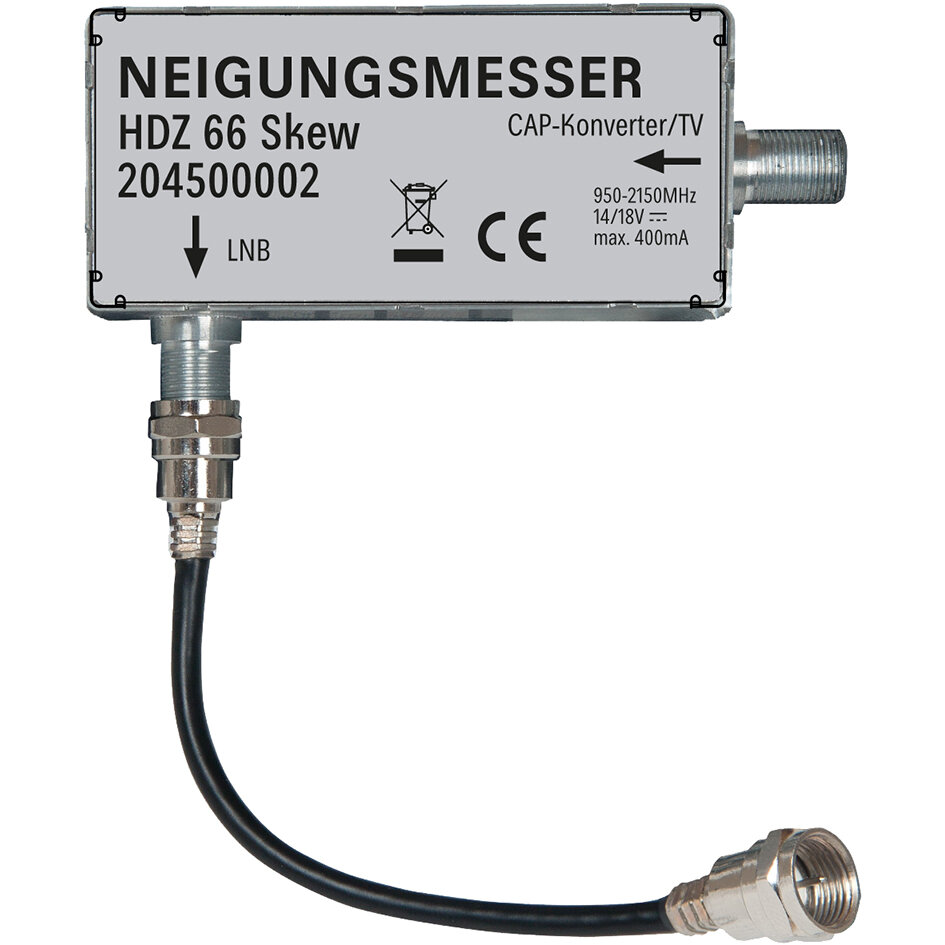

The inclinometer is installed in a few, easy steps to the back of the LNB casing of the BAS 66 and the BAS 99 Skew. Together with the CAP converter V2, WiFi USB adapter UFZ 132 and the acoustic instruction of the app "CAPcontrol", aligning the antenna is as easy as pie. Required and current elevation are displayed in the receiver set up and in the app "CAPcontrol". Displaying the elevation is also possible with an adjusted skew.

"The Light One"Incl. control unit CAP converter (dimensions W 22 x H 3.5 x D 17 cm)GPS receiver for quick alignment of the antenna in about 1 minuteTwin LNBAerodynamic constructionDish size 60 cmLow weight: 9.7 kg, installation height: 21 cm

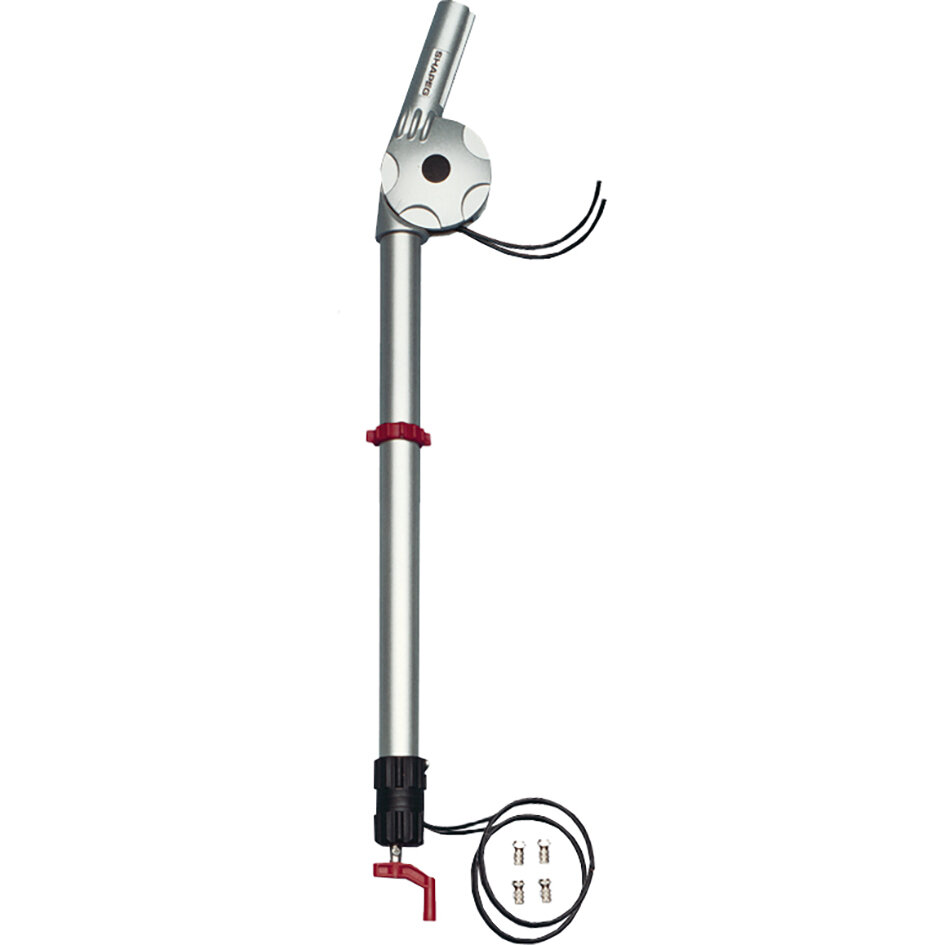

For converting a terrestrial reception system to a satellite reception system with the flat antenna BAS 66. The mast is equipped with 2 retracted connection cables and 4 F-connectors; length 103 cm.

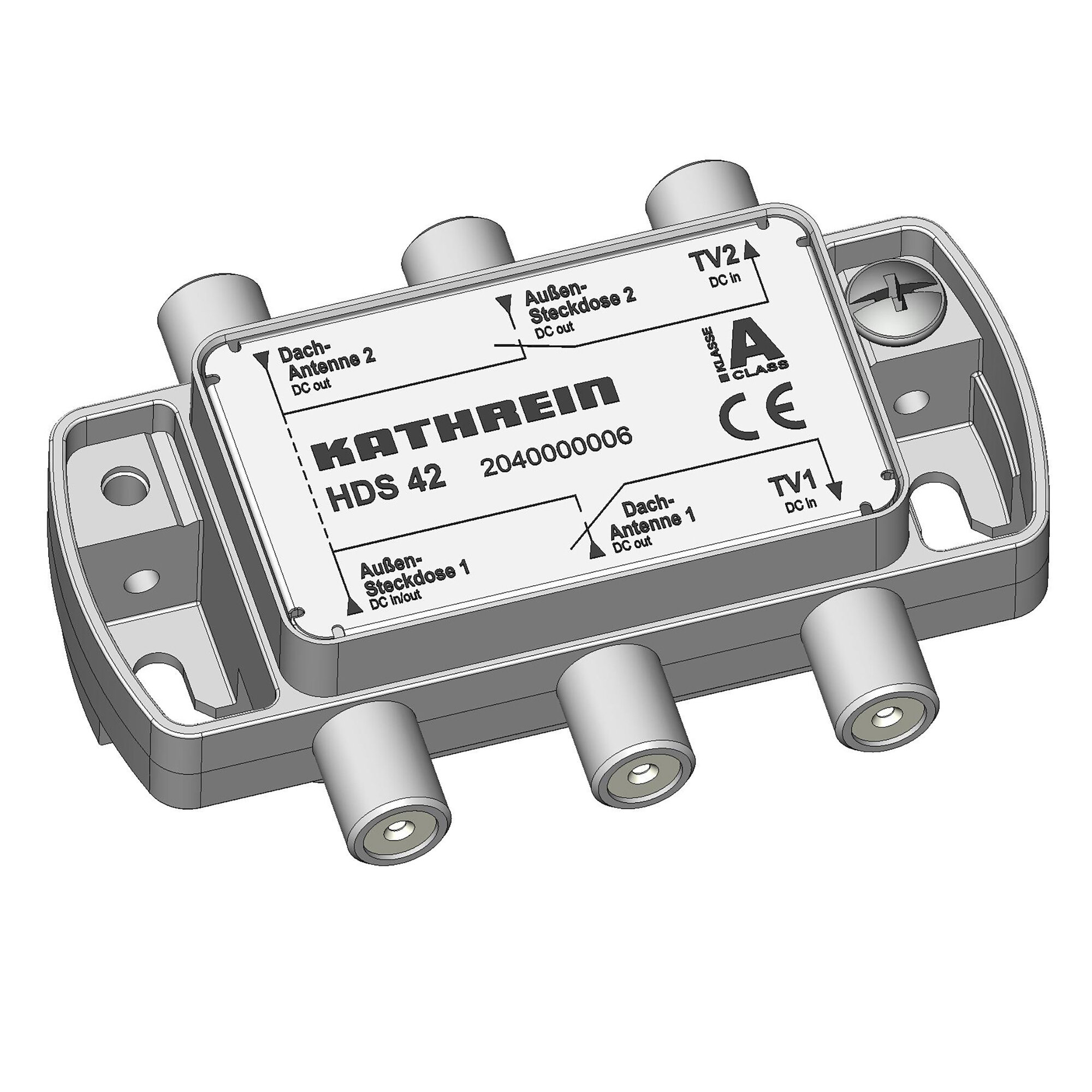

It is possible that, for example, trees may shade the direct transmission route of the satellite system on the vehicle roof. In this case it is advisable to use an additional manual system with a tripod, which is then optimally positioned. In combination with the CAP converter, the HDS 42 connects both systems and automatically detects which system is currently receiving a signal. Manual replugging of the cables is completely unnecessary.

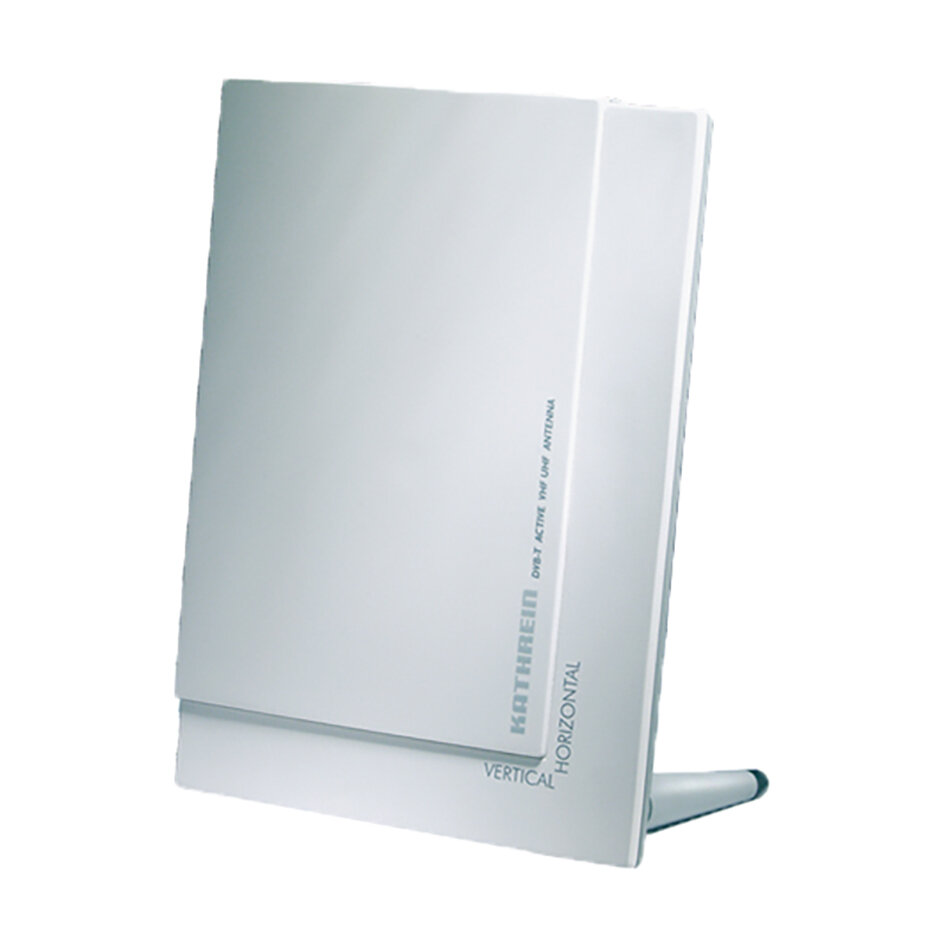

Active DVB-T/T2 indoor antenna for receiver, has an integrated blocking filter against GSM and LTE interference. Power supply (5 Volt / 30 mA) is provided via the coaxial cable. Included in delivery is a 2 m long connection cable. Dimensions L 14 x H 19.5 cm, weight 500 g.

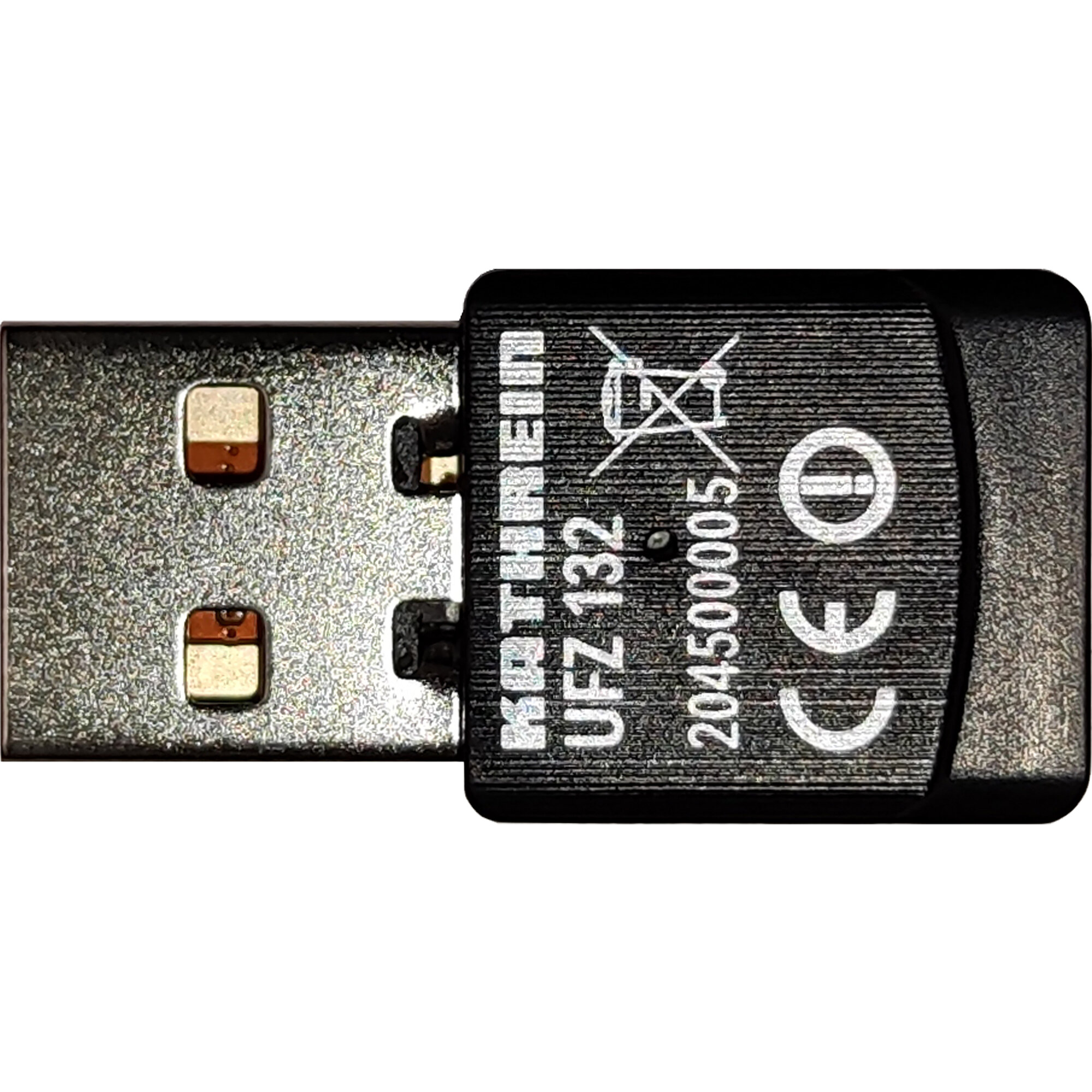

Creates a WiFi hotspot with which TV and radio programmes can be streamed without an additional internet router to mobile devices (smartphones, tablets, etc.) The free Kathrein app "CAPcontrol" has to be installed.

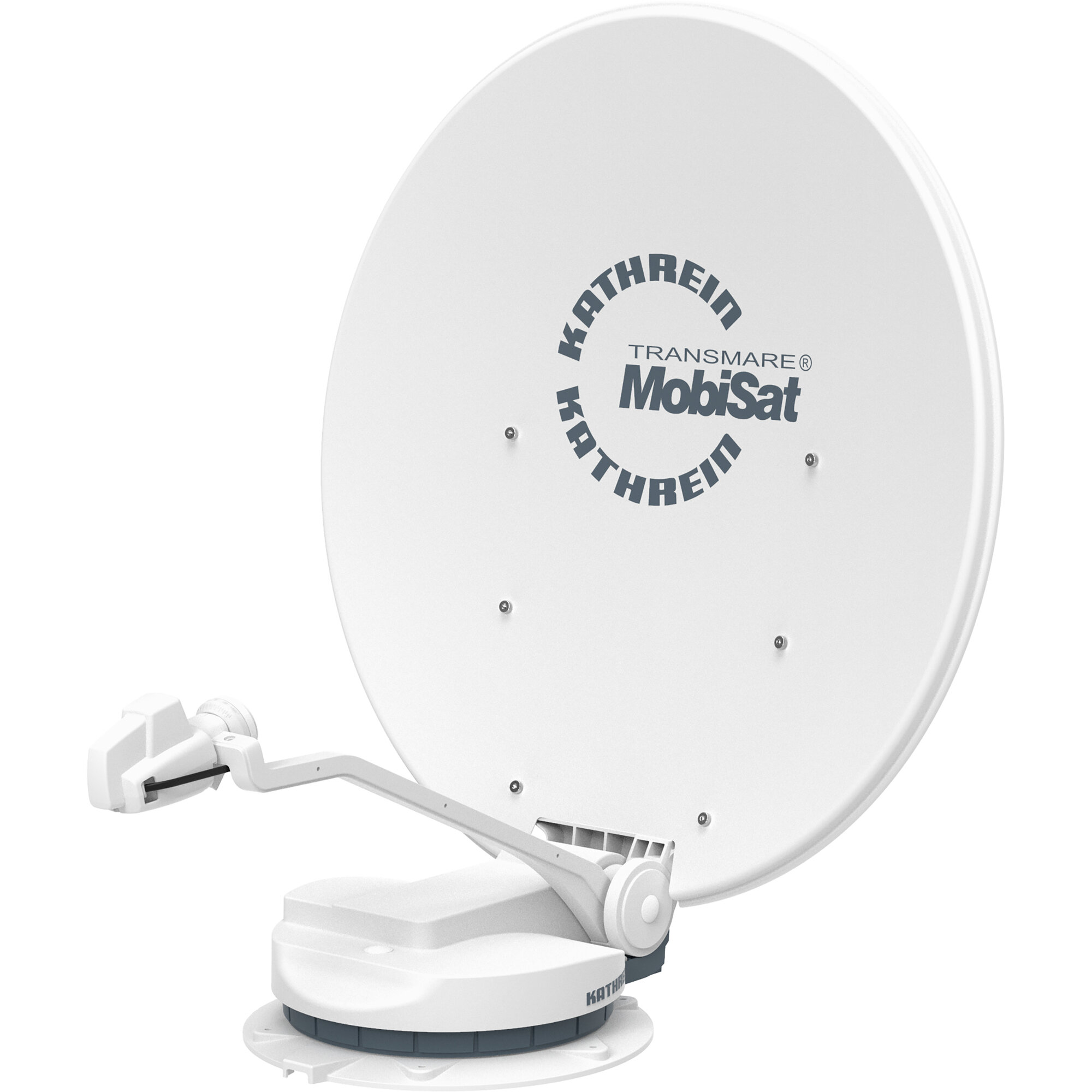

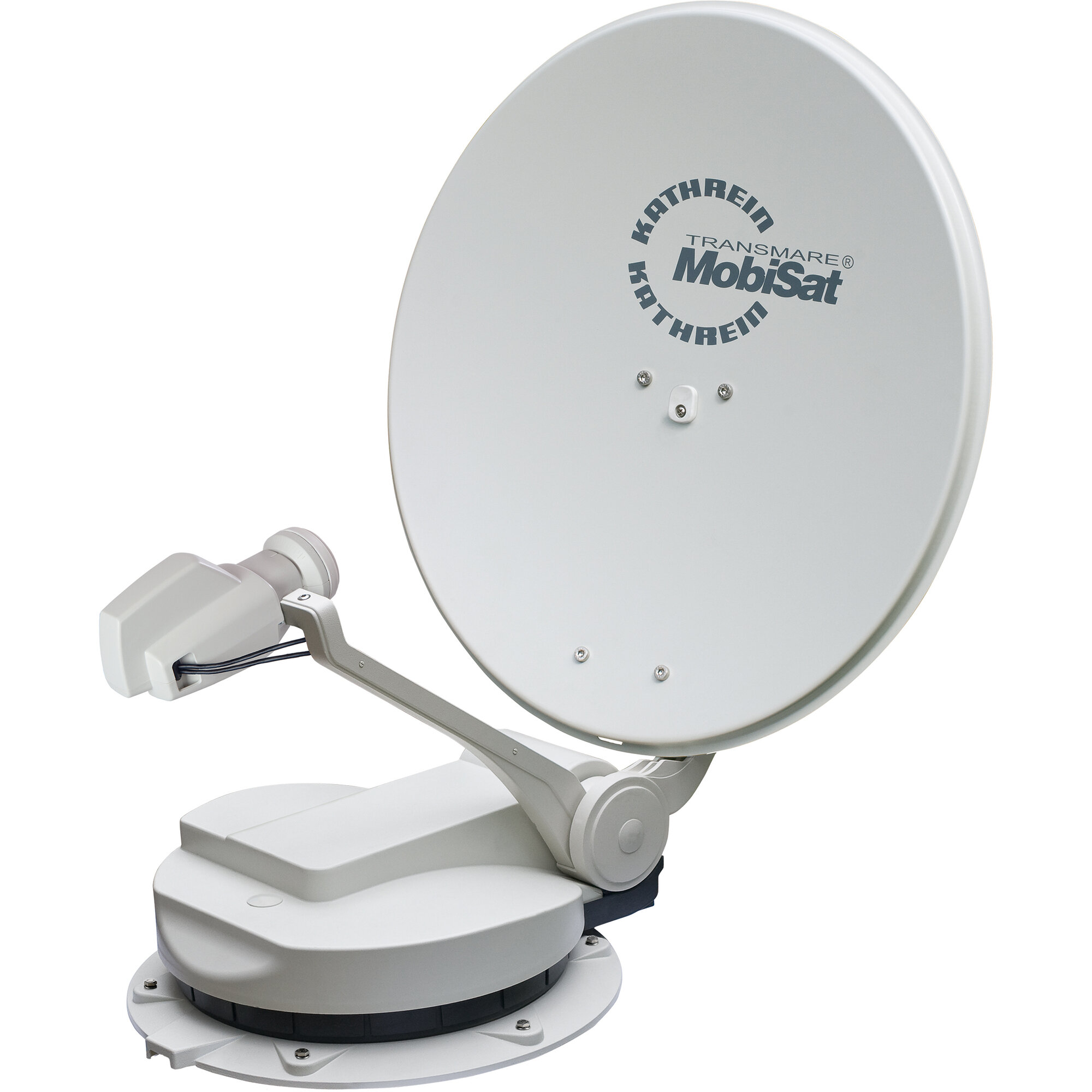

Kathrein offers 3 different fully-automatic satellite systems, which, in combination with the corresponding control solution and additional accessories, satisfy all configuration wishes. From the CAP 850 GPS with a large rotating unit with very good reception even in the peripheral areas, to the compact CAP 750 GPS for common use in Central Europe, to the space-saving flat antenna CAP 650 GPS, all systems work with the pioneering CAP converter, eliminating the need for a receiver and, connected to the WLAN-USB adapter UFZ 132 (item no. 71 459), allows for the streaming of television broadcasts. With 3 years manufacturer's warranty on the exterior unit."The Big One"Incl. control unit CAP converter (dimensions W 22 x H 3.5 x D 17 cm)Automatic alignment to other satellites when changing channelsGPS receiver for quick alignment of the antenna in about 1 minuteTwin LNBDish size 85 cmWeight 12 kg, installation height 17 cm

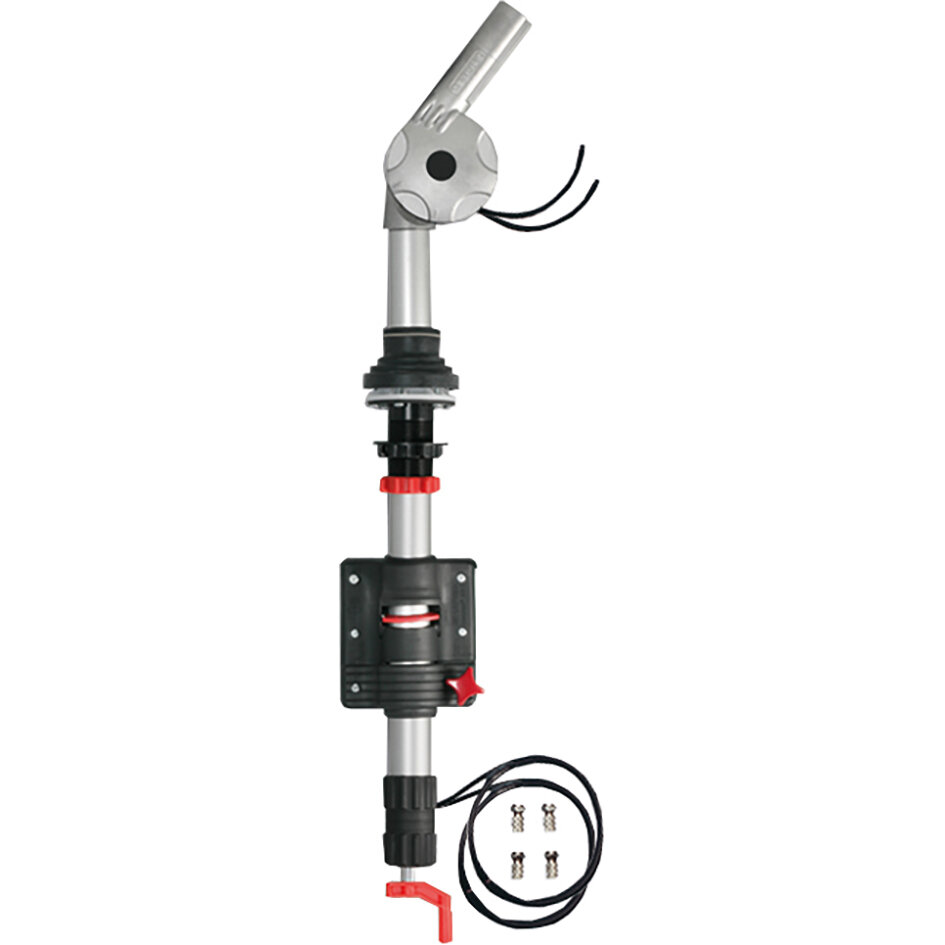

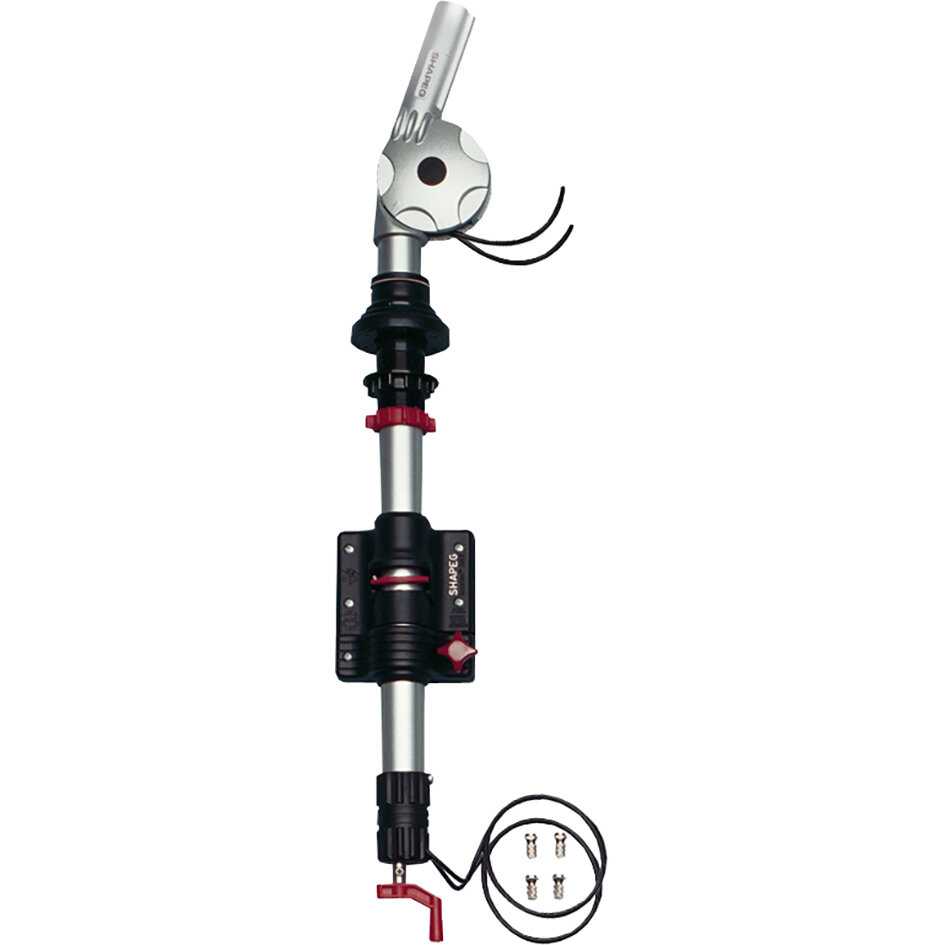

Satellite Articulated MastsFor optimal installation and quick alignment of the flat antenna from inside the vehicle. The articulated masts are made of rustproof and seawater-resistant duraluminium, the rod ends are made of injection-moulded aluminium.Serves for mounting the BAS 66 Skew on a caravan or motorhome and is equipped with 2 retracted connection cables and 4 F plugs; including mounting bracket and roof seal.

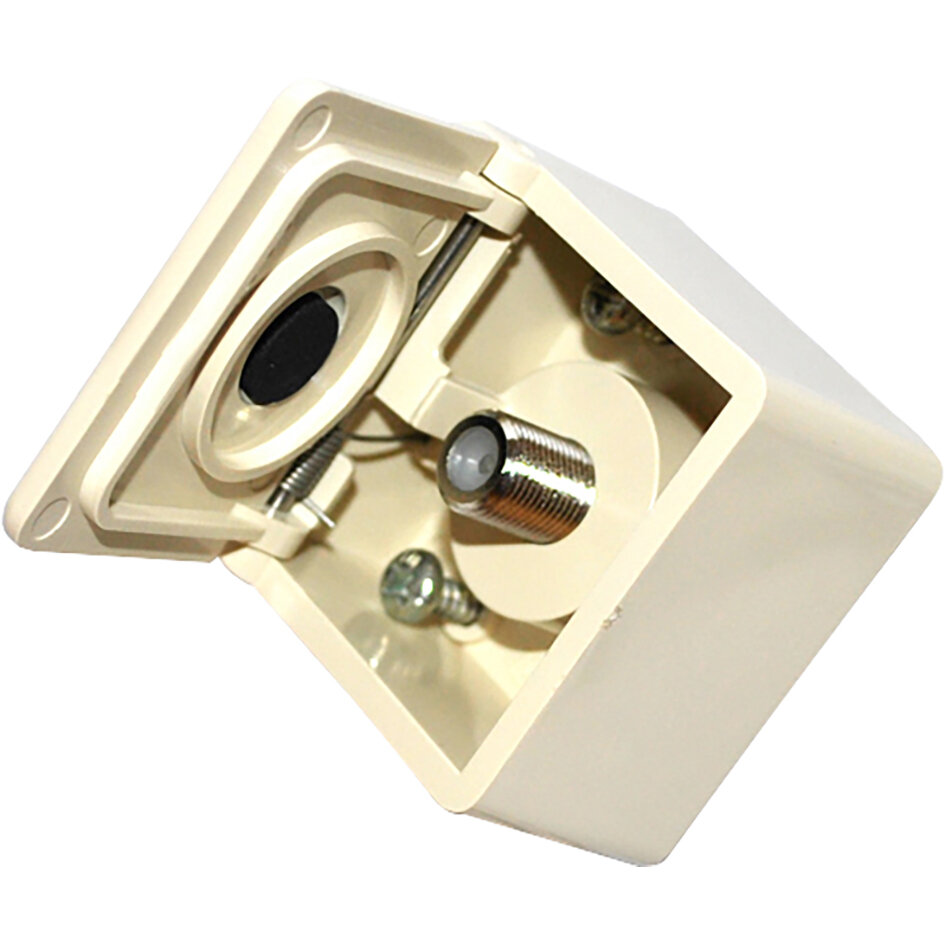

Splash-proof socket in F-technology with 5 m coaxial cable and F-plug. Dimensions W 44 x D 44 x H 29 mm.

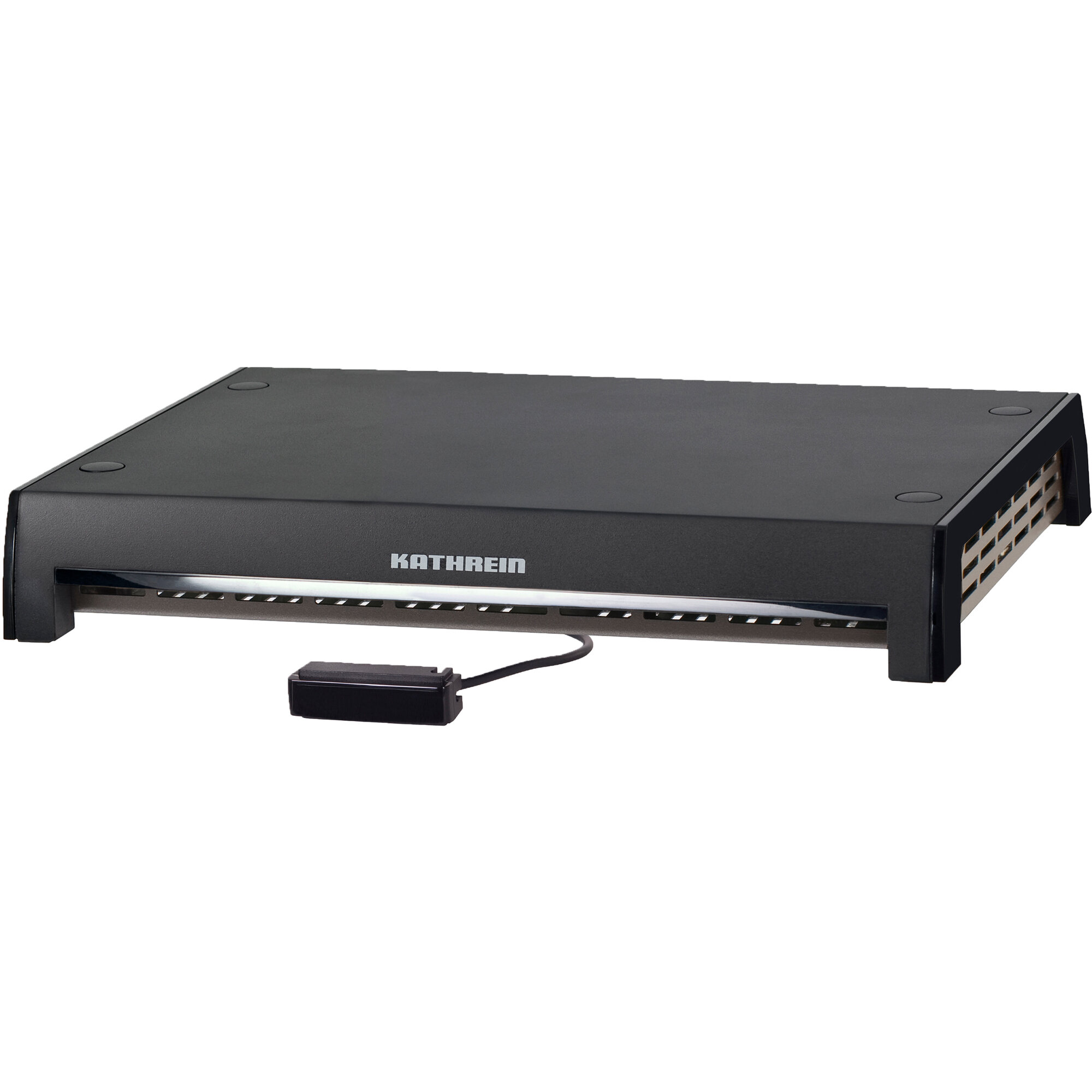

Replaces the receiver in connection with an older, fully-automatic satellite system by Kathrein. Please note: to retrofit, a firmware update of the old CAP exterior unit is required, which is done at Kathrein service points.

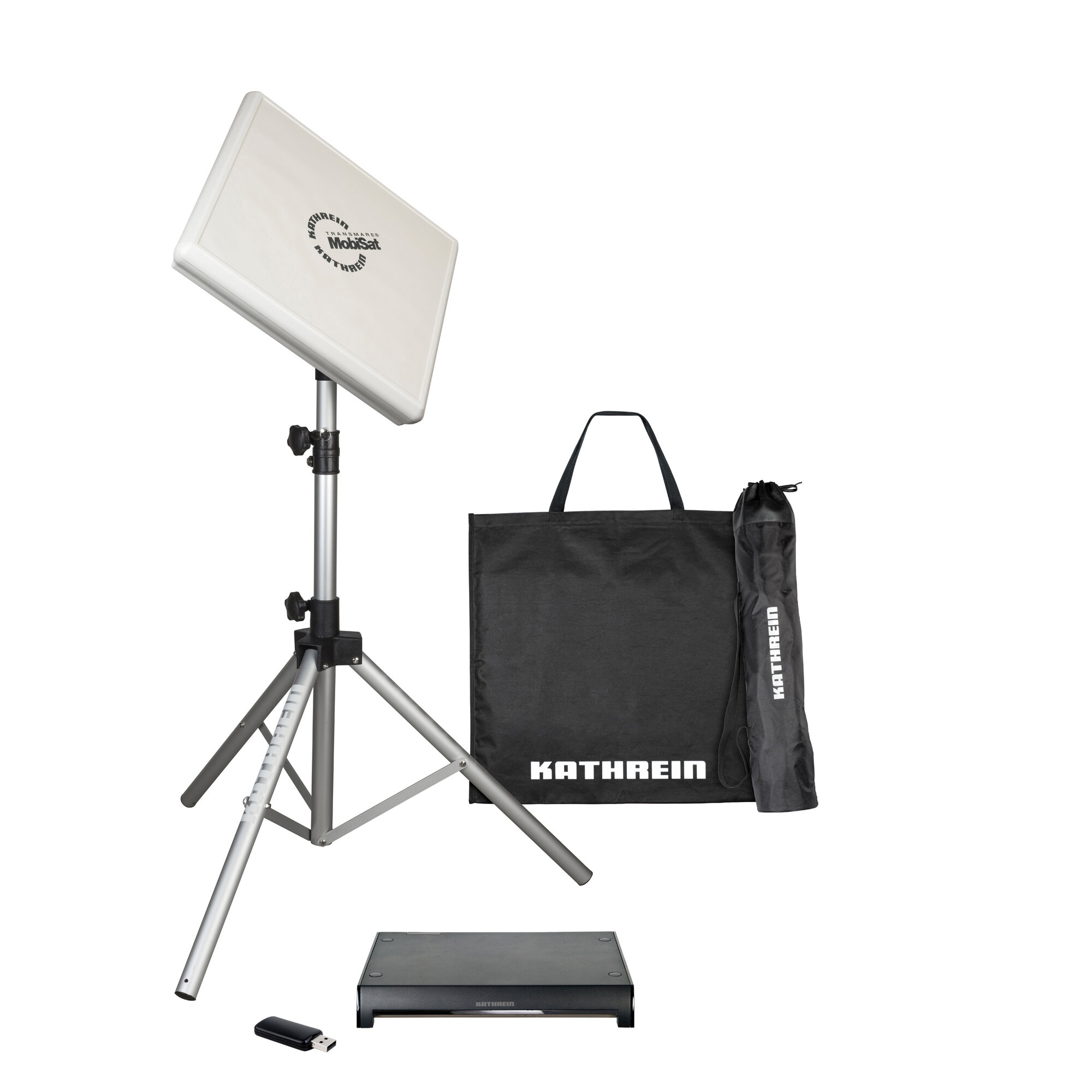

With this antenna set a low-priced and space-saving set was created as an alternative to the fully automatic satellite system. Perfect, if you have no satellite reception directly at the vehicle, e.g. if you are shaded by trees and you want to place the system in some distance to the vehicle. The interaction of the supplied components with the revised "CAPcontrol" app (Android and iOS) is optimally coordinated. As soon as all components are set up and connected, the antenna is aligned in 60 seconds.Functionality:The heart of the antenna set is the CAP converter, which is connected between the flat antenna and the TV set. Together with the USB WLAN adapter UFZ 131, these two components activate functions never seen before.Language wizard during setting11 satellites presetAfter installation of the "CAPcontrol" app on your smartphone/tablet the simple alignment can start Scope of delivery:Flat antenna BAS 66 (with twin LNB), tripod, adapter joint, CAP converter (dimensions W 22 x D 17 x H 3.5 cm), USB-WLAN adapter UFZ 131, 15 m coaxial cable, inclinometer HDZ 66 and carrying bags for tripod and antenna.The app "CAPcontrol" (available for Android and iOS) in connection with the CAP converter and the USB WiFi adapter UFZ 132 gives acoustic and visual direction how the satellite antenna has to be aligned: first, the right elevation is adjusted ("Elevation", steps 1 – 3), then the inclination ("Azimut", steps 4 – 5).

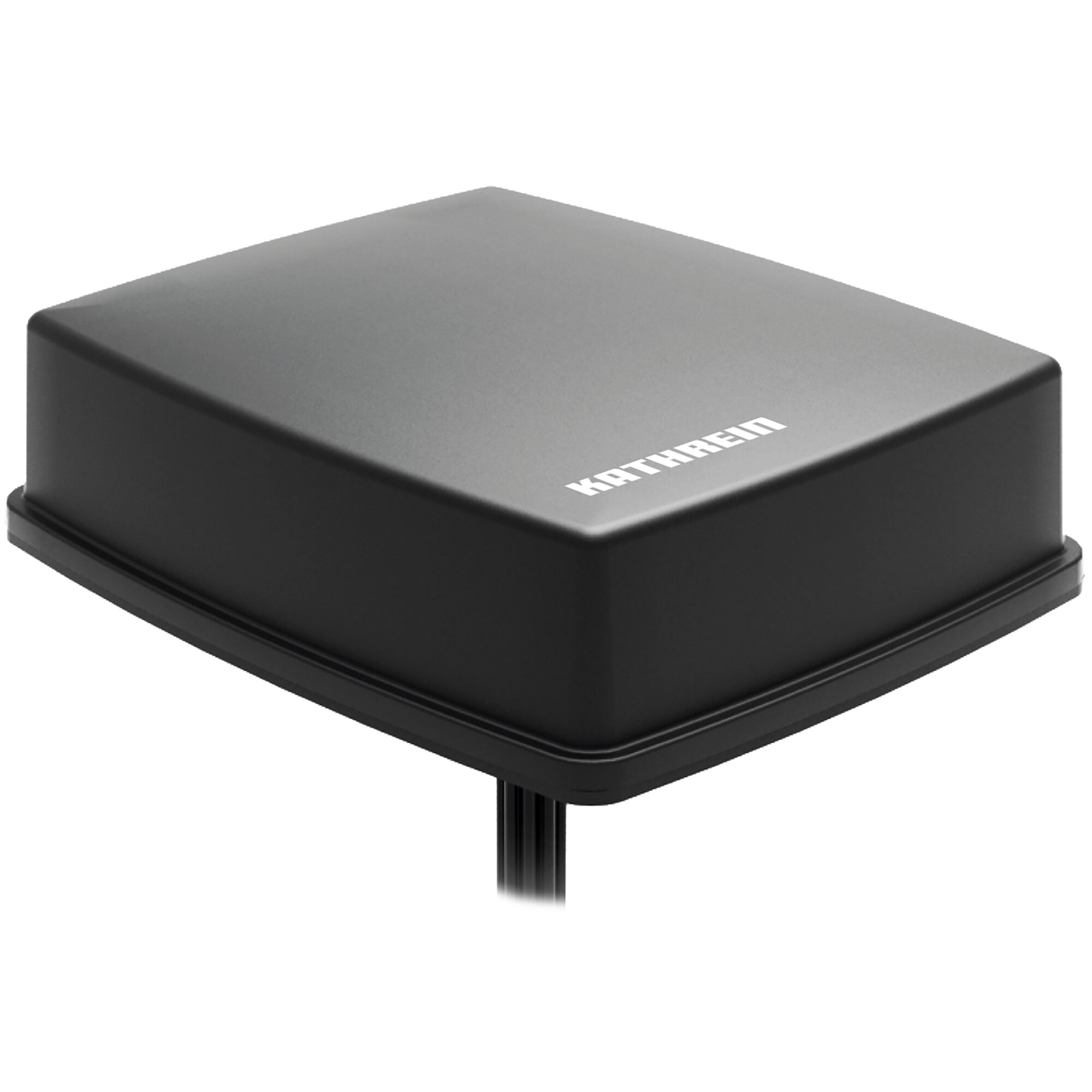

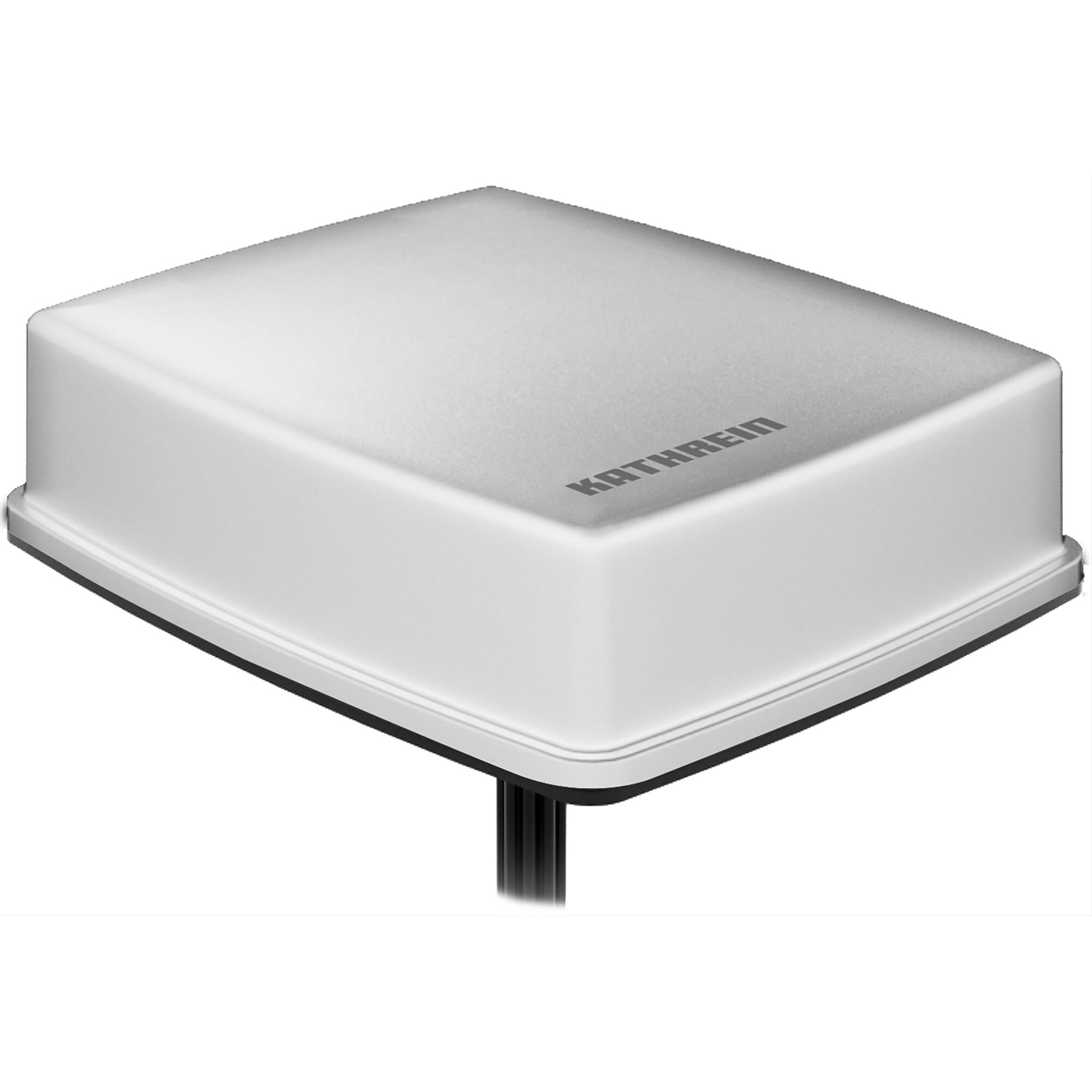

The Kathrein WiFi and mobile network router sets transport you into the internet quickly and easily at every site. Thanks to its two SIM card slots provides you with the possibility to access 2 LTE networks all the time without changing the cards. The user-friendly user interface of the router shows you at one glance which networks are available and at which signal strength, making it very easy to switch between networks. The router can be configured easily via the web interface. Moreover, via web, software updates are installed automatically. The roof antenna is designed for the 5G standard and can process large amounts of data. However, it can also receive LTE signals. The router processes the full 5G capacity in addition to WiFi.FindMyCaravan functionWith this function, you can have the GPS data of your motorhome or caravan sent to you at any time by text message.Outdoor antenna features:LTE / 5G reception4 5G, 1 GPS and 2 WLAN antennasDimensions W 19.9 x H 5.4 x D 16.7 cmWeight approx. 550 gFeatures LTE / WiFi router:5G reception (MIMO), LTE or WiFi2 SIM card slots for the use of different networks7 antenna ports, 4 Ethernet ports, 1 USB portGerman service hotline, made in EU12 / 230 V connectionLTE router W 13.2 x H 4.5 x D 9.6 cmWeight 533 g

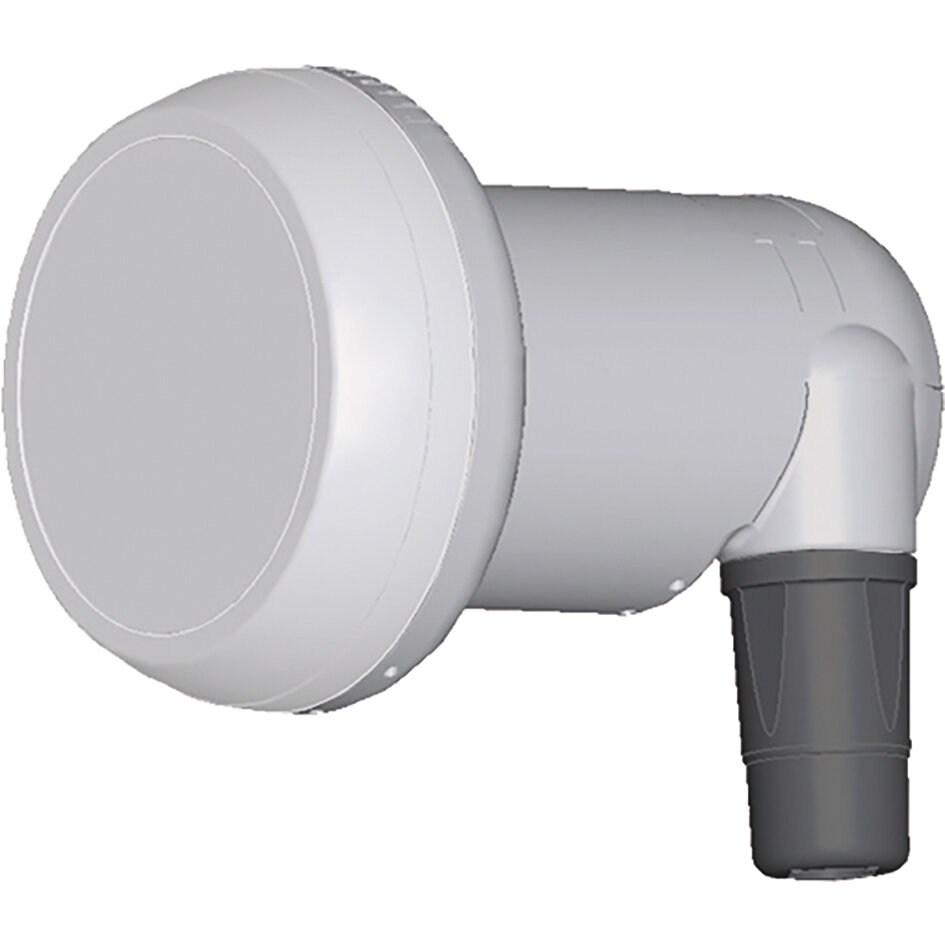

The Kathrein-Euroline universal power supply systems are suitable for satellite reception systems with a 40 mm LNB mount. They are designed for receiving satellites in the Ku-band, e.g. Astra, Eutelsat, Türksat, Hispasat, etc. All LNBs are HDTV/DVB-S2 compatible.

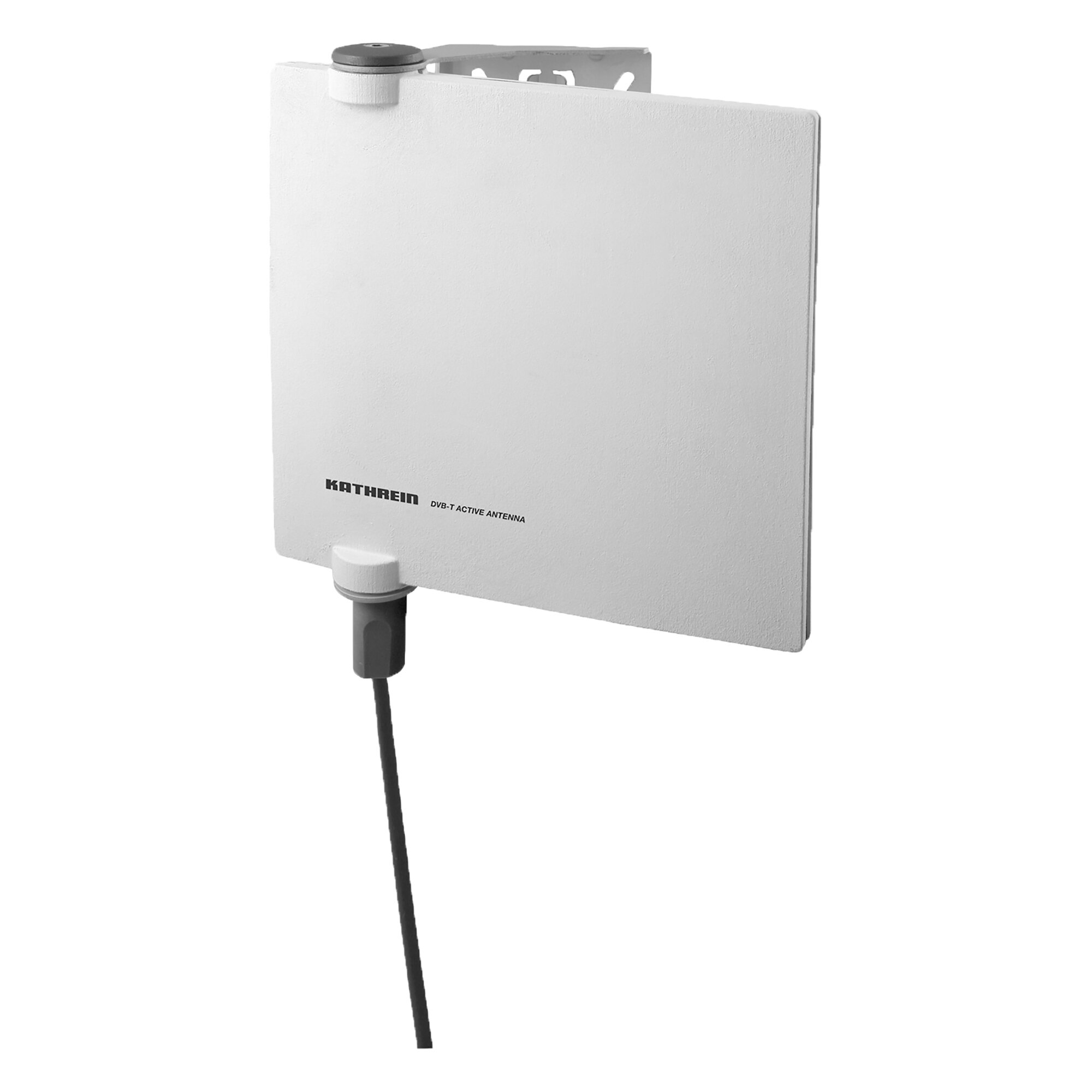

This active DVB-T/T2 outdoor antenna is perfect for outdoor use. Power (5 V / 30 mA) is supplied via the coaxial cable from the DVB-T/T2 receiver. The antenna comes with fastening material for installation, e.g. to the aluminium mast HDM 135 (item no. 72 506, see catalogue page 853). Including 10 m connection cable and F and IEC plug. Dimensions L 20.4 cm x H 19.6 cm, weight 1.1 kg.

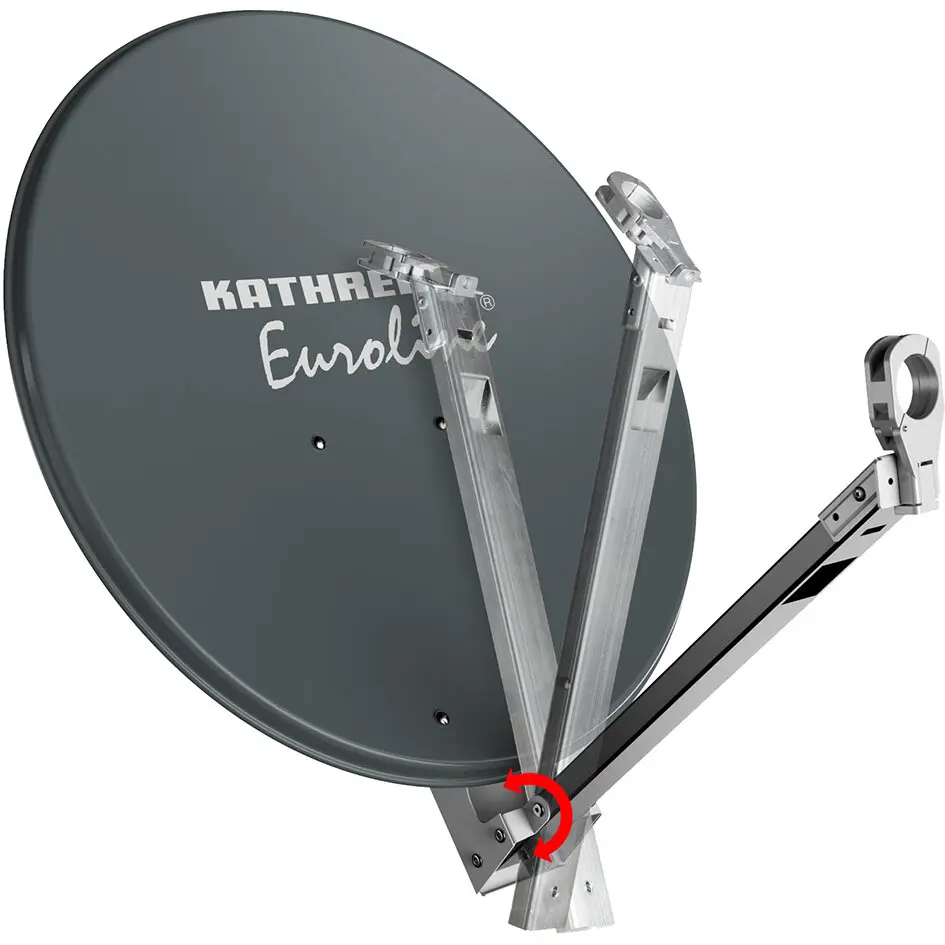

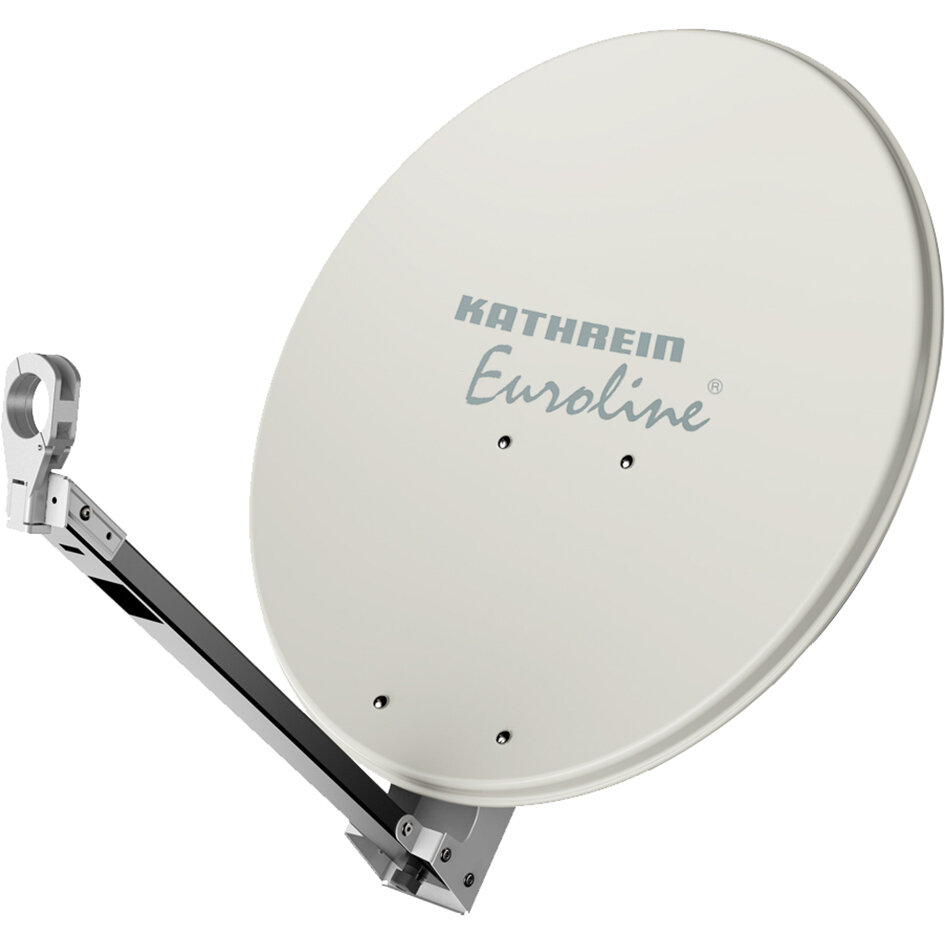

The offset parabolic antenna KEA 650 consists of a powder-coated mirror (ø 65 cm) made of aluminium and is equipped with a foldable LNB support arm also made of aluminium. Mast and locking clamps made of galvanised sheet steel are completely pre-assembled at the rear. Weight 4.5 kg, LNB is not included in delivery.

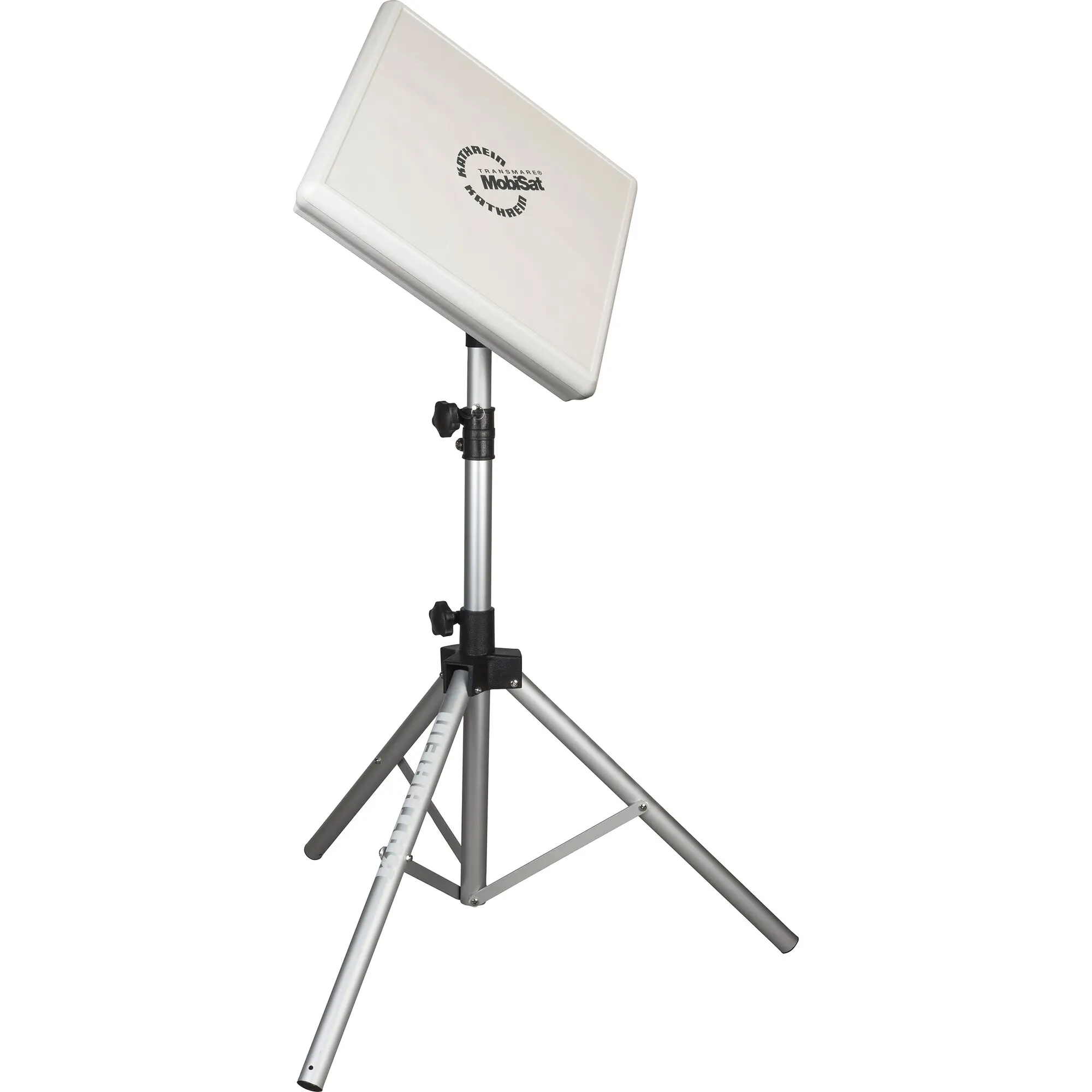

The antenna set for manual satellite reception consists of flat antenna, satellite tripod, adapter joint, 15 m coaxial cable and carrying bag. The adjustment and satellite search is done with the help of a compass and spirit level app (depending on the smartphone and operating system, appropriate apps are already installed). Dimensions flat antenna W 50 x D 50 x H 12.5 cm, weight 6.5 kg

Satellite Articulated MastsFor optimal installation and quick alignment of the flat antenna from inside the vehicle. The articulated masts are made of rustproof and seawater-resistant duraluminium, the rod ends are made of injection-moulded aluminium.Serves for mounting the BAS 66 Skew on a caravan or motorhome and is equipped with 2 retracted connection cables and 4 F plugs; including mounting bracket and roof seal.

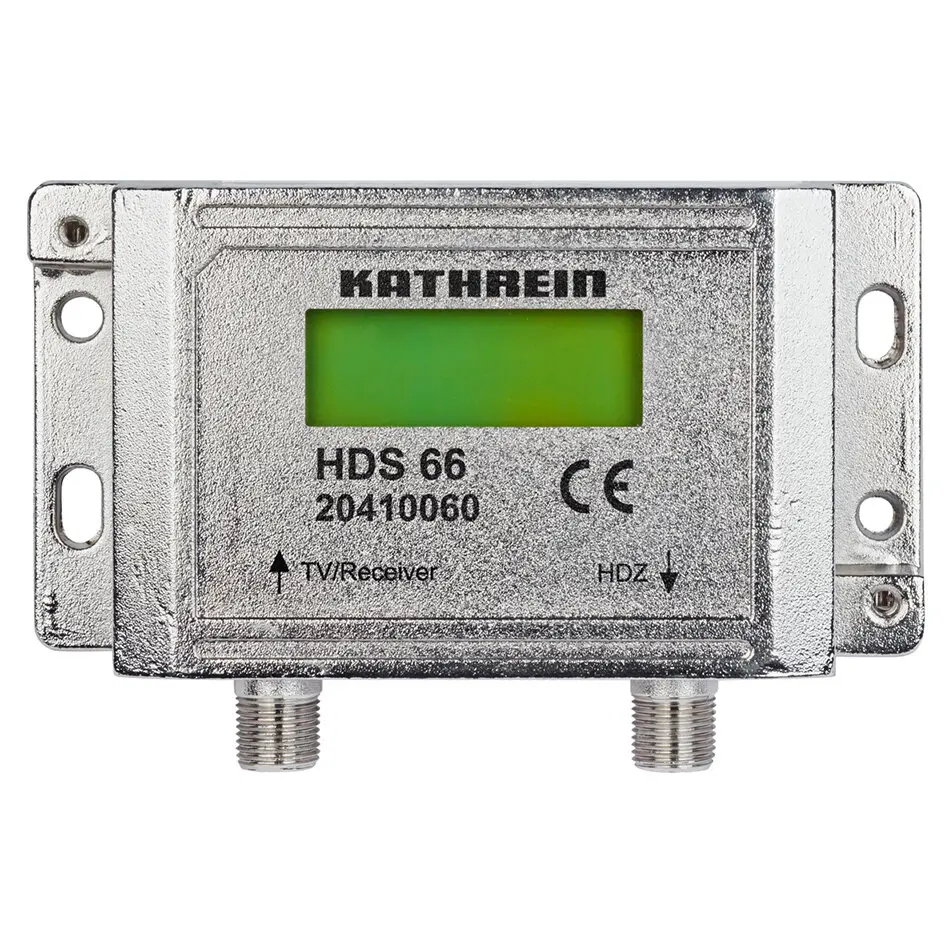

Displays the current elevation of the HDZ 66 Skew inclinometer and, in conjunction with the azimuth/ elevation table, allows the antenna to be aligned.

The offset parabolic antenna KEA 650 consists of a powder-coated mirror (ø 65 cm) made of aluminium and is equipped with a foldable LNB support arm also made of aluminium. Mast and locking clamps made of galvanised sheet steel are completely pre-assembled at the rear. Weight 4.5 kg, LNB is not included in delivery.

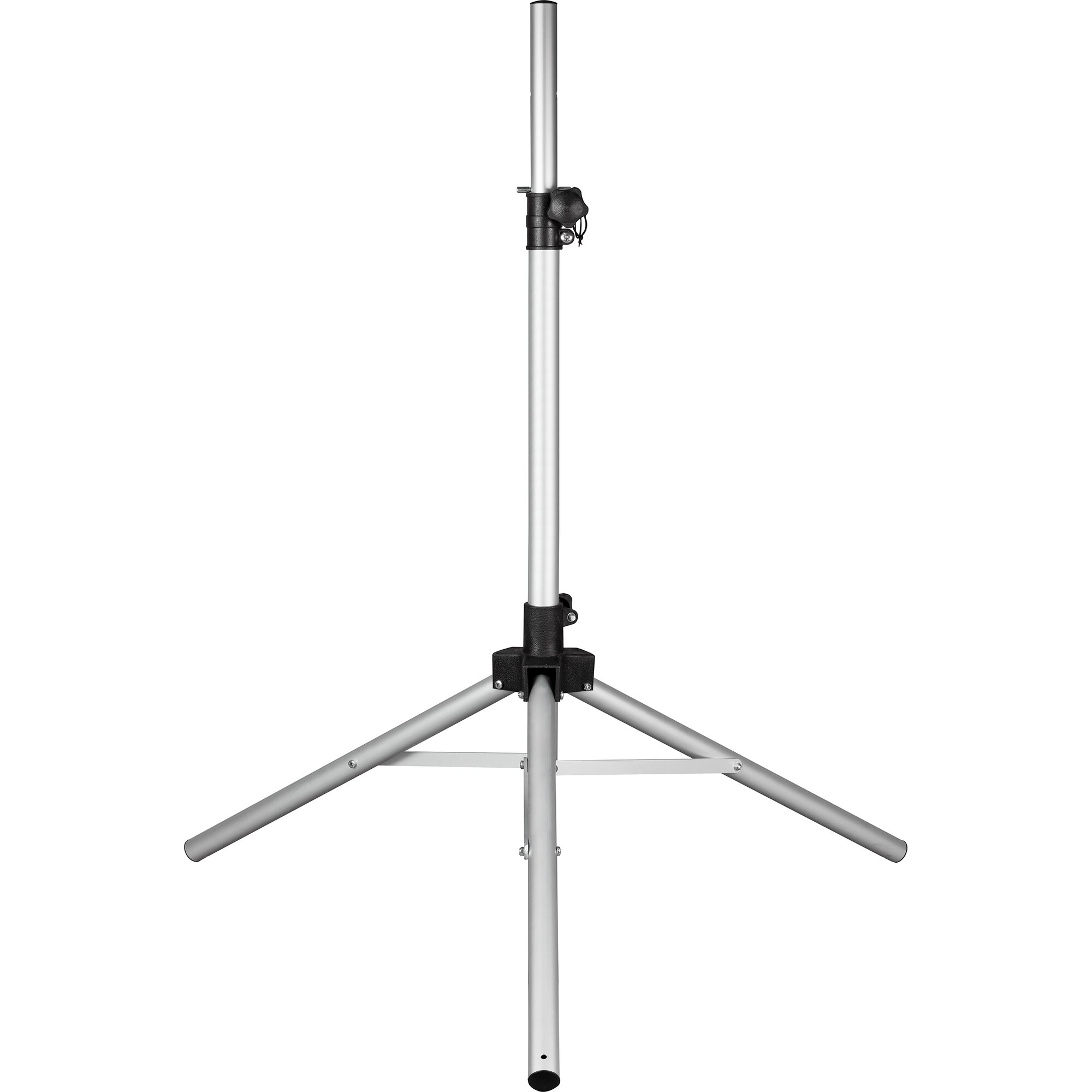

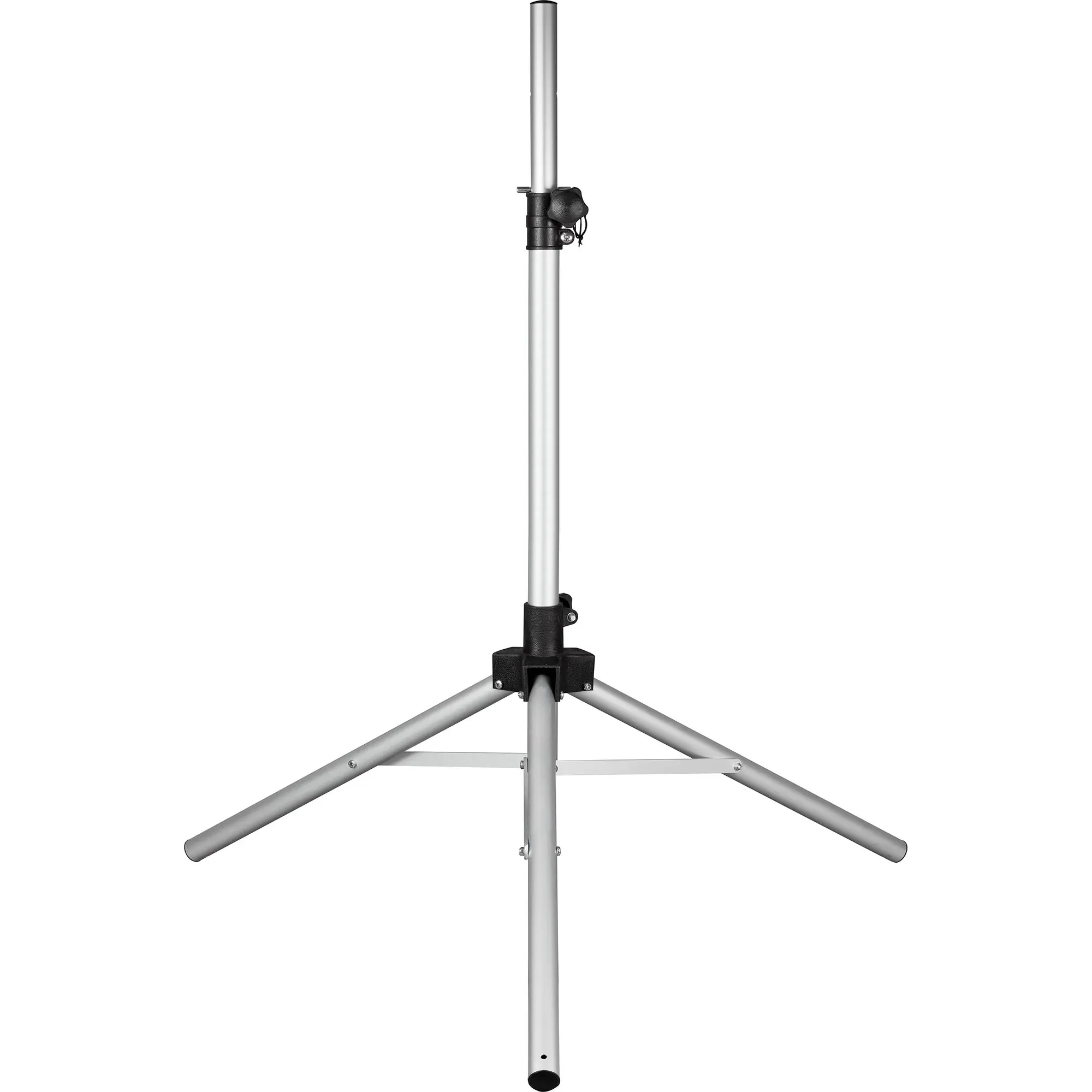

The light and very stable tripod made of 2 mm thick aluminium is ideal for variable installation of the satellite antennas Sat-Antennen KEA 650. It is extendable and rotatable, so the antenna can be easily aligned. Incl. pegs for ground stabilisation and carrying bag; weight 2.4 kg.

The Kathrein WiFi and mobile network router sets transport you into the internet quickly and easily at every site. Thanks to its two SIM card slots provides you with the possibility to access 2 LTE networks all the time without changing the cards. The user-friendly user interface of the router shows you at one glance which networks are available and at which signal strength, making it very easy to switch between networks. The router can be configured easily via the web interface. Moreover, via web, software updates are installed automatically. The roof antenna is designed for the 5G standard and can process large amounts of data. However, it can also receive LTE signals. The router processes the full 5G capacity in addition to WiFi.FindMyCaravan functionWith this function, you can have the GPS data of your motorhome or caravan sent to you at any time by text message.Outdoor antenna features:LTE / 5G reception4 5G, 1 GPS and 2 WLAN antennasDimensions W 19.9 x H 5.4 x D 16.7 cmWeight approx. 550 gFeatures LTE / WiFi router:5G reception (MIMO), LTE or WiFi2 SIM card slots for the use of different networks7 antenna ports, 4 Ethernet ports, 1 USB portGerman service hotline, made in EU12 / 230 V connectionLTE router W 13.2 x H 4.5 x D 9.6 cmWeight 533 g
