Short arm hinge for thin swing doors from 14 mm door thickness. Caravan hinge opening angle 95°, drilling pattern: 38/7.5 mm, without automatic closing mechanism.

Closure and counterpart in white. The door opens automatically when you press on the door surface. The door can also be locked by applying light pressure against the door surface.

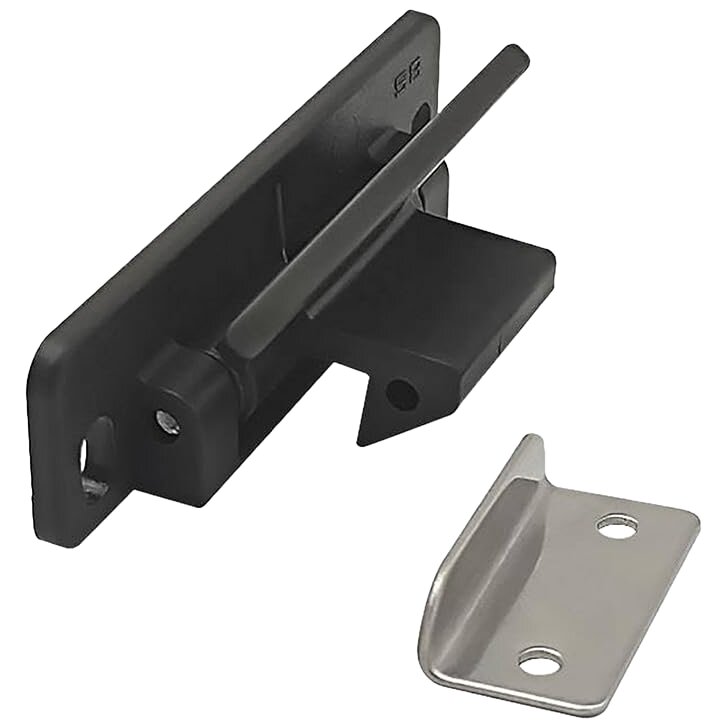

The rear grip latch is ideally suited for applications where doors or hatches protrude beyond the frame. Thanks to its thoughtful design, it can be easily installed on doors or hatches whose length exceeds the frame height.

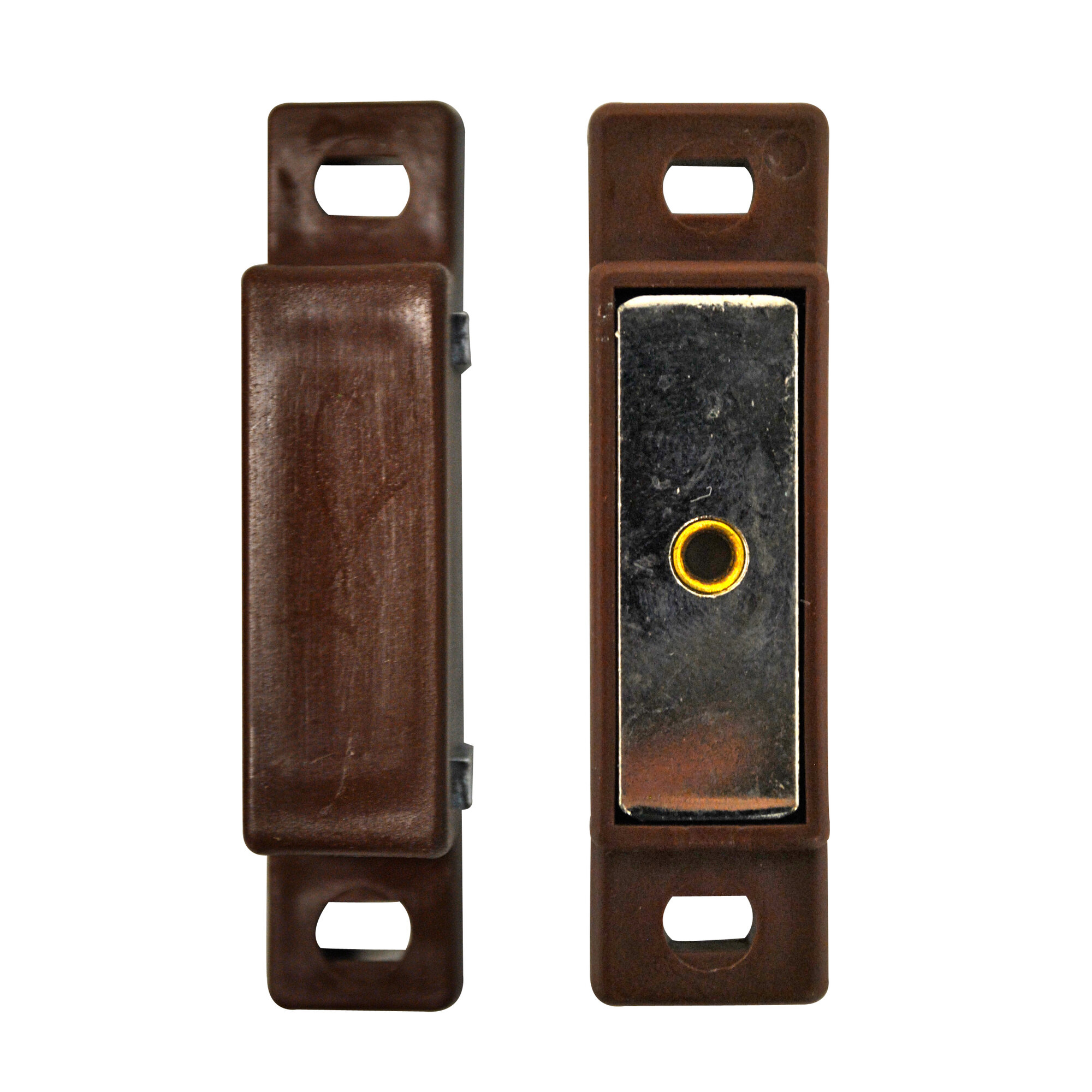

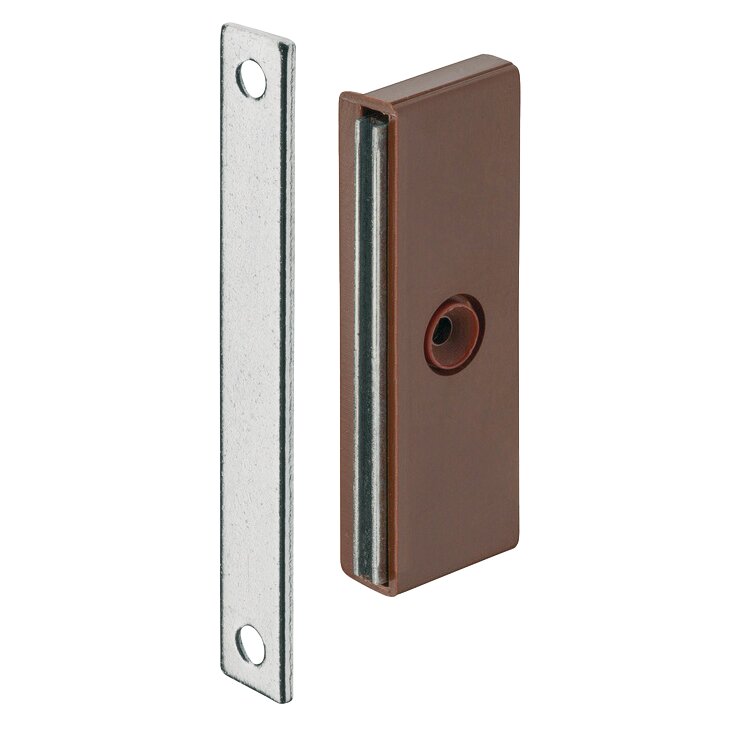

Magnetic lock, holding force 5.0 kg, attached via screws, flat design

for wood thickness 16 mm; ø 3.5 cm.

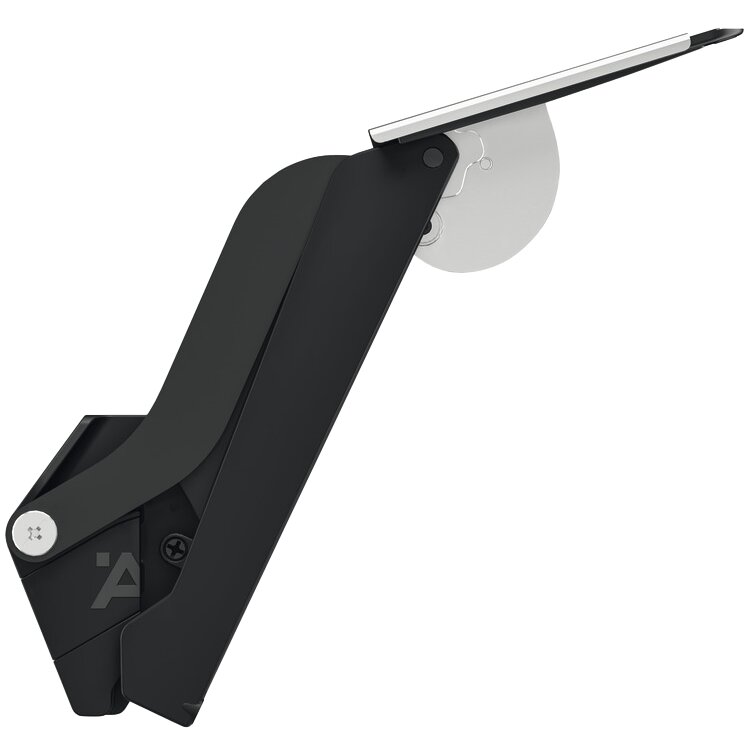

Lift-up fixing for standard applications with handle, for single hatches made of wood or with aluminium frame (19 – 21 mm or from a width of 45 mm). Fixing for screwing with pre-assembled Euro screw, front tool-free, with front mounting for sliding onto the lever arm. Adjustment options: height, side, tilt, holding force Opening angle: 90° or 107° Scope of delivery: Set of lift-up fixings (1 each left/right) 2 front mounting plates with pre-assembled screws Installation instructions incl. paper drilling template for the side wall

Profile pole

Magnetic lock, holding force 5.0 kg, attached via screws, flat design

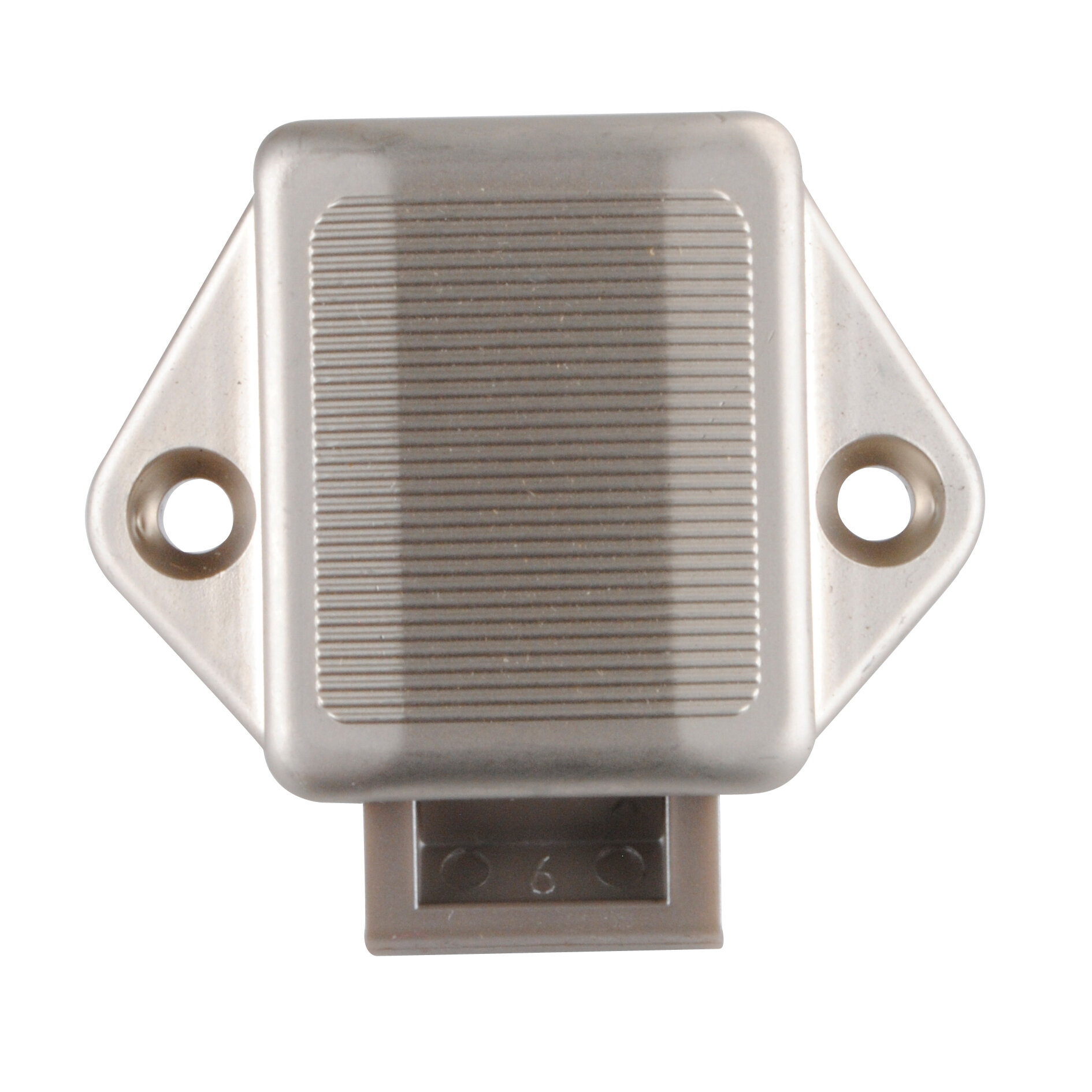

With rosette for Push-Lock Mini, for wood thickness 16 mm.

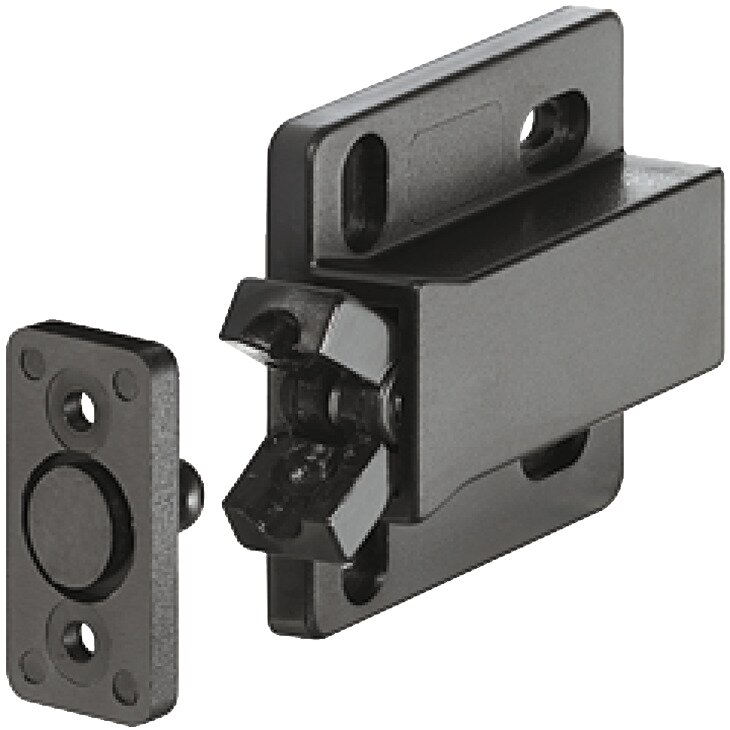

Open: by applying light pressure on the door, a spring mechanism is triggered, allowing the door to open slightly. Close: push the door all the way until it stops, so that the spring mechanism is tensioned and the door locks.

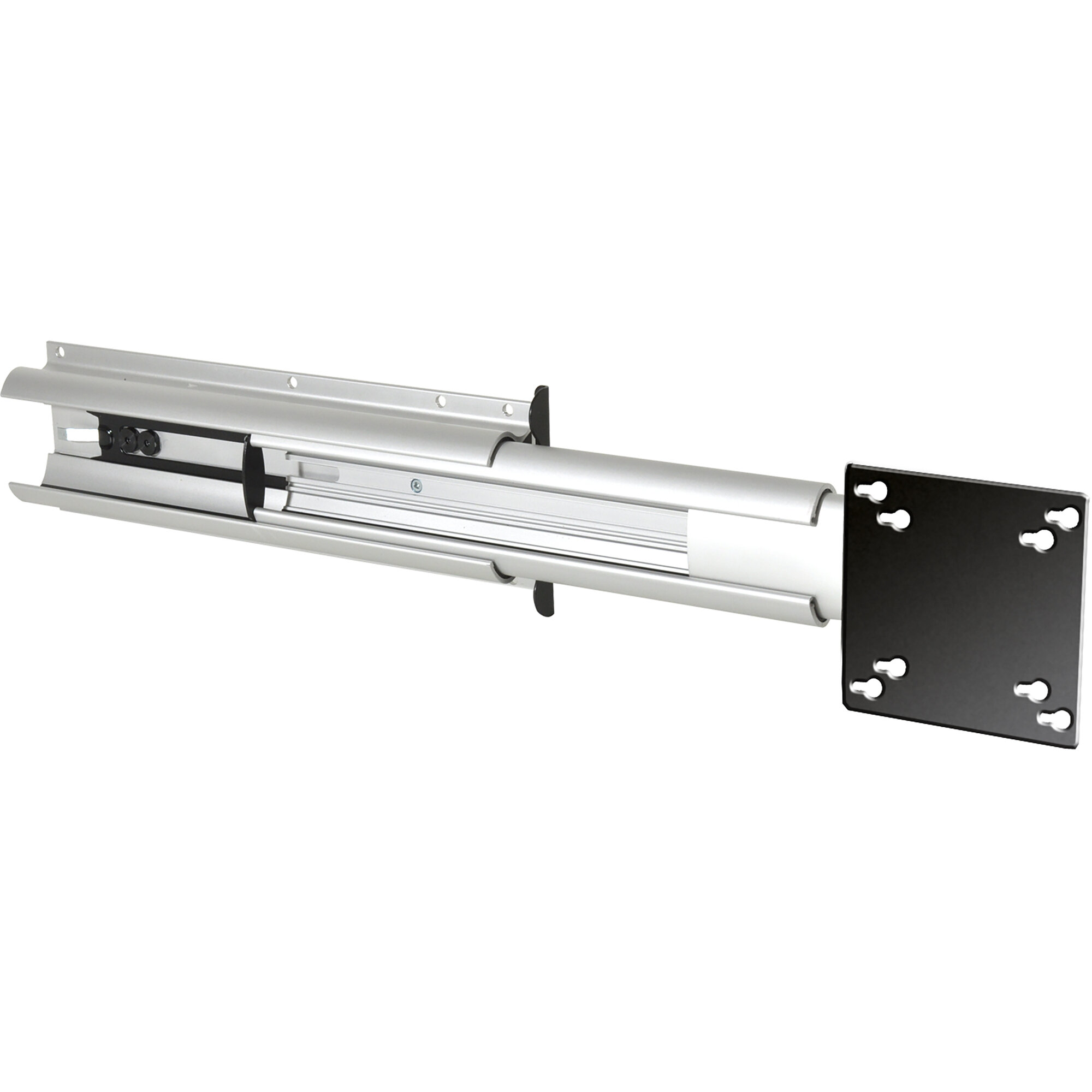

Swivelling Holder made of aluminium and plastic, which locks firmly when pushed in. Swivelling area 180 degrees vertically and horizontally. For cabinet installation, suitable for flat screens with a screen diagonal of 19”, for installations to the exterior wall, screen diagonals of up to 32” are possible. VESA standards 75 and 100, load capacity 8 kg, max. extension 50.2 cm, extended rail length approx. 70.8 cm at an installation depth of 40.3 cm. Dimensions W 13 x H 8.1 x D 39.7 cm, weight 2.7 kg.

For wood thickness 16 mm; ø 3.4 cm. Can be used for Push-Lock espagnolette locks or screw-on locks.

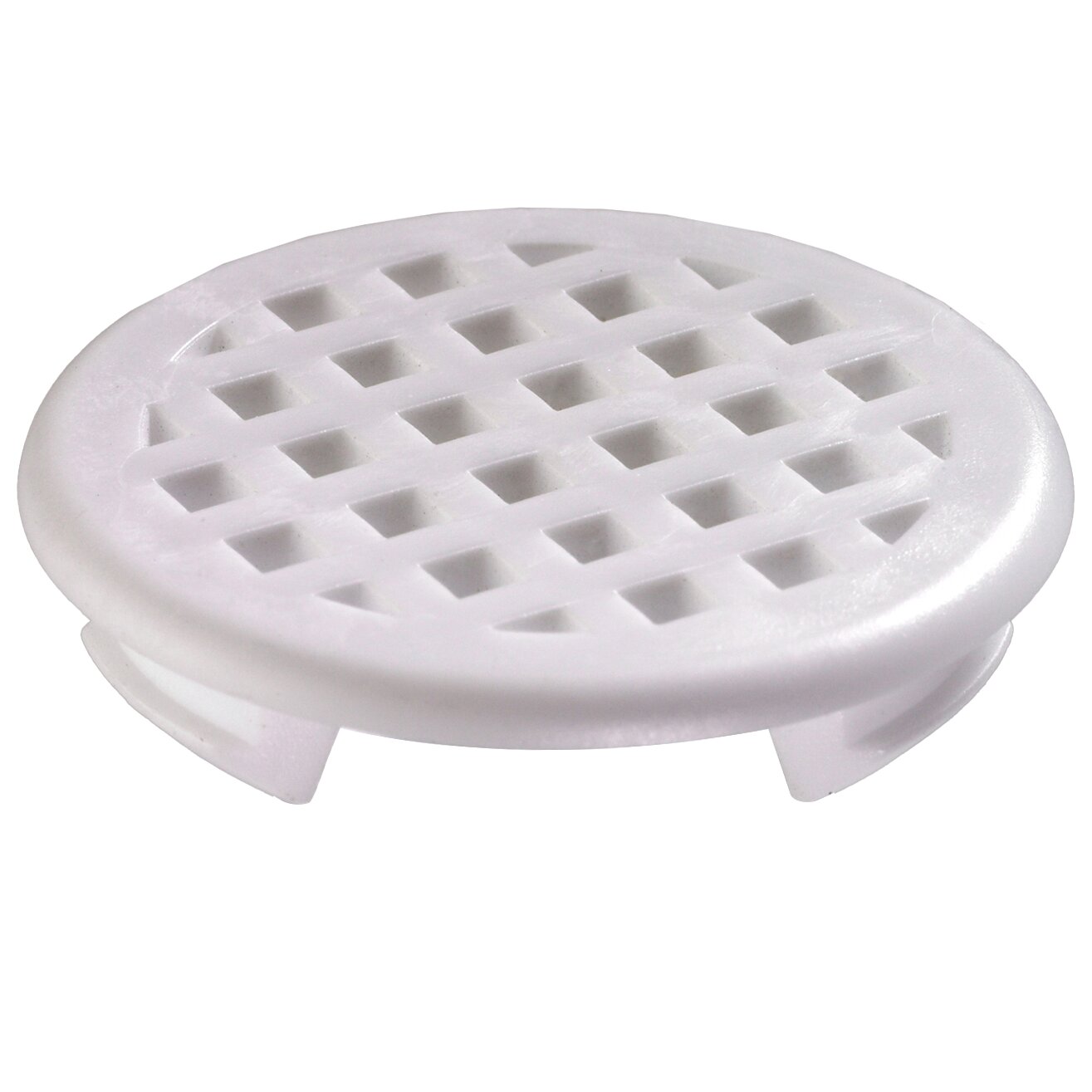

Ventilation grille, plastic, gridded, with detents, round, white, ø 37 mm.

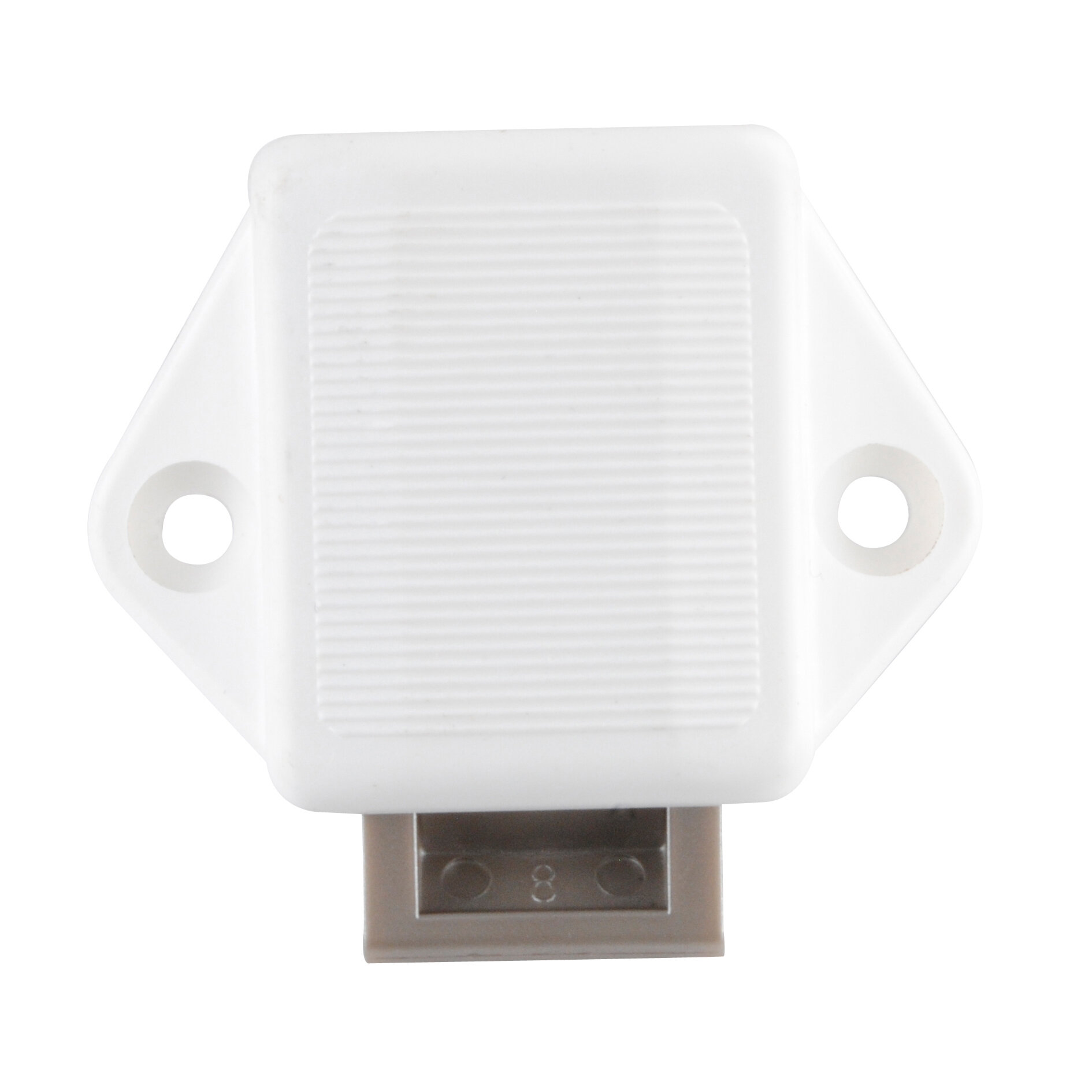

Lock with a push-button mechanism. If you press the button, it springs forward and serves as a door handle. Backset 15 mm.

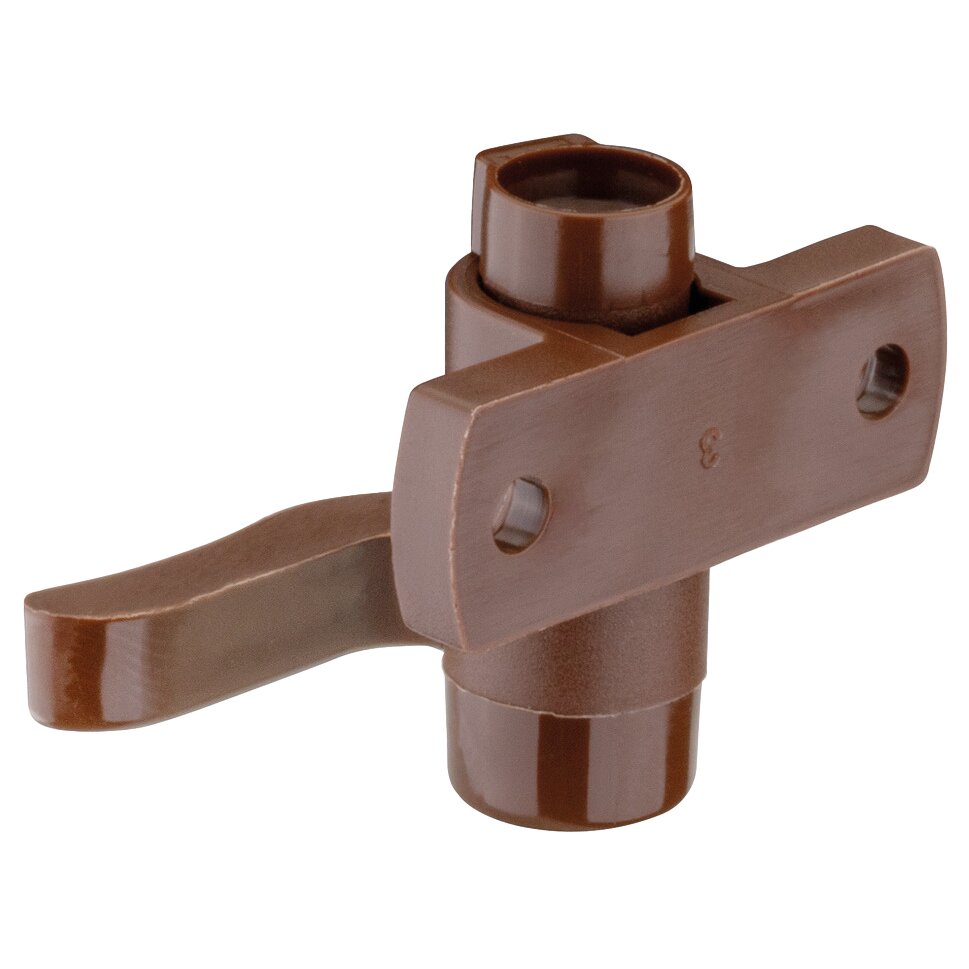

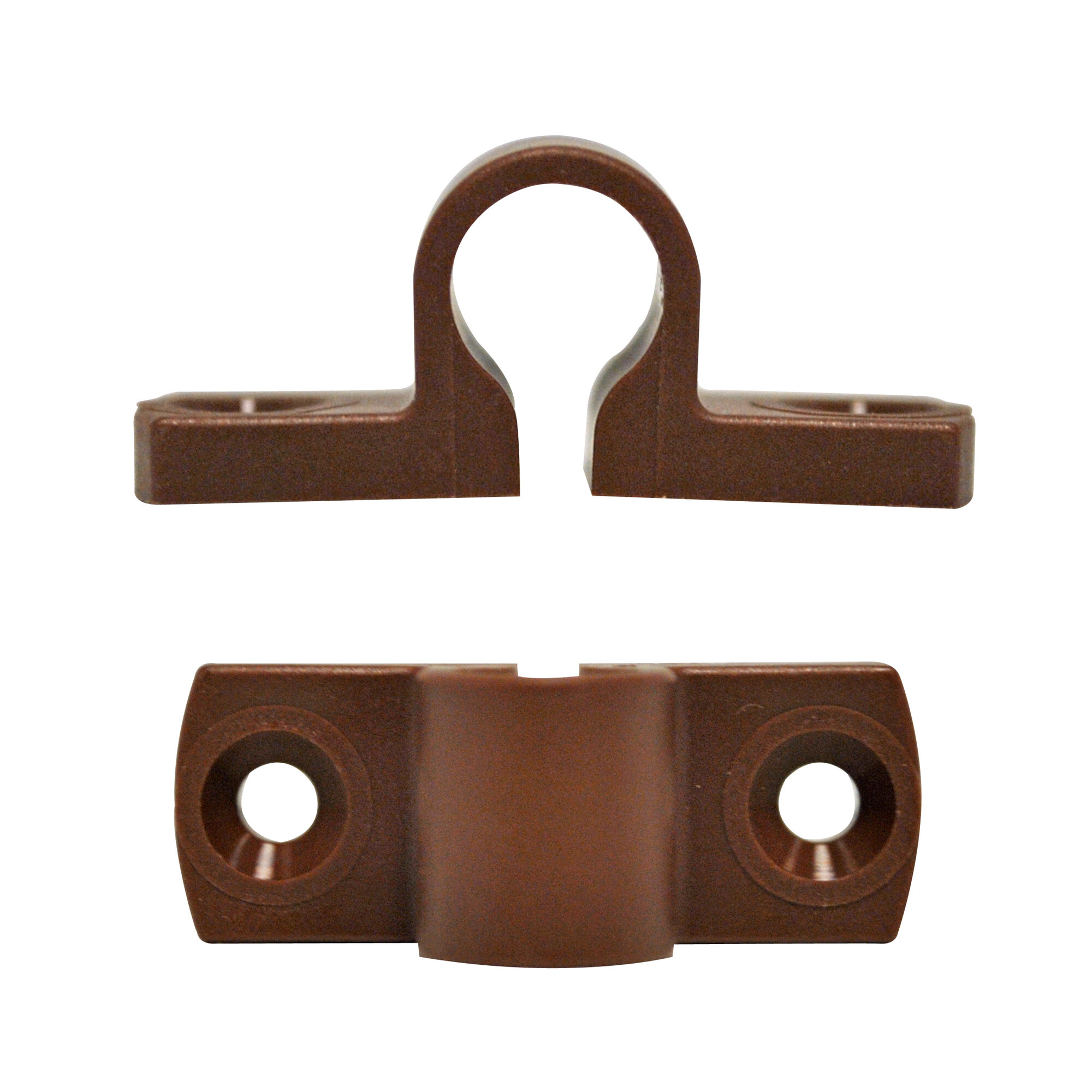

Locking catch for Push-Lock espagnolette locks. Suitable for profile rods with a diameter of 6 mm.

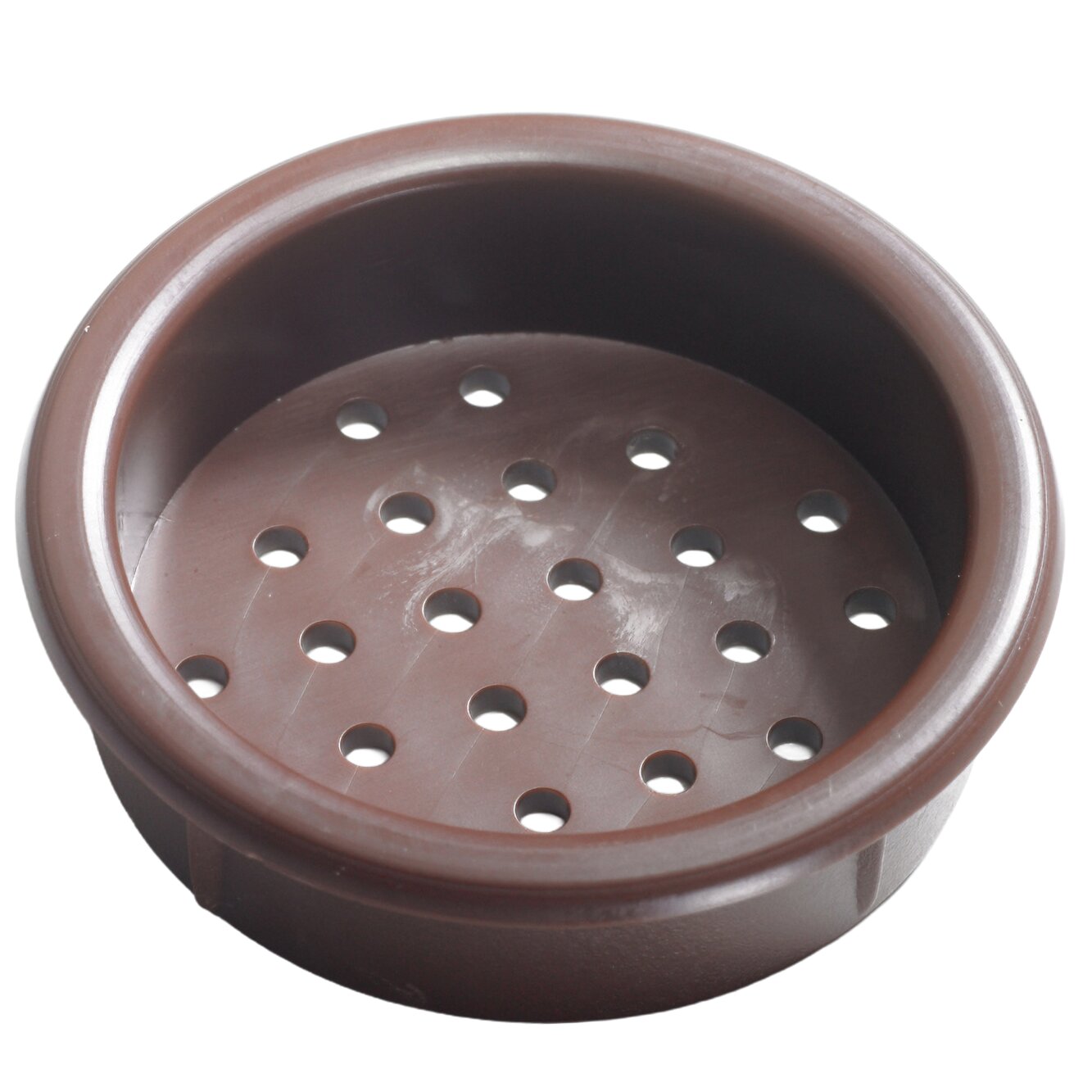

Ventilation grille (white) made of plastic incl. detent ø 37 mmDesign: with cover rimInstallation: to insertPerforation 2.1 x 2.1 mmVentilatione grille (brown) made of plastic ø 39 mmDesign: with cover rimInstallation: to insertPerforation: ø 2 mm

Lock with push-button mechanism.

For wood thickness 16 mm; ø 3.4 cm. Can be used for Push-Lock espagnolette locks or screw-on locks.

Screw-on lock, adhesive force 6 kg, with counterpart.

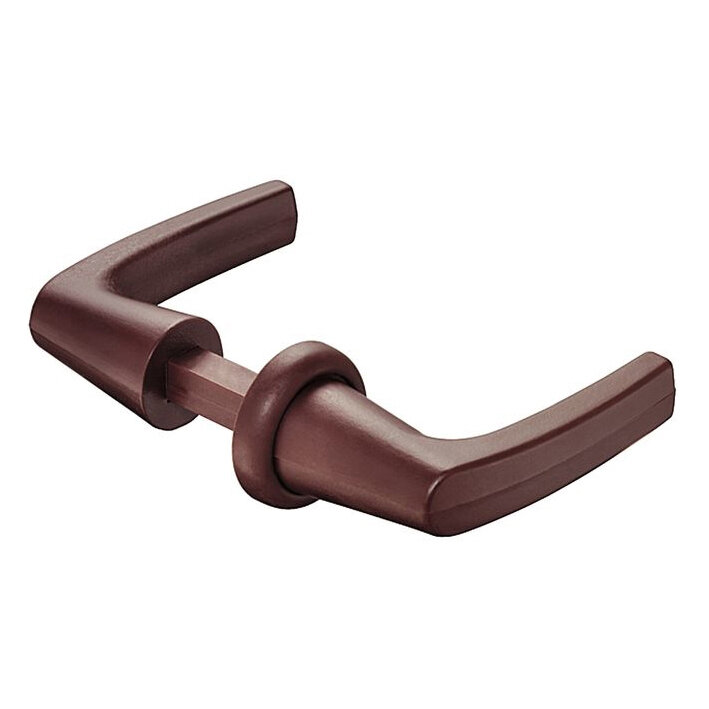

With 7 mm square pin.

Lock with a push-button mechanism. If you press the button, it springs forward and serves as a door handle. Backset 15 mm.

screw-on

Lift-up fixing for standard applications with handle, for single hatches made of wood or with aluminium frame (19 – 21 mm or from a width of 45 mm). Fixing for screwing with pre-assembled Euro screw, front tool-free, with front mounting for sliding onto the lever arm. Adjustment options: height, side, tilt, holding force Opening angle: 90° or 107° Scope of delivery: Set of lift-up fixings (1 each left/right) 2 front mounting plates with pre-assembled screws Installation instructions incl. paper drilling template for the side wall

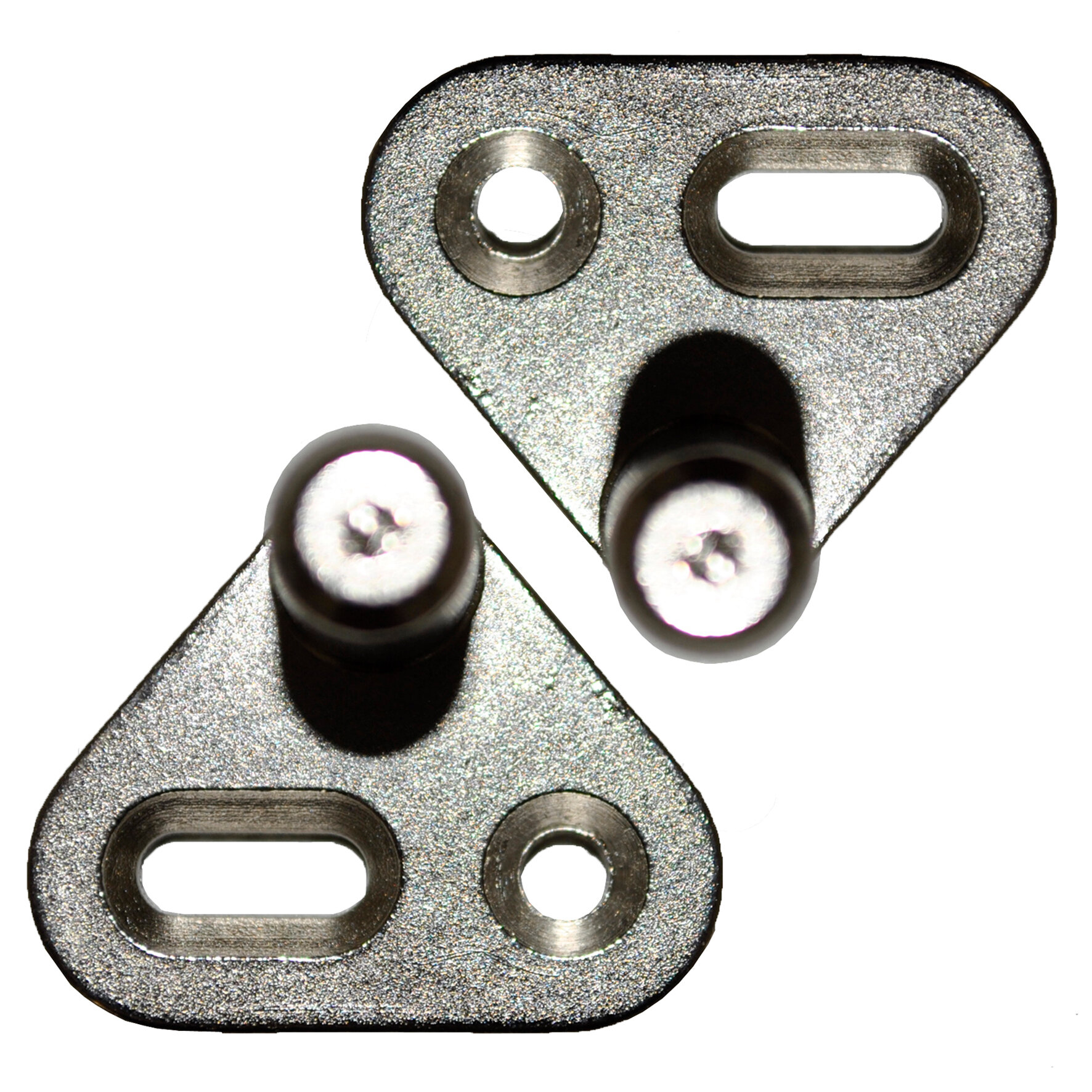

Locking bolts by Häfele.
