Produkte von Camos
Gehäusefarbe:
schwarz
|
Monitor:
CM510
4 systems with two display sizes (5” or 7”) and a black or white camera, whose integrated heating as well as IF-illumination and night-vision function provide perfect vision in every weather or lighting condition. With the camera microphones, acoustic instructions can be transferred from the back to the driver and played via the loudspeakers integrated into the display.
Modell:
CM-49W-NAV
The cameras integrated into the Camos backup video sets (technical data: see page 902) are also available individually. Supported by IR illumination, the high-quality image display of the cameras even at night-time provides perfect vision and thus, easy and hassle-free manoeuvring. The Twin cameras enable rear vision while driving and direct vision rear the vehicle upon manoeuvring. The cameras are compatible with navigation systems, moniceiver and already installed displays. Included in delivery are 18 m (13 m with the CM-5180M HD) connection cable from the camera to the display and an adapter to connect it to cinch inputs.
Variants from €197.10*
Kamera:
CM-48
Reversing Video Systems CamosThe range of reversing video systems by Camos consists of 4 cameras and 3 monitors. The compact HD cameras CM-200M HD and CM-5180M HD are situated in an aluminium housing; for the standard camera CM-48 and the twin camera CM-49, you have the choice between a black and a white metal housing. All housings are certified to IP69K (CM-5180M HD to IP68) and are protected against splash water. The monitors included in the sets are available in the sizes 4.3", 5" and 7". Camera input on all monitors can be activated manually or automatically, e.g. while reversing. Moreover, they can be operated at 12 and 24 volts and can therefore also be used in trucks.With the compact 4.3" TFT monitor and the two high-quality colour cameras, these entry-level models offer excellent image quality. Infrared LEDs and a heater ensure perfect vision in darkness and cold. In addition to the automatic white balance, a microphone rounds off the equipment of the cameras.
Whether manoeuvring on the campsite or reversing in narrow streets, the EM-902M(H-A) from Camos offers the perfect overview. With its generous 9.3” touchscreen, razor-sharp image quality and flexible camera connection, it ensures relaxed driving and safe manoeuvring. The monitor offers a split-screen function for viewing two cameras simultaneously. There are individually adjustable parking lines for the first camera and an individually adjustable marking area for the second camera. Ideal for a combination of rear view camera and discharge camera. The monitor has a built-in brightness sensor to avoid interference in different lighting conditions.Technical data:Screen diagonal 9.3” (23 cm)Resolution 1600 x 900 pixelsBrightness value 400 cd/m²Contrast ratio 1200:1Voltage 12 – 24 VOperating temperature -20 – +70 °CDimensions W 24.5 x H 9.7 x D 2.8 cmWeight 160 g
Gehäusefarbe:
weiß
|
Monitor:
CM510

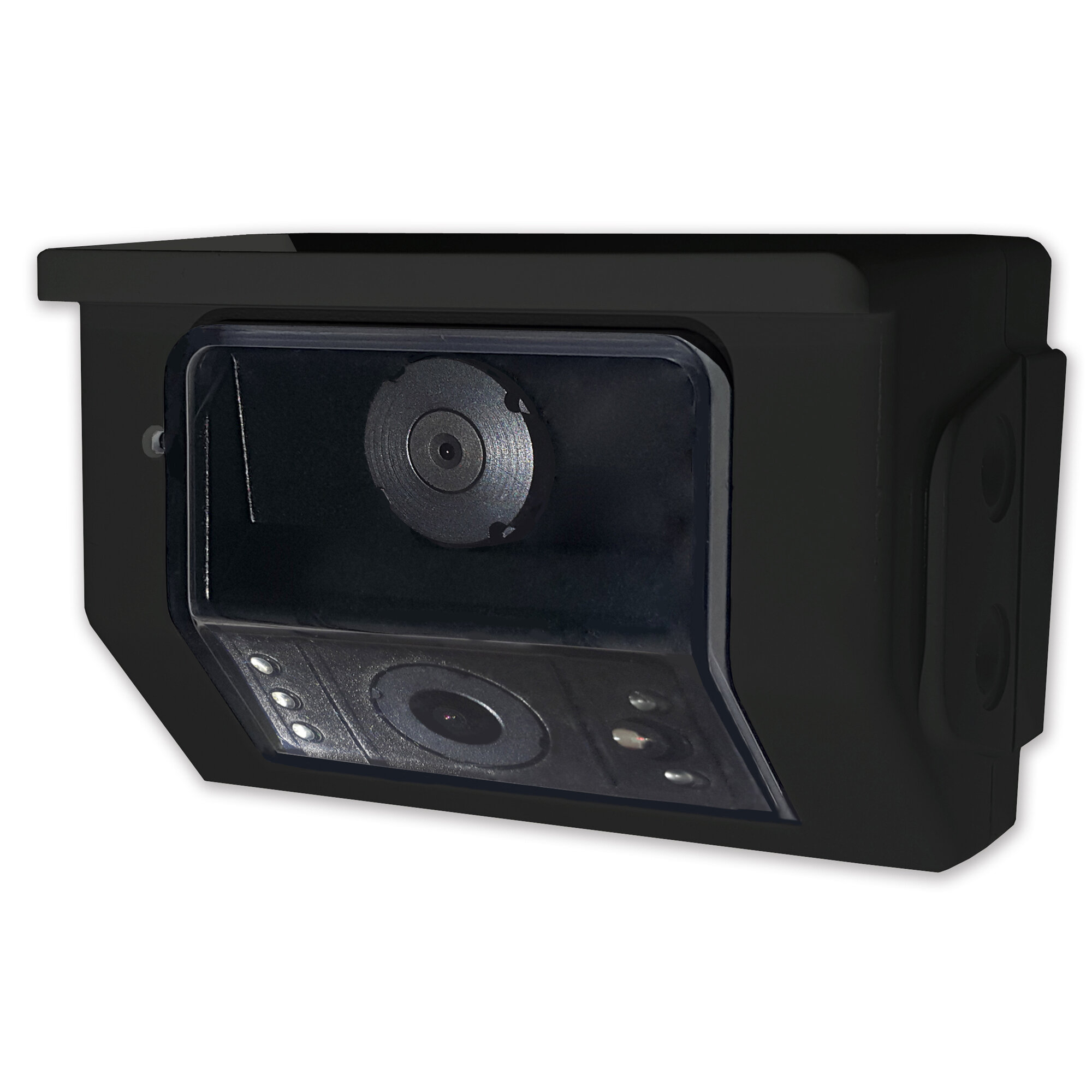

The set includes the CM-49 dual camera, optionally with a black or white housing, and a 5‘ or 7’ monitor. Thanks to the two camera lenses, you can switch between looking straight back and looking directly behind the vehicle. This means you can either watch the traffic behind you when driving forwards or see possible obstacles behind the vehicle when manoeuvring. The heating integrated in the camera as well as the infrared lighting and night vision function ensure a clear view even in bad weather or at night.
Variants from €447.90*
Kamera:
CM-48W
Reversing Video Systems CamosThe range of reversing video systems by Camos consists of 4 cameras and 3 monitors. The compact HD cameras CM-200M HD and CM-5180M HD are situated in an aluminium housing; for the standard camera CM-48 and the twin camera CM-49, you have the choice between a black and a white metal housing. All housings are certified to IP69K (CM-5180M HD to IP68) and are protected against splash water. The monitors included in the sets are available in the sizes 4.3", 5" and 7". Camera input on all monitors can be activated manually or automatically, e.g. while reversing. Moreover, they can be operated at 12 and 24 volts and can therefore also be used in trucks.With the compact 4.3" TFT monitor and the two high-quality colour cameras, these entry-level models offer excellent image quality. Infrared LEDs and a heater ensure perfect vision in darkness and cold. In addition to the automatic white balance, a microphone rounds off the equipment of the cameras.
Kamera:
CM-200M HD
Reversing Video Systems CamosThe range of reversing video systems by Camos consists of 4 cameras and 3 monitors. The compact HD cameras CM-200M HD and CM-5180M HD are situated in an aluminium housing; for the standard camera CM-48 and the twin camera CM-49, you have the choice between a black and a white metal housing. All housings are certified to IP69K (CM-5180M HD to IP68) and are protected against splash water. The monitors included in the sets are available in the sizes 4.3", 5" and 7". Camera input on all monitors can be activated manually or automatically, e.g. while reversing. Moreover, they can be operated at 12 and 24 volts and can therefore also be used in trucks.With the compact 4.3" TFT monitor and the two high-quality colour cameras, these entry-level models offer excellent image quality. Infrared LEDs and a heater ensure perfect vision in darkness and cold. In addition to the automatic white balance, a microphone rounds off the equipment of the cameras.
Gehäusefarbe:
weiß
|
Monitor:
CM720
4 systems with two display sizes (5” or 7”) and a black or white camera, whose integrated heating as well as IF-illumination and night-vision function provide perfect vision in every weather or lighting condition. With the camera microphones, acoustic instructions can be transferred from the back to the driver and played via the loudspeakers integrated into the display.
Variants from €358.91*
The Full HD AHD cameras deliver razor-sharp images in every situation – thanks to a 2MP HDR CMOS sensor, IP69K protection class and vibration-resistant design. Available with a wider angle of view (180°) as a rear-view camera or with a narrower angle of view (120°) as a camera for the grey water tank.Technical data:Housing colour blackImage sensor 2MP HDR CMOS SENSOR 1/2.92“Image angle 120° or 180°Light sensitivity 0.1 luxResolution 1920 x 1080 pixelsNominal voltage 5 – 24 VTemperature range -20 °C to +70 °CIP protection class IP69KCable length 1 mDimensions W 2.3 x H 2.3 x D 3.26 cm (without housing)Weight 70 g (without housing)
Monitor:
mit

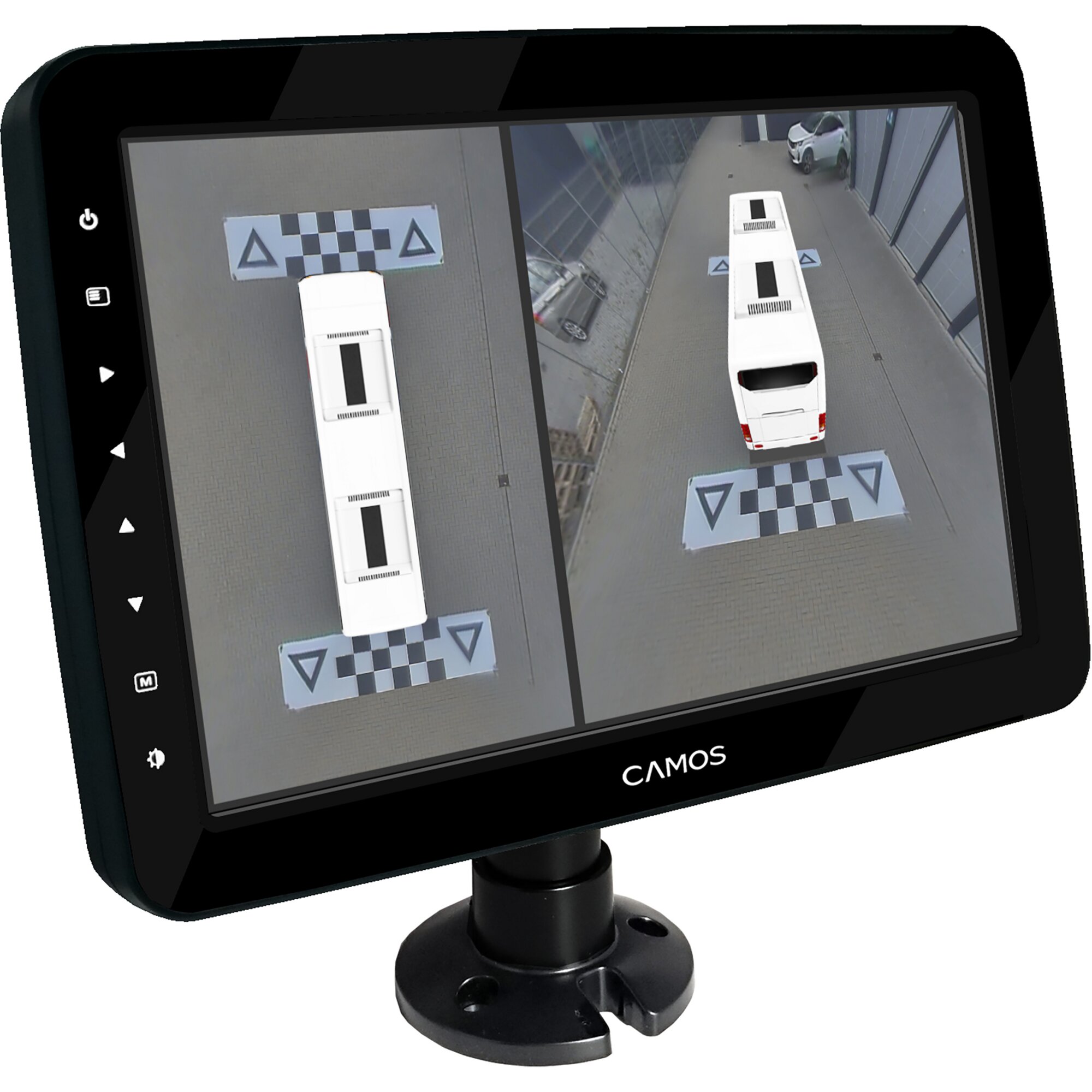

Turning manoeuvres can quickly become complicated, especially when space is limited. With its 4 cameras mounted on the sides of the vehicle, the 360° all-round system provides a perfect overview of the entire vehicle. The bird's eye view in combination with a realistic 3D view of your vehicle ensures that you no longer overlook any obstacles and can park very easily. With the option of integrating up to 4 additional cameras into the view modes, manoeuvring becomes even easier, e.g. with an underfloor camera for the waste water tank or a roof camera for the clearance height.In the variant without a monitor, the image signal is transmitted to an existing monitor or a navigation system; the variant including a monitor is supplied with a 10.1’ LCD monitor.Scope of delivery:4 cameras, control module, remote controlFeatures:360° all-around vision around the vehiclesafe manoeuvring with large vehiclescameras with solid aluminium housingdifferent camera views: front, side, back, mirror or full view in 2D and 3Dreversing view activated by going into reverse, side view upon activating the corresponding turn signalfree selection of the views via keyboard (direct selection of the mirror view requires an external switch which is not included in delivery)Technical data control unit:Voltage 12 – 24 Volt, power intake < 5 mA, output voltage for cameras 5 V, power supply with cameras max. 19 Watt, video input HD 1280 x 720 pixels, video output 1280 x 720 pixels/ 720 x 480 pixels, camera selection by keyboard, going into reverse, turn signal or extra signal, operating temperature -30 – +75 °C, dimensions W 21.6 x H 2.54 x D 13.4 cm.Technical data cameras:
Voltage 5 Volt, power consumption< 220 mA, image sensor ¼” Sony ISX016, viewing angle horizontally 190,5° ± 3° vertically 119.1° ± 3°, resolution 1280 x 720 pixels, image frequency 30 fps, light sensitivity 1 Lux, protection class IP69K, operating temperature -30 – +75 °C, dimensions W 6.1 x
H 4.2 x D 5 cm.
Technical data 10.1“ monitor:
Screen diagonal 10.1“, resolution 1280 x 800 pixels, brightness level 400 cd/m², voltage 12 – 48 V, operating temperature -20 – +70 °C, dimensions W 25.7 x H 17.8 x T 3.7 cm, weight 1.14 kg.
Variants from €1,799.00*
Modell:
CM-49-NAV
The cameras integrated into the Camos backup video sets (technical data: see page 902) are also available individually. Supported by IR illumination, the high-quality image display of the cameras even at night-time provides perfect vision and thus, easy and hassle-free manoeuvring. The Twin cameras enable rear vision while driving and direct vision rear the vehicle upon manoeuvring. The cameras are compatible with navigation systems, moniceiver and already installed displays. Included in delivery are 18 m (13 m with the CM-5180M HD) connection cable from the camera to the display and an adapter to connect it to cinch inputs.
Variants from €197.10*
Modell:

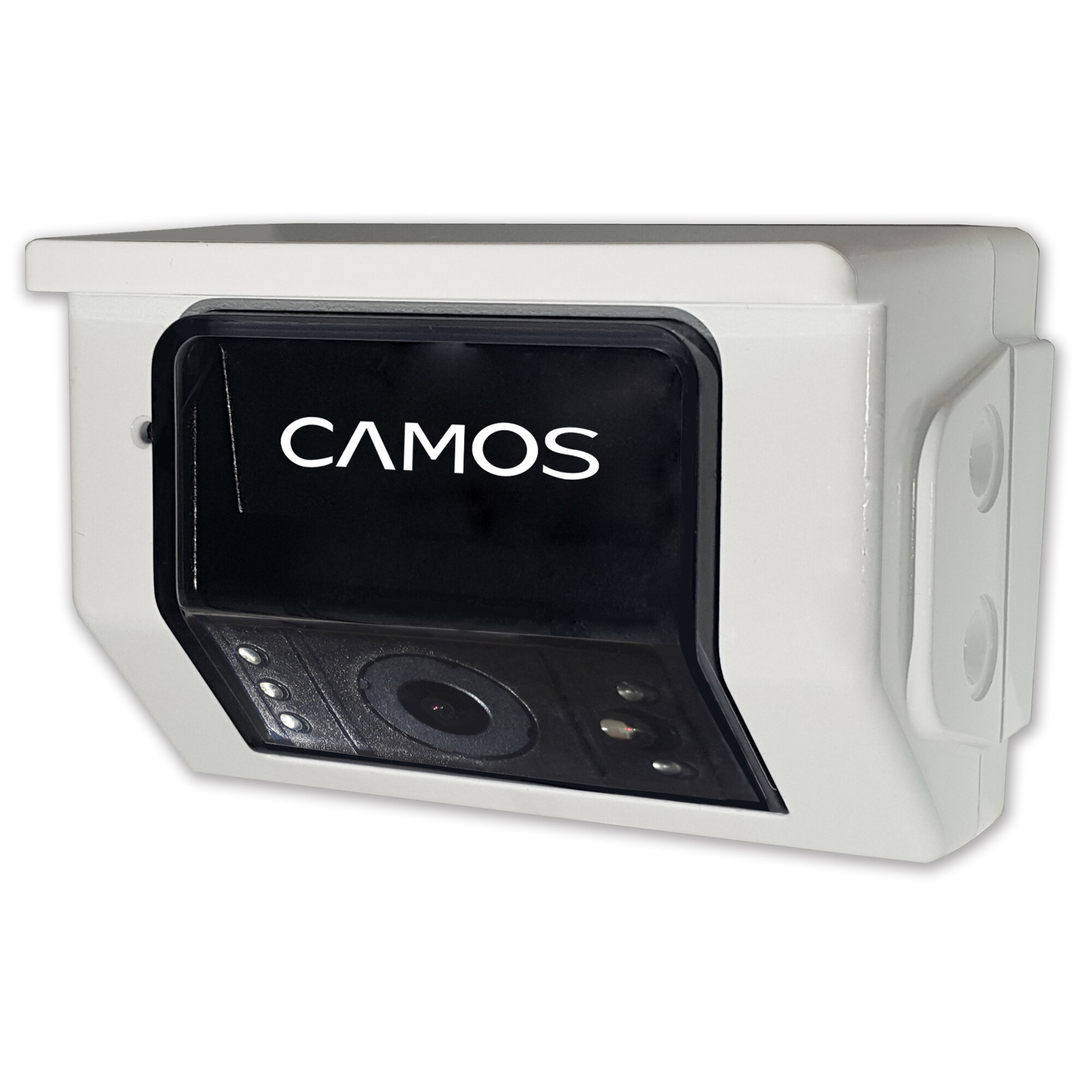

CM-48W-NAV
The cameras integrated into the Camos backup video sets (technical data: see page 902) are also available individually. Supported by IR illumination, the high-quality image display of the cameras even at night-time provides perfect vision and thus, easy and hassle-free manoeuvring. The Twin cameras enable rear vision while driving and direct vision rear the vehicle upon manoeuvring. The cameras are compatible with navigation systems, moniceiver and already installed displays. Included in delivery are 18 m (13 m with the CM-5180M HD) connection cable from the camera to the display and an adapter to connect it to cinch inputs.
Variants from €197.10*
Monitor:
ohne
Turning manoeuvres can quickly become complicated, especially when space is limited. With its 4 cameras mounted on the sides of the vehicle, the 360° all-round system provides a perfect overview of the entire vehicle. The bird's eye view in combination with a realistic 3D view of your vehicle ensures that you no longer overlook any obstacles and can park very easily. With the option of integrating up to 4 additional cameras into the view modes, manoeuvring becomes even easier, e.g. with an underfloor camera for the waste water tank or a roof camera for the clearance height.In the variant without a monitor, the image signal is transmitted to an existing monitor or a navigation system; the variant including a monitor is supplied with a 10.1’ LCD monitor.Scope of delivery:4 cameras, control module, remote controlFeatures:360° all-around vision around the vehiclesafe manoeuvring with large vehiclescameras with solid aluminium housingdifferent camera views: front, side, back, mirror or full view in 2D and 3Dreversing view activated by going into reverse, side view upon activating the corresponding turn signalfree selection of the views via keyboard (direct selection of the mirror view requires an external switch which is not included in delivery)Technical data control unit:Voltage 12 – 24 Volt, power intake < 5 mA, output voltage for cameras 5 V, power supply with cameras max. 19 Watt, video input HD 1280 x 720 pixels, video output 1280 x 720 pixels/ 720 x 480 pixels, camera selection by keyboard, going into reverse, turn signal or extra signal, operating temperature -30 – +75 °C, dimensions W 21.6 x H 2.54 x D 13.4 cm.Technical data cameras:
Voltage 5 Volt, power consumption< 220 mA, image sensor ¼” Sony ISX016, viewing angle horizontally 190,5° ± 3° vertically 119.1° ± 3°, resolution 1280 x 720 pixels, image frequency 30 fps, light sensitivity 1 Lux, protection class IP69K, operating temperature -30 – +75 °C, dimensions W 6.1 x
H 4.2 x D 5 cm.
Technical data 10.1“ monitor:
Screen diagonal 10.1“, resolution 1280 x 800 pixels, brightness level 400 cd/m², voltage 12 – 48 V, operating temperature -20 – +70 °C, dimensions W 25.7 x H 17.8 x T 3.7 cm, weight 1.14 kg.
Content: 2 Stck (€899.50* / 1 Stck)
Monitor:
CM430
The very compact CM-5180M HD camera is an excellent all-rounder: due to software-protected, digital image processing, the camera offers- similar to a twin camera- 2 pictures at the same time- just with one lens. While driving forwards, the view straight back is activated to monitor the backward travel (view angle 95°), engaging into reverse, the camera changes to a broader view (140°), monitoring the direct back of the vehicle. This way, even manoeuvring is child's play .
Modell:

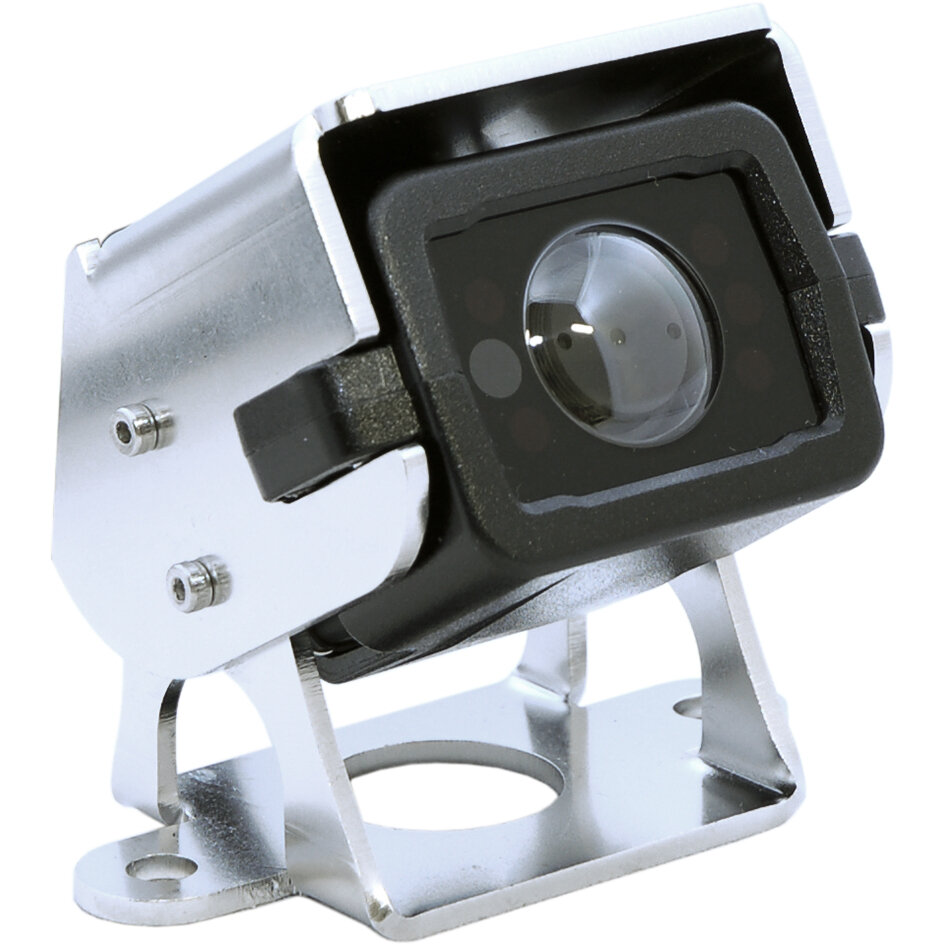

CM-200M HD-NAV
The cameras integrated into the Camos backup video sets (technical data: see page 902) are also available individually. Supported by IR illumination, the high-quality image display of the cameras even at night-time provides perfect vision and thus, easy and hassle-free manoeuvring. The Twin cameras enable rear vision while driving and direct vision rear the vehicle upon manoeuvring. The cameras are compatible with navigation systems, moniceiver and already installed displays. Included in delivery are 18 m (13 m with the CM-5180M HD) connection cable from the camera to the display and an adapter to connect it to cinch inputs.
Modell:

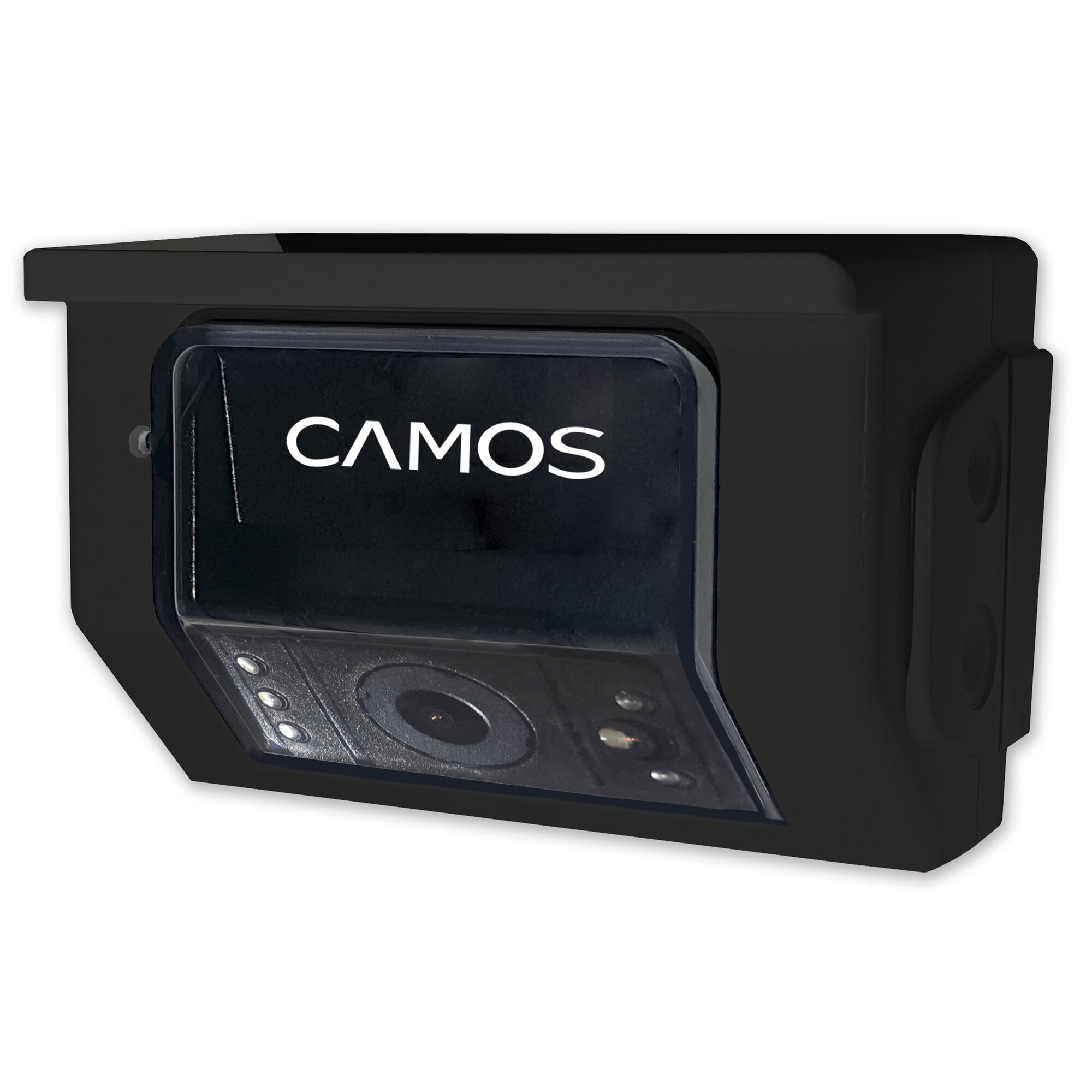

CM-48-NAV
The cameras integrated into the Camos backup video sets (technical data: see page 902) are also available individually. Supported by IR illumination, the high-quality image display of the cameras even at night-time provides perfect vision and thus, easy and hassle-free manoeuvring. The Twin cameras enable rear vision while driving and direct vision rear the vehicle upon manoeuvring. The cameras are compatible with navigation systems, moniceiver and already installed displays. Included in delivery are 18 m (13 m with the CM-5180M HD) connection cable from the camera to the display and an adapter to connect it to cinch inputs.
Variants from €197.10*
Gehäusefarbe:
schwarz
|
Monitor:
CM720
The set includes the CM-49 dual camera, optionally with a black or white housing, and a 5‘ or 7’ monitor. Thanks to the two camera lenses, you can switch between looking straight back and looking directly behind the vehicle. This means you can either watch the traffic behind you when driving forwards or see possible obstacles behind the vehicle when manoeuvring. The heating integrated in the camera as well as the infrared lighting and night vision function ensure a clear view even in bad weather or at night.
Variants from €447.90*
The Full HD AHD cameras deliver razor-sharp images in every situation – thanks to a 2MP HDR CMOS sensor, IP69K protection class and vibration-resistant design. Available with a wider angle of view (180°) as a rear-view camera (item no 82 288) or with a narrower angle of view (120°) as a camera for the grey water tank.Technical data:Housing colour blackImage sensor 2MP HDR CMOS SENSOR 1/2.92“Image angle 120°Light sensitivity 0.1 luxResolution 1920 x 1080 pixelsNominal voltage 5 – 24 VTemperature range -20 °C to +70 °CIP protection class IP69KCable length 1 mDimensions W 2.3 x H 2.3 x D 3.26 cm (without housing)Weight 70 g (without housing)
