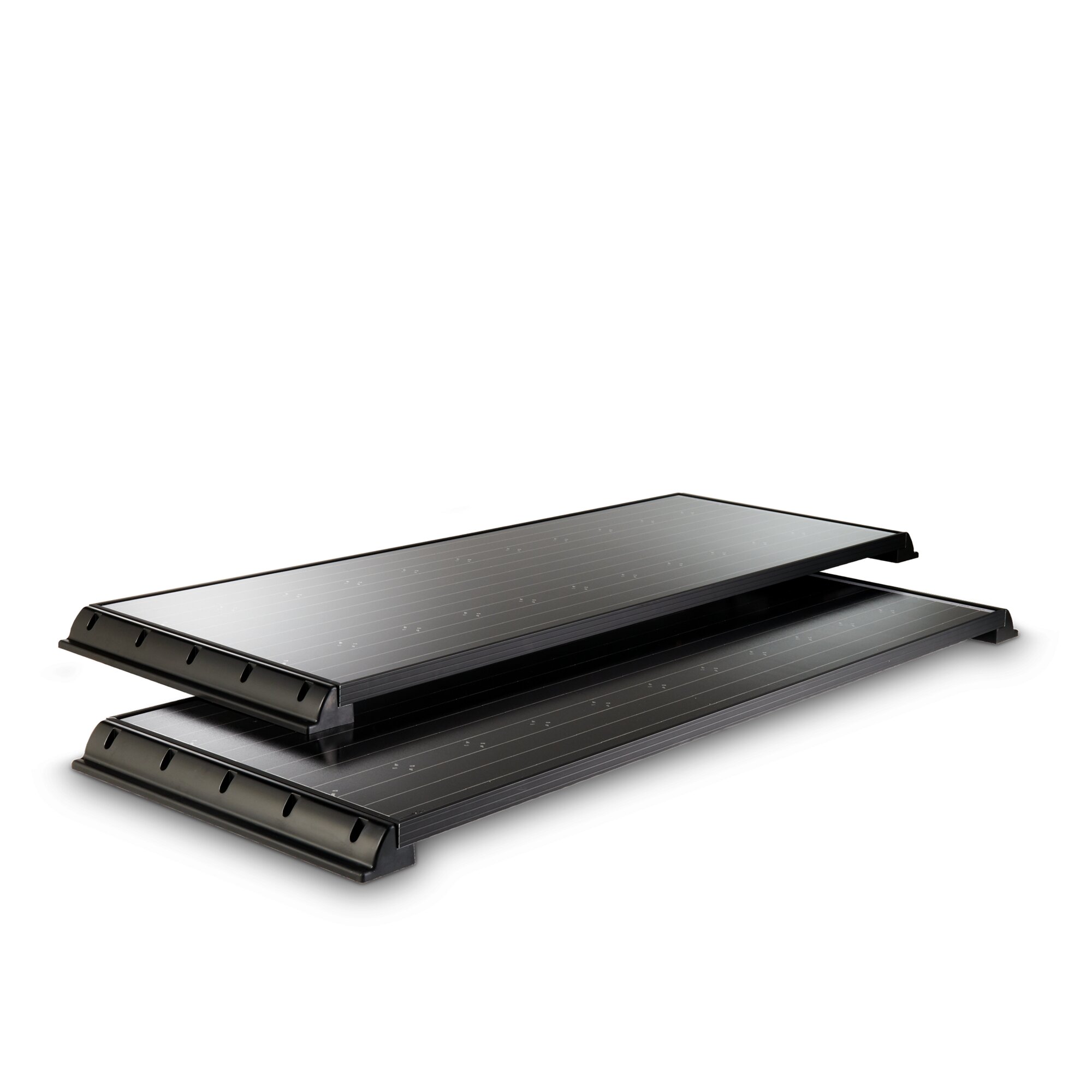

All-In-One Solar System CDS Power Line, 2, 420 Wp
€2,299.95*
% €2,749.00* (16.34% saved) Order by 15.12.2025 11:00 o'clock and you will likely receive your delivery on 20.12.2025.
Product number: FRA323419
Delivery time: 2-5 days
- Free shipping
- Shipping within 24h
- 30 days money back guarantee
- Purchase comfortable on account
Conventional panels are, if at all, equipped with two to three bypass diodes to split the cells into strings. In the Dometic Büttner CDS panels, each of the 44 cells is equipped with its own diode. Even under partial shading, for example from a satellite dish or the branches of a tree, you can still generate energy. Most other panels do not function under these conditions.
The all-in-one solar systems are equipped with: Dometic MPPT solar controllers SC330/SC480 with N-Bus and Bluetooth, roof spoiler set, roof cable routing, cable set.
Properties
| Herstellernummer: | 9620013709 |
|---|---|
| Leerlaufspannung V: | 23,7 V |
| Maße Breite: | 660 mm |
| Maße Höhe: | 66 mm |
| Maße Länge: | 1760 mm |
| Modulanzahl: | 2 |
| Nennleistung Wp: | 420 Wp |
| Nettogewicht: | 37 kg |
| Tagesleistung Wh: | 1850 Wh |
| Typ: | MT 420 CDS |
Data according to manufacturer. Errors and changes reserved.
Login
Skip product gallery
Adhesive Set for Solar Panels
Kunden interessierten sich für
The glue kit contains everything you need for fastening the profiles to the solar panel and for securely attaching them to the roof. Contents: adhesive cleaner, Primer, construction adhesive, stainless steel screws, accessories, user manual. Tested safety: gluing together MT profiles with the MT glue kit has been tested and approved by TÜV!
€85.95*
Skip product gallery Solar Remote Display MT IQ Solar Pro
Zubehör
Universal remote display for all solar systems, showing charging current (A), voltage (V), solar capacity (%) – also as a bar chart – and a resettable power consumption calculation (Ah) on a large LCD multi-display. It shows you how much capacity has been transferred to the battery. This display can be universally set to zero. Thanks to precise induction measurement, the performance can even be determined when several solar controllers (up to 200 A) are being used.Scope of delivery: incl. induction sensor and mounting casing (installation as well as surface mounting possible).
€244.95*
