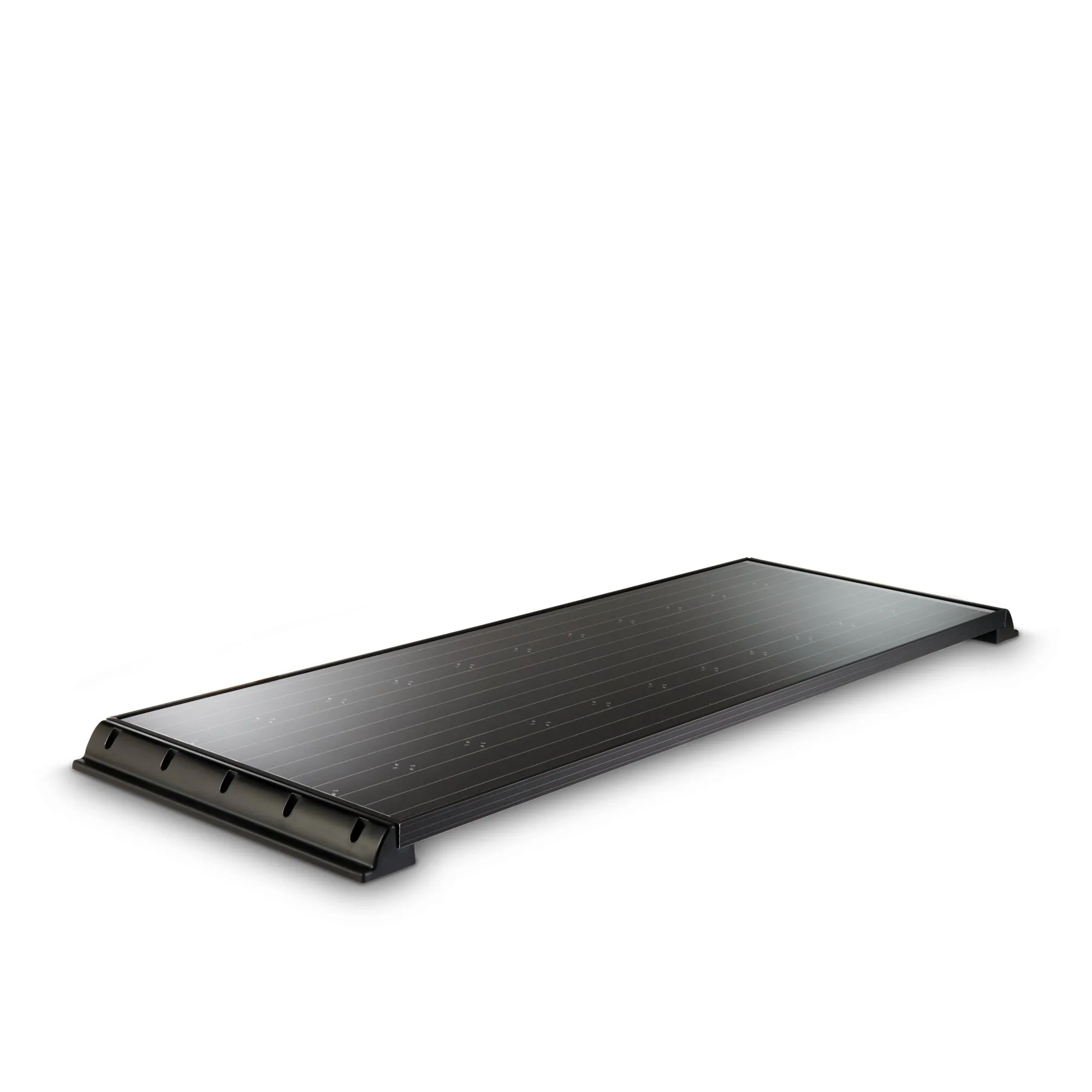

All-In-One Solar System CDS Power Line, 1, 210 Wp
€1,819.00*
Order by tomorrow 11:00 o'clock and you will likely receive your delivery on 22.12.2025.
Product number: FRA323417
Delivery time: 2-5 days
- Free shipping
- Shipping within 24h
- 30 days money back guarantee
- Purchase comfortable on account
Conventional panels are, if at all, equipped with two to three bypass diodes to split the cells into strings. In the Dometic Büttner CDS panels, each of the 44 cells is equipped with its own diode. Even under partial shading, for example from a satellite dish or the branches of a tree, you can still generate energy. Most other panels do not function under these conditions.
The all-in-one solar systems are equipped with: Dometic MPPT solar controllers SC330/SC480 with N-Bus and Bluetooth, roof spoiler set, roof cable routing, cable set.
Properties
| Herstellernummer: | 9620013707 |
|---|---|
| Kurzschlussstrom A: | 12,78 A |
| Leerlaufspannung V: | 23,7 V |
| Maße Breite: | 660 mm |
| Maße Höhe: | 66 mm |
| Maße Länge: | 1760 mm |
| Modulanzahl: | 1 |
| Nennleistung Wp: | 210 Wp |
| Nettogewicht: | 23 kg |
| Tagesleistung Wh: | 920 Wh |
| Typ: | MT 210 CDS |
Data according to manufacturer. Errors and changes reserved.
